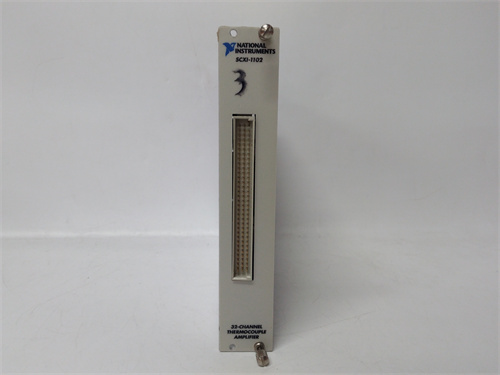

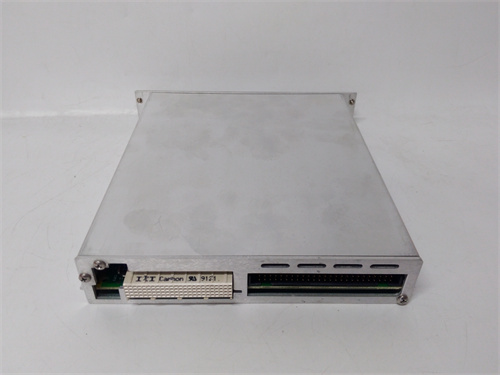

NI SCXI-1102

Description

Product Overview

The NI SCXI-1102 is a versatile, high-density signal conditioning module for the National Instruments SCXI (Signal Conditioning eXtensions for Instrumentation) platform, designed specifically for thermocouple measurements. This module serves as a dedicated, high-performance front end for data acquisition (DAQ) systems, providing the precise amplification, cold junction compensation (CJC), isolation, and filtering required to accurately convert the low-level millivolt signals from thermocouples into clean, measurable voltages. For detailed technical specifications, calibration guides, and configuration software details, please visit the official product resource: NI SCXI-1102. The NI SCXI-1102 is a cornerstone for building reliable and accurate multi-channel temperature measurement systems in test, validation, and industrial monitoring applications, where its specialized design ensures data integrity that general-purpose analog inputs cannot match.

Product Parameters and Specifications

• Function: 32-Channel Thermocouple Input Signal Conditioning Module.
• Channels: Configurable for 32 single-ended thermocouple inputs.
• Thermocouple Types: Supports a wide range of standard thermocouple types (J, K, T, E, R, S, B, N) through software selection.
• Cold Junction Compensation (CJC): Incorporates high-accuracy, isothermal CJC sensing for each channel group, which is critical for correcting the reference junction temperature error inherent in thermocouple measurements.
• Signal Conditioning Features:
  • Programmable Gain Amplifier (PGA): Adjusts gain to match the output range of different thermocouple types.
  • Low-Pass Filtering: Includes software-selectable filters to reject high-frequency noise.
  • Isolation: Provides channel-to-channel and channel-to-bus isolation (e.g., 250V RMS) to break ground loops and protect the system.
• Excitation: Does not provide excitation; it is designed for passive thermocouple sensors.
• Connection: Uses an SCXI-style front connector for high-density screw terminal blocks (e.g., SCXI-1320, SCXI-1328) designed for thermocouple wiring.
• Platform: Requires an SCXI chassis for power and communication, and a DAQ device (e.g., an SCXI-1600 USB module or a PCI/PXI card) to digitize the conditioned signals.

Advantages and Key Features

The NI SCXI-1102 provides significant advantages for professional temperature measurement. Its primary benefit is delivering laboratory-grade accuracy for industrial applications through its dedicated thermocouple conditioning circuitry, including high-precision, per-module CJC, which is far superior to single-sensor CJC found in many systems. The high channel density (32 ch) makes it extremely cost-effective for monitoring temperature profiles across large systems like engines, environmental chambers, or process reactors. The software-selectable thermocouple type and filtering offer tremendous flexibility, allowing a single NI SCXI-1102 module to handle a mix of sensor types within the same chassis. Its isolation ensures stable readings in electrically noisy environments and protects the DAQ system. The module is fully integrated with NI-DAQmx driver software and LabVIEW, enabling straightforward configuration, automatic scaling to temperature, and advanced diagnostic capabilities.

Application Cases in Industry

This module is extensively used in data-intensive thermal testing and monitoring. In Automotive and Aerospace R&D, the SCXI-1102 is used in engine test cells to map exhaust manifold, cylinder head, and turbocharger temperatures with dozens of thermocouples. For Electronics Reliability Testing, it monitors temperature profiles across circuit boards within environmental stress chambers. In Industrial Process Development, it acquires data from multiple reactor vessel and pipe skin thermocouples to validate thermal models. While not a control device like a PLC, it is a key component in Condition Monitoring systems for critical assets like transformers or large bearings, where trending temperature data is used for predictive maintenance.

Comparison with Competing Products

• vs. Universal Analog Input Modules (like the SCXI-1100): The SCXI-1102 is specialized for thermocouples, offering integrated, high-accuracy CJC and automatic linearization that a universal module lacks. For thermocouple applications, it is the superior choice.
• vs. PLC/DCS Thermocouple Input Cards: PLC cards (e.g., Siemens SM331) are designed for real-time control within a closed loop. The NI SCXI-1102 is optimized for high-accuracy data acquisition and monitoring, typically offering better noise rejection, higher channel density, and more flexible configuration, but interfaced to a PC for data logging and analysis.
• vs. Dedicated Temperature Loggers or Data Acquisition Systems: Competing systems from Keysight, Yokogawa, or OMEGA offer similar functionality. The NI SCXI-1102 differentiates itself through its deep integration with the NI software ecosystem (LabVIEW, DIAdem), the modular scalability of the SCXI platform, and its widespread use in automated test systems.

Selection Suggestions and Precautions

• Selection Advice:
  1. Sensor Type Confirmation: Ensure your application exclusively uses thermocouples. The NI SCXI-1102 is not suitable for RTDs, thermistors, or voltage inputs.
  2. System Architecture Planning: Remember this module requires an SCXI Chassis and a DAQ Device. Select a chassis with enough slots and a DAQ device with adequate sampling rate for your total channel count.
  3. Terminal Block Selection: Choose the appropriate screw terminal accessory module (e.g., SCXI-1328 for high-density screw terminals) designed for thermocouples. Using the correct block is essential for maintaining CJC accuracy.
  4. CJC Consideration: For the highest accuracy, understand that the CJC sensor is on the terminal block. Ensure the terminal block is installed in a location with stable, uniform temperature, away from drafts or heat sources.
• Important Precautions:
  1. Thermocouple Wire and Connections: Use the correct thermocouple extension wire matching the sensor type (e.g., Type K wire for a Type K thermocouple). Mismatched wire creates a secondary junction and introduces large errors. Make all connections clean and tight.
  2. Isothermal Block: The terminal block is designed as an isothermal block. Do not modify it or attach unrelated wires to it, as this can create temperature gradients and degrade CJC accuracy.
  3. Noise and Grounding: Route thermocouple wires away from AC power lines and motor drives. Follow guidelines for grounding the shield of thermocouple cables, typically at the SCXI chassis end only.
  4. Calibration: For critical measurements, the entire measurement chain (thermocouple, wire, SCXI-1102, DAQ device) should be calibrated periodically against a traceable temperature standard.
