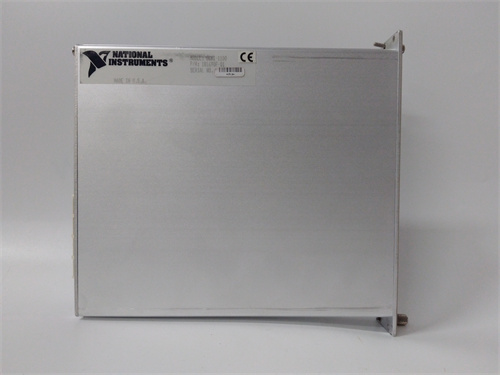

NI SCXI-1100

Description

NI SCXI-1100 Product Overview

NI SCXI-1100 is a high-performance 32-channel analog input module designed for National Instruments’ SCXI (Signal Conditioning eXtensions for Instrumentation) platform. As a fundamental building block in large-scale data acquisition systems, this module provides comprehensive signal conditioning and multiplexing capabilities for a wide range of analog sensors and transducers. The NI SCXI-1100 is engineered to interface directly with thermocouples, millivolt sources, and high-voltage signals, making it an extremely versatile front-end solution. The NI SCXI-1100 is widely recognized in the test and measurement industry for its reliability, accuracy, and flexible configuration options. When building or expanding high-channel-count data acquisition systems, the NI SCXI-1100 provides the signal conditioning performance required for precise measurements.

Product Parameters and Technical Specifications

The technical specifications of the NI SCXI-1100 highlight its capabilities as a comprehensive analog signal conditioning solution.

• Model Number: SCXI-1100
• Series: SCXI (Signal Conditioning eXtensions for Instrumentation)
• Product Type: 32-Channel Analog Input Module
• Input Channels: 32 differential or 64 single-ended (configurable via software or jumpers)
• Input Voltage Ranges: Multiple programmable ranges including ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±100 mV, ±50 mV, ±25 mV, and ±12.5 mV
• Amplification: Programmable gains from 1 to 2000, allowing precise scaling for low-level sensor signals
• Filtering: Includes 4 Hz low-pass filters for each channel to reject high-frequency noise
• Cold-Junction Compensation: Built-in temperature sensor for accurate thermocouple measurements
• Sampling Rate: Supports multiplexed scanning at rates up to 333 kS/s when paired with compatible DAQ devices
• Isolation: 250 Vrms channel-to-channel and channel-to-backplane isolation for protection against ground loops and voltage spikes

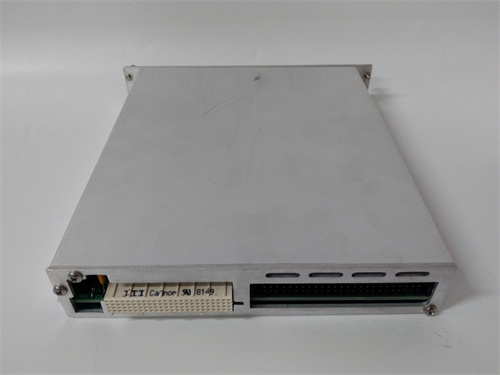

• Connector: Front-panel 96-pin male DIN connector for field wiring via compatible terminal blocks

Advantages and Core Features

The NI SCXI-1100 offers distinct advantages for high-performance data acquisition applications. Its primary feature is the exceptional flexibility provided by programmable gains and input ranges, allowing a single module to handle everything from millivolt-level thermocouple signals to high-level voltage inputs. The built-in 4 Hz low-pass filters eliminate noise that would otherwise corrupt measurements, ensuring clean, accurate data even in electrically noisy industrial environments. Furthermore, the NI SCXI-1100 includes cold-junction compensation circuitry specifically designed for thermocouple measurements, simplifying temperature monitoring applications. The module’s high channel density (32 channels in a single slot) maximizes system capacity within the SCXI chassis, reducing overall system cost per channel. With its robust isolation, the SCXI-1100 protects expensive DAQ hardware from damage due to ground loops or accidental overvoltage conditions. The NI SCXI-1100 also features software-configurable architecture, eliminating the need for manual switch settings and simplifying system reconfiguration.

Application Cases in Key Industries

The NI SCXI-1100 is deployed across diverse industries where high-channel-count, accurate data acquisition is essential.

• Aerospace Testing: Used in structural test applications monitoring hundreds of strain gauges and thermocouples on airframes during fatigue testing.
• Automotive Validation: Employed in engine test cells to acquire temperature, pressure, and vibration data from dozens of sensors during performance mapping.
• Research Laboratories: Integrated into experimental setups requiring simultaneous monitoring of multiple physical parameters from custom sensors.
• Environmental Monitoring: Deployed in weather stations and climate research facilities to acquire data from numerous temperature, humidity, and pressure sensors.
• Industrial Condition Monitoring: Utilized in predictive maintenance programs to monitor vibration and temperature on rotating machinery across large facilities.

Competitive Comparison

When compared to competing signal conditioning platforms from manufacturers like Keysight (34980A) or Omega (OMB-DAQ-SC series), the NI SCXI-1100 offers distinct advantages within the National Instruments ecosystem. Versus modular data acquisition systems from other vendors, the NI SCXI-1100 provides superior integration with NI’s LabVIEW software, enabling rapid application development and seamless data analysis. While standalone data loggers may offer simpler setup, the SCXI-1100 delivers higher channel counts, faster scanning rates, and greater flexibility in signal conditioning. Compared to newer NI platforms like CompactDAQ, the NI SCXI-1100 offers a cost-effective solution for very large channel-count applications where the extensive SCXI infrastructure already exists. The module’s software-configurable architecture gives it an ease-of-use advantage over older systems requiring manual jumper configuration for each channel.

Selection Suggestions and Precautions

When selecting or deploying an NI SCXI-1100, several factors require careful consideration.

1. Chassis Compatibility: Verify that the NI SCXI-1100 is compatible with your SCXI chassis model and that adequate power and slot capacity are available.
2. Terminal Block Selection: Choose the appropriate terminal block for your application (e.g., SCXI-1300 for general-purpose, SCXI-1303 for high-accuracy thermocouple measurements) as the SCXI-1100 requires an external wiring accessory.
3. DAQ Hardware Compatibility: Confirm that your DAQ device supports the NI SCXI-1100 and that cable connections (e.g., SH68-68-EP cable) are correctly specified.
4. Signal Range Verification: Ensure your sensor output ranges fall within the programmable ranges of the NI SCXI-1100 to avoid saturation or under-ranging.
5. Software Driver Support: Verify that your version of NI-DAQmx or Legacy NI-DAQ supports the SCXI-1100 module for your operating system.
6. Calibration Status: Check the calibration status of the NI SCXI-1100 and schedule recalibration if required for your measurement accuracy needs.
