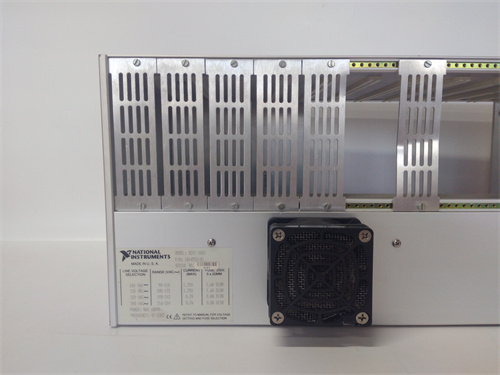

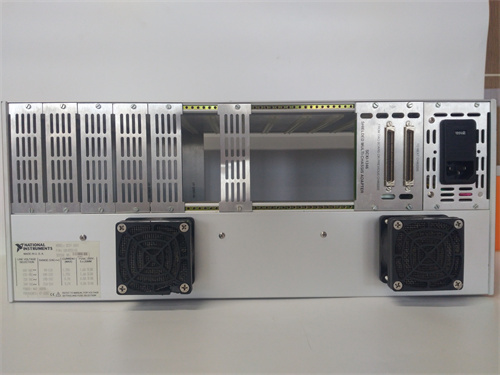

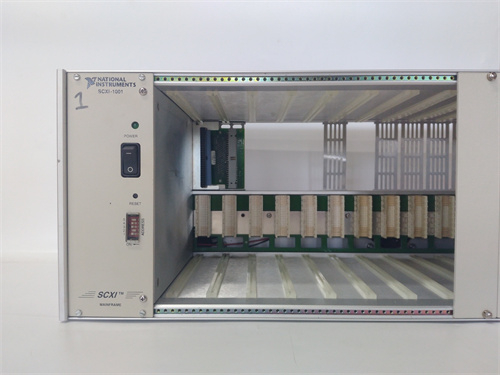

NI SCXI-1001

Description

Product Overview and Description

The NI SCXI-1001 is a 4-slot chassis that serves as the backbone for National Instruments’ SCXI (Signal Conditioning eXtensions for Instrumentation) system. This rugged enclosure is designed to house up to four SCXI signal conditioning modules, providing them with power, cooling, and a communication path to a data acquisition (DAQ) device. The NI SCXI-1001 is the foundation upon which high-channel-count, high-performance measurement systems are built, enabling users to condition and acquire signals from a wide variety of sensors including thermocouples, strain gauges, RTDs, and voltage sources.

Engineered for both laboratory and industrial environments, the NI SCXI-1001 chassis is built with a robust metal enclosure to shield sensitive measurements from electrical noise. It features a built-in power supply and a low-noise fan for cooling, ensuring stable operating conditions for the installed modules. The NI SCXI-1001 connects to a DAQ device via a shielded cable, allowing for accurate and reliable data transfer to a PC for analysis in software like LabVIEW. The use of a genuine NI SCXI-1001 chassis guarantees the integrity of your measurement system and provides a solid platform for future expansion.

Technical Parameters

Based on the analysis of National Instruments SCXI chassis specifications, the NI SCXI-1001 possesses the following key characteristics:

• Device Type: 4-Slot SCXI Chassis.
• Number of Slots: 4 (accommodates any combination of SCXI analog input, analog output, digital I/O, or switching modules).
• Power Supply: Built-in universal power supply (100-240 VAC, 50-60 Hz) providing power to all installed modules.
• Cooling: Integrated low-noise fan for forced-air cooling, ensuring modules operate within temperature specifications.
• Communication: Connects to a DAQ device via a shielded SCXI cable (e.g., SH68-68-EP cable) to an M or E Series DAQ pad, or via a controller for remote operation.
• Mounting: Can be placed on a bench top or mounted in a standard 19-inch rack using optional rack-mount kits.
• Dimensions: Standard 4U height for easy integration into test racks.
• Operating Temperature: 0 to 50 °C.
• Part Number: NI SCXI-1001 is the specific model identifier for this 4-slot chassis.

Advantages and Key Features

The NI SCXI-1001 offers several advantages that make it a preferred platform for building measurement systems:

• Modular and Scalable: The NI SCXI-1001 provides a flexible platform where you can mix and match up to four different SCXI modules to handle diverse signal types within a single chassis. Multiple chassis can be synchronized for very high channel counts.
• High-Performance Signal Conditioning: By housing modules in the SCXI-1001, you gain access to NI’s high-quality signal conditioning, which includes amplification, filtering, and isolation—essential for accurate measurements in noisy environments.
• Rugged and Reliable: The robust metal construction and integrated cooling fan of the NI SCXI-1001 ensure reliable operation and protect sensitive modules from environmental factors and overheating.
• Simplified System Integration: The NI SCXI-1001 is designed for seamless integration with NI DAQ hardware and LabVIEW software, providing a complete, end-to-end measurement solution from sensor to analysis.
• Proven Platform: The SCXI platform, centered around chassis like the NI SCXI-1001, has been a trusted workhorse in test and measurement for decades, with a vast installed base and extensive software support.

Application Cases in Key Industries

The NI SCXI-1001 is used extensively in a wide variety of measurement and automation applications:

• Aerospace and Defense: In structural test applications, multiple NI SCXI-1001 chassis housing strain gauge modules are used to monitor stress on airframes and components during ground testing.
• Automotive Testing: On engine test stands, an NI SCXI-1001 can house thermocouple modules for temperature measurement and voltage input modules for pressure sensors, providing comprehensive data for performance analysis.
• Industrial Research: In material science laboratories, the SCXI-1001 chassis provides the signal conditioning needed for precise measurements from tensile testing machines, environmental chambers, and other research equipment.
• Power Electronics Testing: For testing power supplies and inverters, the NI SCXI-1001 can house high-voltage attenuation modules and current measurement modules, ensuring safe and accurate data acquisition.
• Manufacturing Test: In production environments, the NI SCXI-1001 provides a rugged and reliable platform for end-of-line functional test systems, ensuring product quality.

Comparison with Competitors

In the modular signal conditioning and data acquisition market, NI’s primary competitors include Keysight Technologies, Data Translation, and Measurement Computing.

• NI SCXI-1001 vs. Keysight Modular Chassis: Keysight offers high-end modular systems like the 34980A. The NI SCXI-1001 combined with LabVIEW provides a more software-centric, flexible approach, often preferred for complex, custom applications requiring tight integration with analysis and control.
• NI SCXI-1001 vs. Data Translation Modules: Data Translation offers more compact USB-based systems. The NI SCXI-1001 provides a more expandable and rugged platform with superior signal conditioning capabilities, essential for high-accuracy measurements with challenging sensors like strain gauges.
• NI SCXI-1001 vs. Measurement Computing: Measurement Computing offers economical solutions. The NI SCXI-1001 platform justifies its position with higher-quality signal conditioning, better noise rejection, and the immense software ecosystem of NI LabVIEW.

Selection Recommendations and Precautions

1. Chassis Size Selection: The NI SCXI-1001 is the 4-slot version. NI also offers the SCXI-1000 (12-slot) for larger systems. Choose based on your current and anticipated future channel count.
2. Module Compatibility: Verify that your SCXI modules are compatible with the NI SCXI-1001 (all standard SCXI modules are compatible).
3. DAQ Device Compatibility: Ensure you have the correct cable and compatible DAQ device (e.g., PCIe-6323, USB-6281) to connect to the NI SCXI-1001.
4. Rack Mounting: If installing in a 19-inch rack, purchase the appropriate rack-mount kit for the NI SCXI-1001 to ensure proper fit and support.
5. Cooling and Ventilation: When installing the NI SCXI-1001 in an enclosed rack, ensure adequate ventilation around the chassis to prevent overheating. Do not block the fan intake or exhaust.
