NI SCXI-1001

Description

Product Description

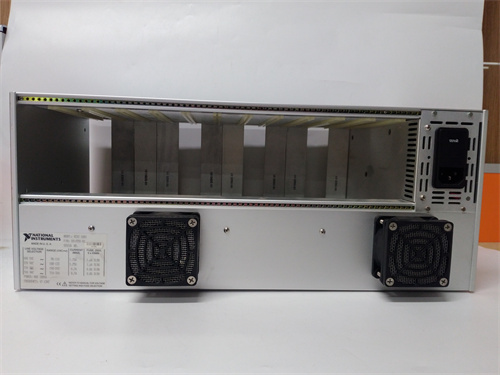

The NI SCXI-1001 is a high-performance, 4-slot chassis or mainframe that serves as the foundational hardware platform for National Instruments’ SCXI (Signal Conditioning eXtensions for Instrumentation) modular signal conditioning system. This chassis provides the regulated power, timing, and communication infrastructure required for SCXI functional modules to operate. The NI SCXI-1001 acts as a robust interface between sensitive sensors and data acquisition (DAQ) hardware, enabling precise measurement of real-world signals such as voltage, current, temperature, and strain in electrically noisy industrial environments. For comprehensive technical specifications, user manuals, and configuration guides, the essential resource is the official National Instruments product page for the NI SCXI-1001. By housing specialized conditioning modules, the SCXI-1001 significantly extends the capabilities of a DAQ system, ensuring accurate and reliable data acquisition. Its rugged design is tailored for benchtop or rack-mount installation in test, measurement, and industrial monitoring applications.

Product Parameters

• Manufacturer / Brand: National Instruments (NI).
• Model: SCXI-1001.
• Type: 4-Slot SCXI Chassis / Mainframe.
• Power Supply: Integrated, line-powered supply providing regulated +5 VDC, ±12 VDC, and ±15 VDC to all installed SCXI modules.
• Communication Interface: Connects to a host computer via an external DAQ interface card (e.g., NI PCI-6040E, PXI-6040E) using a shielded 68-pin SCXI cable.
• Timing and Control: Includes a 1 MHz system clock and a Real-Time System Integration (RTSI) bus for synchronizing multiple chassis or with other NI hardware.
• Expansion Capability: Can be daisy-chained with other SCXI chassis using the RTSI bus for building larger systems.
• Form Factor: Compact benchtop/rack-mount enclosure. Includes mounting brackets for standard 19-inch rack installation.
• Operating Environment: Designed for controlled industrial or laboratory environments (0 °C to 50 °C).

Advantages and Features

• Modular Flexibility: The 4-sot design allows engineers to mix and match different SCXI signal conditioning modules (for analog I/O, digital I/O, multiplexing, isolation) to create a custom measurement system tailored to specific sensor types.
• Superior Signal Integrity: Provides a shielded, centralized platform that isolates sensitive signal conditioning circuitry from noise generated by the host computer and the industrial environment, leading to more accurate measurements.
• High-Density Channel Count: By using multiplexing modules (e.g., SCXI-1100) within the SCXI-1001, a single DAQ device can accurately measure hundreds of channels.
• Integrated System Timing: The built-in RTSI bus enables precise synchronization of multiple measurement and control actions across the chassis and with other hardware, which is critical for coordinated test sequences.
• Robust and Reliable: Designed for continuous operation in demanding test and monitoring applications, offering a stable platform for long-term data acquisition projects.

Application Cases in Industry

• Automotive Test Benches: The NI SCXI-1001 chassis holds thermocouple and voltage conditioning modules to monitor temperatures and signals from engines and ECUs during durability testing.
• Aerospace Structural Testing: Used to condition strain gauge and accelerometer signals from aircraft wings or components during static and fatigue testing.
• Industrial Machine Monitoring: Hosts isolated analog input modules to safely measure motor currents and vibration sensor outputs from production machinery for predictive maintenance.
• Power Electronics Validation: Conditions high-voltage and current signals from inverters and converters for precise efficiency and performance analysis in an R&D lab.
• Environmental Chambers: Rack-mounted alongside other equipment to monitor multiple temperature and humidity sensors during product reliability testing.

Comparison with Competing Products

Competing products include modular signal conditioning chassis from Keysight (34901A) and DEWESoft systems. The NI SCXI-1001 differentiates itself through its deep integration with the broader NI ecosystem (LabVIEW, DAQmx driver software) and its high-performance synchronization capabilities via the RTSI bus. Compared to a simple terminal block or a generic signal conditioner, the SCXI-1001 offers a programmable, software-configurable, and scalable platform. Its primary competitor in the modular market is the more modern NI CompactDAQ platform. The SCXI-1001 is the legacy, higher-performance, and more rugged predecessor, offering greater channel density and isolation specifications for demanding applications where CompactDAQ may be insufficient.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Choose the NI SCXI-1001 when you need to condition a variety of sensor types with high accuracy, require channel counts beyond a standard DAQ card, or need robust signal isolation in an industrial setting.
  2. Plan the system by selecting the necessary SCXI functional modules (e.g., SCXI-1102, SCXI-1125) first, ensuring they fit the 4-slot capacity of the SCXI-1001.
  3. Ensure you have a compatible NI DAQ interface card for your computer (PCI, PXI, or PCMCIA) and the correct 68-pin shielded cable to connect it to the chassis.
• Precautions:
  1. System Compatibility: The SCXI-1001 is a legacy product. Verify driver support (NI-DAQmx) for your operating system and that your chosen SCXI modules are compatible with the chassis and your DAQ card.

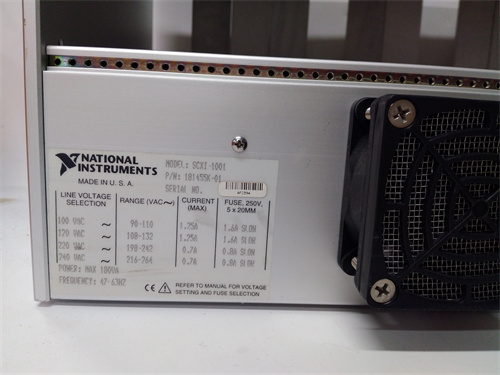

  2. Power Requirements: Ensure the AC mains power available matches the chassis’s requirements (typically 100-240 VAC). Do not overload the chassis’s total power budget for all four slots.
  3. Cable Length and Shielding: Use only NI-specified or high-quality shielded 68-pin cables. Keep cable lengths as short as possible and route them away from sources of electrical noise to maintain signal integrity.
  4. Slot Configuration: Some SCXI modules have specific slot requirements (e.g., need for a timing module in Slot 1). Always consult the installation guide for each module.
  5. Software Configuration: Proper configuration in NI Measurement & Automation Explorer (MAX) and LabVIEW is essential. Each module’s gain, filtering, and excitation settings must be correctly configured in software. Acquire the chassis and modules from reputable sources to ensure they are genuine NI products.
