NI PXI-8423

Description

Product Overview and Description

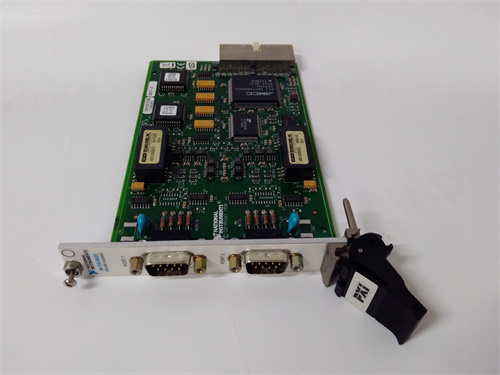

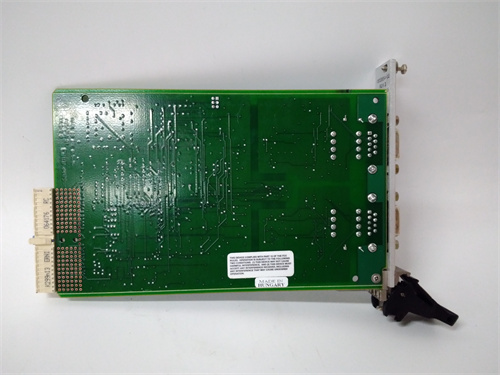

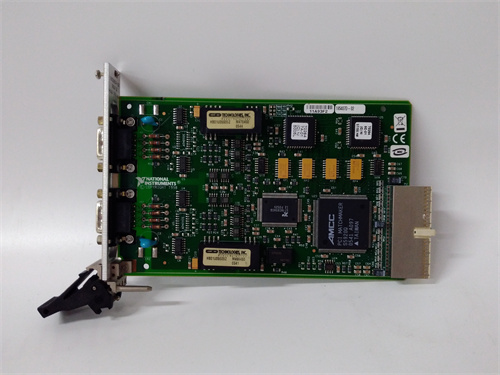

The NI PXI-8423 is a high-performance serial communication interface module designed for the PXI (PCI eXtensions for Instrumentation) platform, National Instruments’ rugged, modular instrumentation and automation system. This device provides multiple RS-485 serial ports for industrial communication, enabling PXI systems to interface with a wide range of industrial devices such as PLCs, drives, sensors, and other automation equipment. The NI PXI-8423 is a critical component for applications requiring reliable, multi-point serial communication in test, measurement, and industrial control systems.

The PXI-8423 module is engineered for operation in both laboratory and industrial environments, featuring robust construction, high-speed communication, and comprehensive driver support. It installs directly into a PXI chassis and is fully compatible with NI’s software platforms including LabVIEW, LabWindows/CVI, and Measurement Studio. The use of the NI PXI-8423 enables seamless integration of serial communication capabilities into PXI-based test and automation systems, providing reliable data exchange with industrial field devices.

Technical Parameters

Based on the analysis of National Instruments PXI serial interface documentation, the NI PXI-8423 possesses the following key characteristics:

• Device Type: PXI Serial Communication Interface Module.
• Number of Ports: Typically 4 or 8 independent RS-485 serial ports.
• Interface Standard: RS-485 (differential, multi-drop capable).
• Maximum Baud Rate: Supports high baud rates up to 1 Mb/s or higher for fast data transfer.
• Isolation: May feature 3000 VDC isolation between ports and the PXI backplane for protection against ground loops and electrical noise.
• Communication Modes: Supports 2-wire and 4-wire RS-485 configurations for half-duplex and full-duplex communication.
• Driver Support: Compatible with NI-Serial driver software for Windows and real-time operating systems (LabVIEW Real-Time).
• Data Transfer: High-performance data transfer with onboard FIFO buffers to reduce CPU overhead.
• Connectors: Front-panel D-Sub or terminal block connectors for easy field wiring.
• Compatibility: Works with all PXI and CompactPCI chassis meeting the PXI specification.
• Part Number: NI PXI-8423 is the specific model identifier for this RS-485 serial interface module.

Advantages and Key Features

The NI PXI-8423 offers several key advantages for industrial communication applications:

• Multi-Port Capability: With multiple RS-485 ports on a single module, the PXI-8423 allows a single PXI system to communicate with numerous industrial devices simultaneously.
• High-Speed Communication: The module supports high baud rates, enabling fast data transfer with modern industrial equipment.
• Robust RS-485 Interface: RS-485’s differential signaling provides excellent noise immunity for reliable communication in electrically noisy industrial environments.
• Isolation: If equipped with isolation, the NI PXI-8423 protects the PXI system from ground loops and voltage transients that can occur in industrial installations.
• Seamless Software Integration: Full support in NI’s software platforms, particularly LabVIEW, makes the PXI-8423 easy to program and integrate into complex test and automation applications.

Application Cases in Key Industries

The NI PXI-8423 is used in a wide variety of applications across multiple industries:

• Industrial Automation: The PXI-8423 connects PXI-based control systems to PLCs, drives, and remote I/O using Modbus RTU or other serial protocols.
• Manufacturing Test: In production test systems, the module communicates with instruments and devices that use RS-485 interfaces for control and data acquisition.
• Building Automation: The NI PXI-8423 interfaces with HVAC controllers, lighting systems, and energy meters using BACnet MS/TP or other building automation protocols.
• Power and Energy: The module communicates with protective relays, power meters, and RTUs in substation automation and SCADA applications.
• Research and Development: In laboratory settings, the PXI-8423 provides a flexible interface for prototyping serial communication protocols and testing industrial devices.

Comparison with Competitors

In the PXI serial communication module market, NI’s primary competitors include ADLINK, Pickering Interfaces, and other PXI vendors.

• NI PXI-8423 vs. ADLINK Serial Modules: ADLINK offers competitive PXI serial modules. The PXI-8423 benefits from NI’s extensive software ecosystem and driver support, particularly for users already invested in NI’s platform.
• NI PXI-8423 vs. Pickering Interfaces: Pickering offers a wide range of PXI serial modules. The NI PXI-8423 provides seamless integration with NI’s LabVIEW and other NI software tools, simplifying development.
• NI PXI-8423 vs. Generic Serial Converters: While external USB-to-RS-485 converters can be used, the NI PXI-8423 offers better integration, higher performance, and multi-port capability within the PXI chassis.

Selection Recommendations and Precautions

1. System Compatibility: The NI PXI-8423 is designed for PXI systems. Verify compatibility with your PXI chassis and controller before ordering.
2. Port Count and Configuration: Determine how many RS-485 ports you need and whether 2-wire or 4-wire configuration is required for your application.
3. Isolation Requirements: Consider whether isolated ports are necessary for your application to protect against ground loops and electrical noise.
4. Software and Drivers: Ensure you have the appropriate NI-Serial drivers and development software (e.g., LabVIEW) for your operating system.
5. Termination and Wiring: RS-485 networks require proper termination. Follow standard RS-485 wiring practices and ensure proper termination is implemented for reliable communication with the NI PXI-8423.
