Description

The MOTOROLA MVME5500-0163 is a specific model of the MVME5500 series, a family of powerful and high-performance embedded computing systems. This series is commonly used in industrial, aerospace, military, and telecommunications applications.

Product Name:

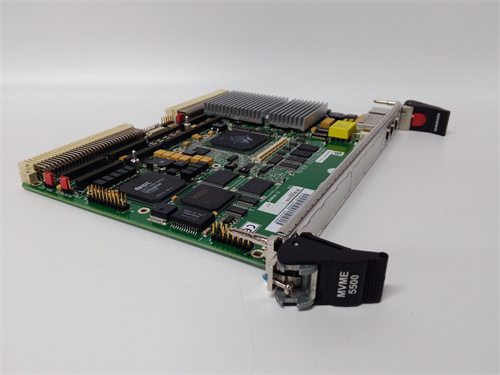

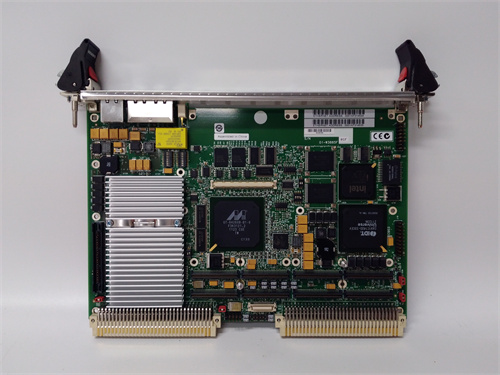

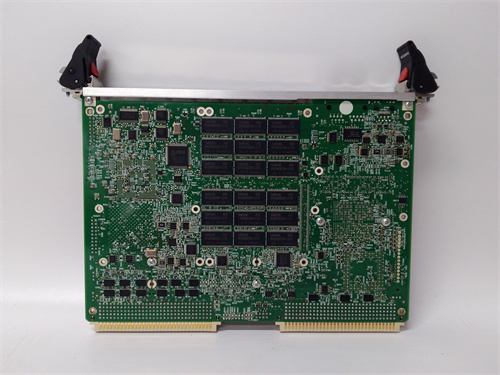

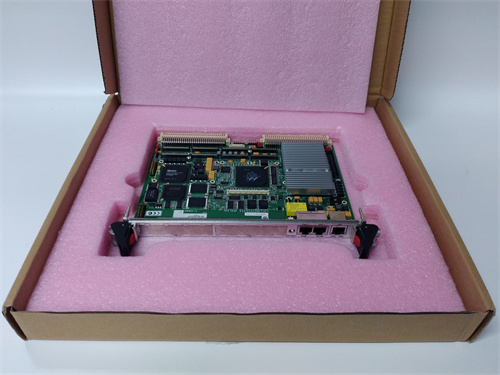

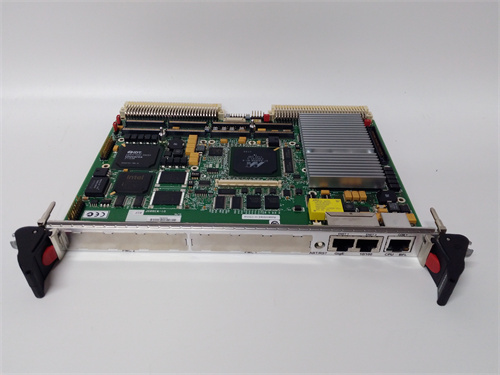

MOTOROLA MVME5500-0163 Module

Product Description:

The MVME5500-0163 is a rugged, high-performance embedded system designed for mission-critical applications where reliability and computational power are essential. It typically operates in environments requiring real-time performance, fault tolerance, and integration of multiple communication protocols. The MVME5500 series is based on the PowerPC architecture and typically features multiple I/O and processing capabilities, making it suitable for use in embedded computing systems, telecom infrastructure, and defense applications.

Key Features and Product Specifications:

1. Processor:
   • Processor Type: PowerPC (often Freescale, now NXP)
   • CPU Model: Typically includes a PPC 7448 or PPC 750 processor, but varies depending on specific configuration.
   • Processor Speed: Typically ranges from 500 MHz to 1.5 GHz, depending on the specific model.
2. Memory:
   • RAM: 512 MB to 2 GB DDR2 RAM
   • Flash Memory: 32 MB to 128 MB Flash (non-volatile storage)
3. Expansion and Slots:
   • PCI and PMC Slots: Multiple PCI-X and PMC expansion slots for I/O and additional peripheral integration.
   • Ethernet Ports: Dual 10/100/1000 Ethernet ports for network communication.
   • Serial Ports: Typically 2-4 serial ports (RS-232, RS-422).
   • SATA/IDE: Support for storage interfaces like SATA/IDE for hard drives or solid-state drives.
4. Communication Protocols:
   • Ethernet for network connectivity
   • Serial communications via RS-232, RS-422
   • VMEbus Interface: Support for VME and VPX standards.
   • USB Ports: For external device connections.
5. Operating System Support:
   • Typically supports VxWorks, Linux, or RTOS environments, ideal for real-time applications.
   • Compatible with many embedded software tools and environments.
6. Power Supply:
   • Usually operates on a standard DC input, typically 12V to 28V (varies based on specific system configuration).
7. Enclosure:
   • Designed for rugged environments, the MVME5500 typically comes in a 1U or 3U VME chassis for integration into larger systems.
   • Options for fan-less or fan-cooled designs to suit various environmental conditions.
8. Environmental:
   • Temperature: Typically ranges from -40°C to +70°C operating temperature.
   • Humidity: Designed for industrial-grade humidity tolerance.
   • Shock/Vibration: Suitable for industrial, aerospace, and military applications with appropriate shock/vibration resistance.
9. I/O Support:
   • I/O flexibility with support for a range of serial, USB, and Ethernet interfaces.
10. Bus Architecture:
    • VMEbus: As a popular bus architecture in embedded systems, the MVME5500 series can be integrated into large systems where VME-based communication is required.

Product Use:

The MVME5500-0163 is used in applications where high processing power, real-time capabilities, and reliability are critical. Common use cases include:

• Industrial Automation: Controls and monitors machinery, sensors, and data acquisition systems.
• Telecommunications: Acts as a platform for network equipment or embedded telecom devices.
• Military and Aerospace: Employed in mission-critical systems such as radar, avionics, or battlefield communications.
• Transportation and Logistics: Used for embedded computing in train control systems, transportation management systems, and logistics tracking.
• Test and Measurement Equipment: For scientific and industrial applications requiring high-throughput data processing.
