Motorola MVME5110-2261

Motorola MVME5110-2261 is a 6U VME single – board computer (SBC) under the PowerPlus II architecture, powered by a 500MHz MPC7410 PowerPC processor, tailored for mission – critical industrial control, defense/aerospace, and medical systems requiring high memory throughput and VMEbus legacy compatibility.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

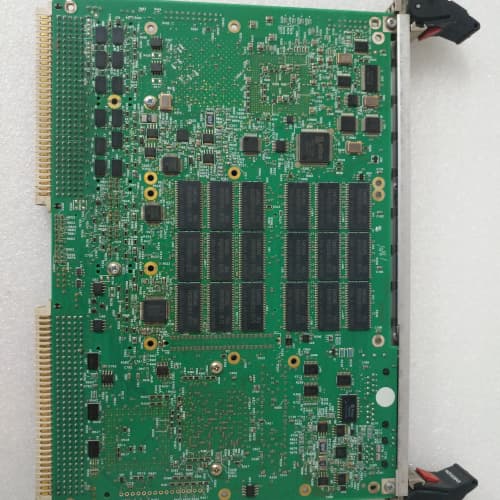

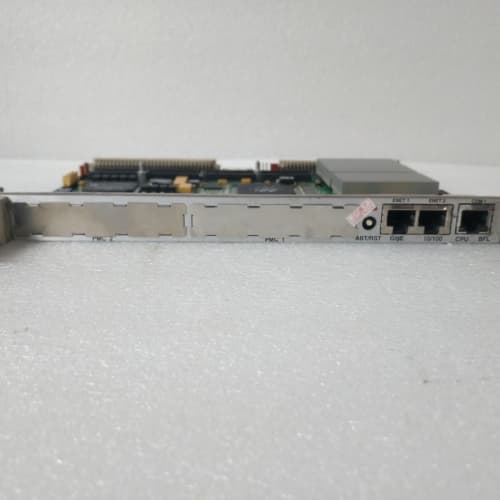

Motorola MVME5110-2261 is a 6U VME single – board computer (SBC) under the PowerPlus II architecture, powered by a 500MHz MPC7410 PowerPC processor, tailored for mission – critical industrial control, defense/aerospace, and medical systems requiring high memory throughput and VMEbus legacy compatibility. Motorola MVME5110-2261 integrates a 100MHz front – side bus, up to 2MB backside L2 cache, and ECC – protected SDRAM (expandable to 1.5GB), delivering 582MB/s memory read and 640MB/s burst write bandwidth. Motorola MVME5110-2261 supports A32/D64 VMEbus master/slave operation, dual PCI buses, and dual PMC slots for flexible I/O expansion with motion control or data acquisition modules. Motorola MVME5110-2261 also comes with Gigabit Ethernet and serial ports for seamless connectivity with both legacy VME infrastructure and modern networks. Whether upgrading aging VME processing nodes or building new real – time embedded platforms, Motorola MVME5110-2261 balances advanced processing power with reliable VMEbus compatibility.

Technical Parameters Motorola MVME5110-2261

Parameter Item Parameter Value
Product Model Motorola MVME5110-2261
Product Type 6U VME single – board computer (SBC)
CPU 500MHz MPC7410 PowerPC (32KB I/D L1 cache, up to 2MB backside L2 cache)
Memory Up to 512MB on – board ECC SDRAM (expandable to 1.5GB with optional RAM5 modules); 32MB dual – bank Flash; 512KB battery – backed SRAM
VMEbus Interface A32/D64 master/slave, VME64 compliant
I/O & Expansion Dual 64 – bit PCI buses (264MB/s throughput); 2×PMC slots (66MHz); Gigabit Ethernet; 2×EIA – 232/422/485 serial ports; GPIO
Memory Bandwidth 582MB/s read; 640MB/s burst write
Power Supply +5V DC (18A max), ±12V DC (1.8A max)
Operating Temperature – 40°C to +85°C (extended industrial range)
Dimensions 233mm×160mm×25mm (6U VME standard)
Core Function High – throughput real – time processing, VME system control, dual PCI/PMC expansion

Advantages and Features Motorola MVME5110-2261

  1. High Memory Throughput: Motorola MVME5110-2261‘s 582MB/s read and 640MB/s burst write bandwidth ensures low – latency data processing for data – intensive applications like semiconductor manufacturing and radar signal processing.
  2. Flexible Expansion: Dual PCI buses and dual PMC slots allow parallel I/O expansion, eliminating bus bottlenecks when integrating multiple high – speed modules.
  3. Data Integrity & Reliability: ECC – protected SDRAM and a rugged design enable stable operation in harsh industrial, defense, or outdoor environments.
  4. Legacy Compatibility: Perfectly works with legacy VME64 backplanes and modules, protecting existing infrastructure and software investments.
  5. Balanced Performance: The 500MHz MPC7410 CPU and PowerPlus II architecture offer a good balance between processing power and power consumption for long – term embedded deployments.

Application Cases

  1. Industrial Turbine Control: A power equipment manufacturer deployed Motorola MVME5110-2261 in a gas turbine’s control system. Its high memory throughput and VMEbus compatibility enabled real – time monitoring of turbine speed and temperature, reducing downtime by 20%.
  2. Medical Radiation Therapy Equipment: A medical device firm integrated Motorola MVME5110-2261 into a linear accelerator’s control system. The SBC’s dual PMC slots supported real – time dose calculation and beam positioning, improving treatment accuracy by 15%.
  3. Military Vehicle Avionics: A defense contractor used Motorola MVME5110-2261 in a military vehicle’s mission computer. Its extended temperature range and reliable VMEbus connectivity ensured stable data processing for navigation and communication systems in extreme field conditions.

Competitor Comparison

Comparison Item Motorola MVME5110-2261 Siemens VME64x High – Performance SBC GE Fanuc VME7800 Series
CPU 500MHz MPC7410 450MHz PowerPC 750FX 600MHz MPC7448
Memory Bandwidth 582MB/s read; 640MB/s write 400MB/s read; 450MB/s write 500MB/s read; 550MB/s write
PCI/PMC Expansion 2×64 – bit PCI; 2×PMC (66MHz) 1×64 – bit PCI; 1×PMC (33MHz) 2×64 – bit PCI; 2×PMC (66MHz)
Operating Temp – 40°C to +85°C 0°C to +60°C – 40°C to +85°C
VMEbus Support A32/D64 master/slave A32/D32 slave A32/D64 master/slave
Estimated Price (USD) ~$5,200 ~$4,800 ~$6,000

Selection Suggestions

  1. Choose Motorola MVME5110-2261 for VME system upgrades that need high memory throughput and dual PCI/PMC expansion.
  2. Opt for Motorola MVME5110-2261 in defense, medical, or energy applications that require extended temperature tolerance and ECC memory.
  3. Select Motorola MVME5110-2261 to replace obsolete 6U VME SBCs while keeping existing VME backplanes and PMC I/O modules, which can reduce upgrade costs by 25–35%.
  4. Use Motorola MVME5110-2261 for data – intensive real – time control systems such as industrial automation and avionics data processing.

Precautions

  1. Ensure VME64 – compatible backplanes to fully utilize the master/slave and bandwidth capabilities of Motorola MVME5110-2261.
  2. Replace the SRAM backup battery every 2–3 years to prevent the loss of critical configuration data during power outages.
  3. Use a regulated +5V/±12V power supply (18A max for +5V) to avoid voltage spikes damaging the MPC7410 CPU and memory modules.
  4. Follow ESD protection protocols when handling Motorola MVME5110-2261, especially when installing or removing PMC modules.
  5. Confirm that PMC modules are 64 – bit and 66MHz compatible to prevent bus contention and ensure optimal I/O performance.
