Description

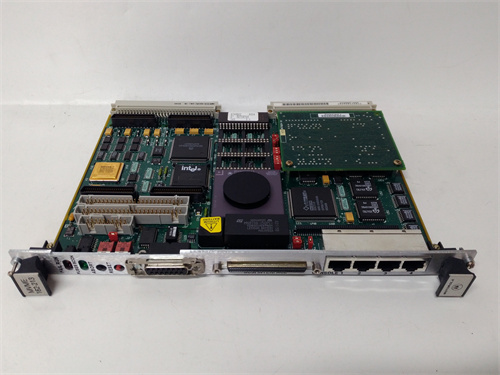

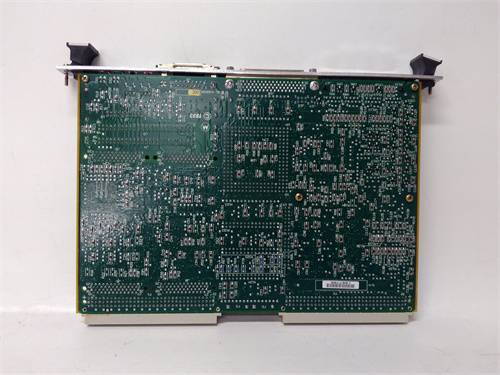

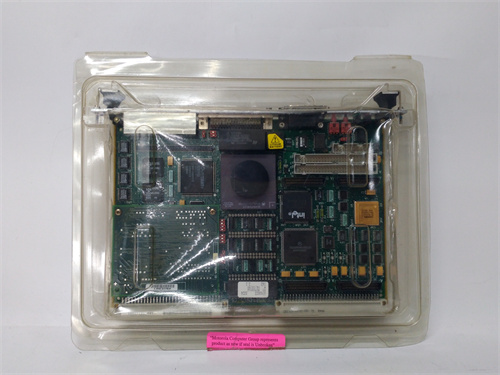

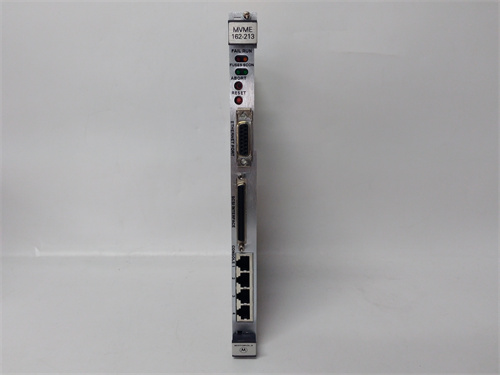

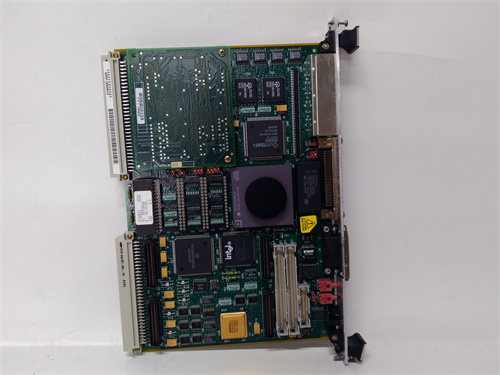

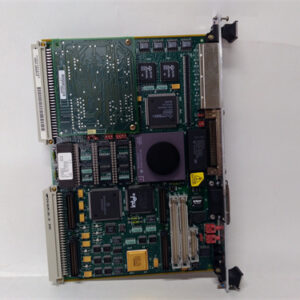

The Motorola MVME162 is a series of VMEbus single-board computers designed for embedded control and real-time processing applications.

Product Name:

Motorola MVME162 Single-Board Computer

Product Description:

The MVME162 series comprises versatile single-board computers that support a wide range of industrial and commercial applications. These boards are based on the Motorola 68000 microprocessor architecture and are designed to be used in VMEbus systems.

Product Parameters and Specifications:

1. Processor:
   • MVME162-213/212/223: Motorola 68040 processor
   • MVME162-012: Motorola 68030 processor
2. Memory:
   • MVME162-213/212: Up to 32 MB of DRAM
   • MVME162-012: Up to 16 MB of DRAM
   • Non-volatile memory options available for storage of system configurations and data.
3. Bus Interface:
   • VMEbus interface compliant with IEEE 1014-1987 standards.
   • Support for universal arbitrary mapping of the VMEbus address space.
4. I/O Capabilities:
   • Multiple serial ports (RS-232/RS-422).
   • Parallel port.
   • Interrupt controller and timers.
   • Optional additional I/O interfaces available, including Ethernet and SCSI.
5. Operating System:
   • Supports various real-time operating systems (RTOS), including VxWorks, real-time Linux, and others.
6. Environmental Specifications:
   • Designed for standard industrial temperature ranges.
   • Conformal coating options for moisture resistance.
7. Dimensions:
   • Standard VME format dimensions (6U or 3U depending on the model variant).
8. Power Requirements:
   • Typically operates at +5V power supply with various current requirements based on configurations.

Product Use:

The Motorola MVME162 series is widely used in various industries for applications like:

• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Process Control Systems
• Robotics and Industrial Automation
• Telecommunications equipment
• Embedded computing applications requiring real-time data processing.
