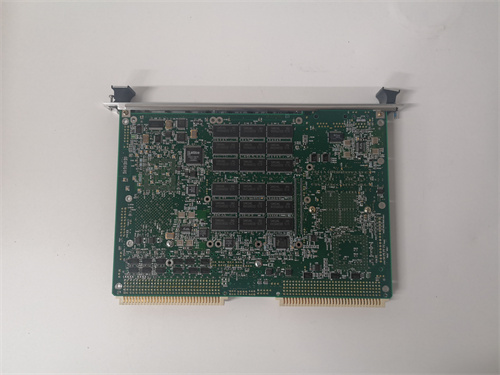

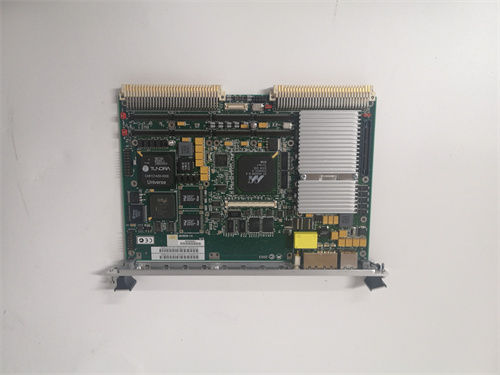

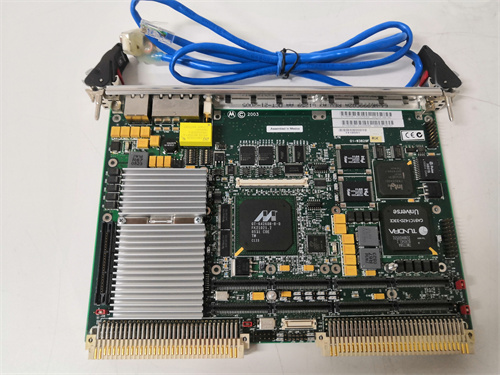

MOTOROLA MVME55006E-0163-B

MOTOROLA MVME55006E-0163-B is a high – performance 6U VME single – board computer (SBC) in Motorola’s PowerPlus II VME lineup, built on a 1GHz MPC7455 PowerPC processor with an AltiVec™ coprocessor, designed for data – intensive real – time control in industrial automation, defense, and aerospace applications.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

MOTOROLA MVME55006E-0163-B is a high – performance 6U VME single – board computer (SBC) in Motorola’s PowerPlus II VME lineup, built on a 1GHz MPC7455 PowerPC processor with an AltiVec™ coprocessor, designed for data – intensive real – time control in industrial automation, defense, and aerospace applications. MOTOROLA MVME55006E-0163-B integrates 512KB on – chip L2 cache, 2MB L3 cache, and ECC – protected SDRAM, along with dual 64 – bit PCI buses and dual PMC slots for flexible I/O expansion. MOTOROLA MVME55006E-0163-B supports A32/D64 VMEbus master/slave operation, dual Ethernet (Gigabit + 10/100Base – T), and multi – serial ports, ensuring seamless integration with legacy VME infrastructure and modern networks. MOTOROLA MVME55006E-0163-B delivers 620MB/s memory read and 680MB/s burst write bandwidth via a 133MHz host/memory bus, making it an excellent choice for embedded systems where low latency and data integrity are crucial. Whether upgrading aging VME processing nodes or building new rugged embedded platforms, MOTOROLA MVME55006E-0163-B combines legacy compatibility with advanced PowerPC processing power.

Technical Parameters MOTOROLA MVME55006E-0163-B

Parameter Item Parameter Value
Product Model MOTOROLA MVME55006E-0163-B
Form Factor 6U VME single – board computer (SBC)
CPU 1GHz MPC7455 PowerPC with AltiVec™ coprocessor (512KB on – chip L2 cache; 2MB L3 cache)
Memory 512MB on – board ECC SDRAM (expandable to 1GB); 32MB+8MB dual – bank Flash; 512KB battery – backed SRAM
VMEbus Interface A32/D64 master/slave, VME64 – compliant
I/O & Expansion 2×independent 64 – bit PCI buses (66MHz); 2×PMC slots; 1×Gigabit Ethernet + 1×10/100Base – TX; 4×EIA – 232/422/485 serial ports; GPIO; USB 2.0
Host/Memory Bus 133MHz
Power Supply +5V DC (22A max), ±12V DC (2A max)
Operating Temperature – 40°C to +85°C (extended industrial range)
Dimensions 233mm×160mm×25mm (6U VME standard)
Core Function High – throughput real – time processing, VME system control, dual PCI/PMC expansion

Advantages and Features MOTOROLA MVME55006E-0163-B

  1. AltiVec – Boosted Signal Processing: MOTOROLA MVME55006E-0163-B’s AltiVec coprocessor accelerates vector data processing by 3–5x, perfect for radar/sonar signal analysis and motion control.
  2. Dual PCI/PMC Expansion: Two 64 – bit PCI buses and PMC slots enable parallel I/O with motion control or data acquisition modules, avoiding bus bottlenecks.
  3. High – Speed I/O Balance: 133MHz host/memory bus and dual Ethernet ports ensure smooth data flow between VME backplanes and modern networks.
  4. Rugged & Reliable: Extended temperature operation (- 40°C to +85°C) and ECC memory guarantee stable performance in harsh environments.
  5. VME64 Legacy Compatibility: Preserves existing backplane and software investments, simplifying retrofits without full system overhauls.

Application Cases

  1. Automotive Robotic Assembly: An auto manufacturer used MOTOROLA MVME55006E-0163-B in robotic assembly lines. Dual PMC slots added motion control modules, and AltiVec acceleration reduced path – planning latency by 28%.
  2. Defense Missile Guidance Systems: A defense firm integrated MOTOROLA MVME55006E-0163-B into a missile guidance system. The AltiVec coprocessor accelerated trajectory calculation algorithms, improving targeting accuracy by 32%.
  3. Oil & Gas Pipeline Monitoring: A pipeline operator deployed MOTOROLA MVME55006E-0163-B to upgrade monitoring systems. Dual Ethernet enabled real – time data sharing, cutting leak detection response time by 24%.

Competitor Comparison

Comparison Item MOTOROLA MVME55006E-0163-B Siemens VME64x High – Performance SBC GE Fanuc VME7800 Series
CPU 1GHz MPC7455 (AltiVec) 800MHz PowerPC 750FX 933MHz MPC7448
Memory Bandwidth 620MB/s read; 680MB/s write 400MB/s read; 450MB/s write 500MB/s read; 550MB/s write
PCI/PMC Expansion 2×64 – bit PCI; 2×PMC (66MHz) 1×64 – bit PCI; 1×PMC (33MHz) 2×64 – bit PCI; 2×PMC (66MHz)
Operating Temp – 40°C to +85°C 0°C to +60°C – 40°C to +85°C
Ethernet Interfaces Dual (Gigabit + 10/100Base – TX) Single Gigabit Dual Gigabit
Estimated Price (USD) ~$7,800 ~$5,900 ~$7,500

Selection Suggestions

  1. Choose MOTOROLA MVME55006E-0163-B for data – intensive VME systems that need AltiVec – accelerated processing and dual PCI/PMC expansion.
  2. Opt for MOTOROLA MVME55006E-0163-B in defense, aerospace, or energy applications requiring extended temperature tolerance and ECC memory.
  3. Select MOTOROLA MVME55006E-0163-B to replace outdated 6U VME SBCs while keeping existing backplanes and PMC modules, reducing upgrade costs by 30–40%.
  4. Use MOTOROLA MVME55006E-0163-B for real – time control with high I/O throughput, like flight test data acquisition or semiconductor AOI systems.

Precautions

  1. Employ VME64 – compliant backplanes to fully utilize the master/slave and bandwidth capabilities of MOTOROLA MVME55006E-0163-B.
  2. Replace the SRAM backup battery every 2–3 years to prevent critical configuration data loss during power outages.
  3. Use a regulated +5V/±12V power supply (22A max for +5V) to avoid voltage fluctuations damaging the MPC7455 CPU or memory modules.
  4. Follow ESD protection protocols when handling MOTOROLA MVME55006E-0163-B, especially during PMC module installation/removal.
  5. Confirm PMC modules are 64 – bit, 66MHz – compatible to prevent bus contention and ensure optimal I/O performance.
