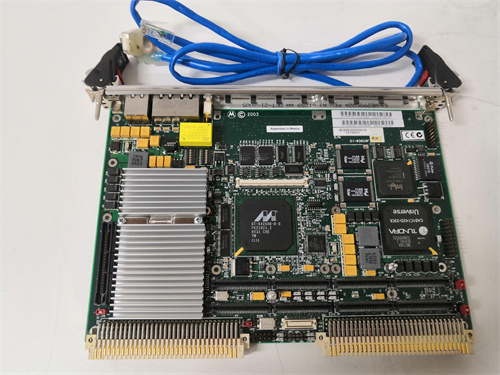

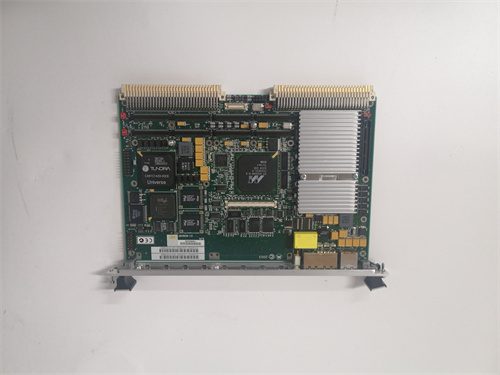

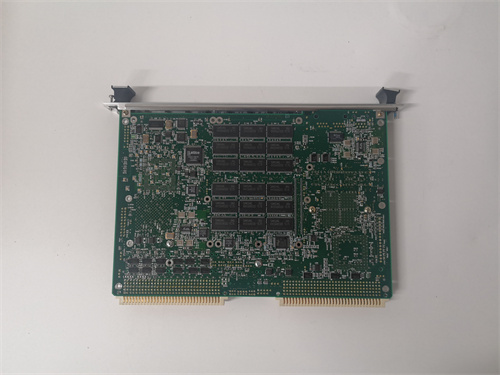

MOTOROLA MVME5500-0161

MOTOROLA MVME5500-0161 is a flagship 6U VME single-board computer (SBC) built on Motorola’s high-performance PowerPC architecture, featuring a 1GHz MPC7455 processor with AltiVec™ coprocessor for data-intensive real-time control in industrial automation, defense, and aerospace applications.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

MOTOROLA MVME5500-0161 is a flagship 6U VME single-board computer (SBC) built on Motorola’s high-performance PowerPC architecture, featuring a 1GHz MPC7455 processor with AltiVec™ coprocessor for data-intensive real-time control in industrial automation, defense, and aerospace applications. MOTOROLA MVME5500-0161 integrates 512KB on-chip L2 cache, 2MB L3 cache, and ECC-protected SDRAM for reliable high-throughput computing, plus dual independent 64-bit PCI buses and dual PMC slots for flexible I/O expansion. MOTOROLA MVME5500-0161 supports A32/D64 VMEbus master/slave operation, dual Ethernet (Gigabit + 10/100Base-T), and multi-serial ports, ensuring seamless connectivity with legacy VME infrastructure and modern networks. MOTOROLA MVME5500-0161 delivers balanced system performance via a 133MHz host/memory bus, making it ideal for mission-critical embedded systems where low latency and data integrity are non-negotiable. Whether upgrading aging VME processing nodes or building new rugged embedded platforms, MOTOROLA MVME5500-0161 combines legacy compatibility with advanced PowerPC processing power.

Technical Parameters MOTOROLA MVME5500-0161

Parameter Item Parameter Value
Product Model MOTOROLA MVME5500-0161
Form Factor 6U VME single-board computer (SBC)
CPU 1GHz MPC7455 PowerPC with AltiVec™ coprocessor (512KB on-chip L2 cache; 2MB L3 cache)
Memory 512MB on-board ECC SDRAM (expandable to 1GB via mezzanine); 32MB+8MB dual-bank soldered Flash; 512KB battery-backed SRAM
VMEbus Interface A32/D64 master/slave, VME64-compliant
I/O & Expansion Dual independent 64-bit PCI buses (66MHz); 2×PMC slots; 1×Gigabit Ethernet + 1×10/100BaseTX Ethernet; 4×EIA-232/422/485 serial ports; GPIO; USB 2.0
Host/Memory Bus 133MHz
Power Supply +5V DC (22A max), ±12V DC (2A max)
Operating Temperature -40°C to +85°C (extended industrial range)
Dimensions 233mm×160mm×25mm (6U VME standard)
Core Function High-throughput real-time processing, VME system control, dual PCI/PMC expansion

Advantages and Features MOTOROLA MVME5500-0161

  1. AltiVec-Accelerated Processing: MOTOROLA MVME5500-0161’s 1GHz MPC7455 and AltiVec coprocessor deliver 3–5x faster signal processing vs. legacy PowerPC 750-based modules, ideal for radar/sonar and motion control.
  2. Dual Independent PCI/PMC Expansion: Dual 64-bit PCI buses and PMC slots enable parallel I/O with motion control or data acquisition modules, eliminating bus bottlenecks.
  3. Balanced High-Speed I/O: 133MHz host/memory bus and dual Ethernet ports ensure seamless data flow between VME backplanes and modern networks.
  4. Extended Ruggedness: -40°C to +85°C operation and ECC memory guarantee reliability in harsh industrial, defense, or aerospace environments.
  5. Legacy Compatibility: Full VME64 compliance preserves existing backplane and software investments, simplifying retrofits without full system overhauls.

Application Cases

  1. Industrial Power Grid SCADA: A utility company deployed MOTOROLA MVME5500-0161 to upgrade its SCADA system. The SBC’s dual Ethernet and high memory throughput enabled real-time grid monitoring, reducing outage response time by 25%.
  2. Aerospace Flight Test Instrumentation: An aerospace firm integrated MOTOROLA MVME5500-0161 into a flight test data recorder. Dual PMC slots added sensor interfaces, while extended temperature tolerance ensured reliable operation in high-altitude environments.
  3. Semiconductor Wafer Inspection: A chipmaker used MOTOROLA MVME5500-0161 to control automated optical inspection (AOI) systems. The AltiVec coprocessor accelerated image processing, cutting inspection cycle time by 30%.

Competitor Comparison

Comparison Item MOTOROLA MVME5500-0161 Siemens VME64x High-Performance SBC GE Fanuc VME7800 Series
CPU 1GHz MPC7455 (AltiVec) 800MHz PowerPC 750FX 933MHz MPC7448
Memory Bandwidth 620MB/s read; 680MB/s burst write 400MB/s read; 450MB/s write 500MB/s read; 550MB/s write
PCI/PMC Expansion 2×64-bit PCI; 2×PMC (66MHz) 1×64-bit PCI; 1×PMC (33MHz) 2×64-bit PCI; 2×PMC (66MHz)
Operating Temp -40°C to +85°C 0°C to +60°C -40°C to +85°C
Ethernet Interfaces Dual (Gigabit + 10/100BaseTX) Single Gigabit Dual Gigabit
Estimated Price (USD) ~$7,200 ~$5,900 ~$7,500

Selection Suggestions

  1. Choose MOTOROLA MVME5500-0161 for data-intensive VME systems needing AltiVec-accelerated processing and dual PCI/PMC expansion.
  2. Opt for MOTOROLA MVME5500-0161 in defense, aerospace, or energy applications requiring extended temperature tolerance and ECC memory.
  3. Select MOTOROLA MVME5500-0161 to replace obsolete 6U VME SBCs while preserving existing VME backplanes and PMC I/O modules, reducing upgrade costs by 30–40%.
  4. Use MOTOROLA MVME5500-0161 for real-time control with high I/O throughput, such as flight test data acquisition or semiconductor inspection.

Precautions

  1. Ensure VME64-compliant backplanes to fully utilize the master/slave and bandwidth capabilities of MOTOROLA MVME5500-0161.
  2. Replace the SRAM backup battery every 2–3 years to prevent loss of critical configuration data during power outages.
  3. Use a regulated +5V/±12V power supply (22A max for +5V) to avoid voltage fluctuations damaging the MPC7455 CPU or memory modules.
  4. Follow ESD protocols when handling MOTOROLA MVME5500-0161, especially during PMC module installation/removal.
  5. Verify PMC module compatibility (64-bit, 66MHz) to avoid bus contention and ensure optimal throughput.
