MOTOROLA MVME51005E-0163R

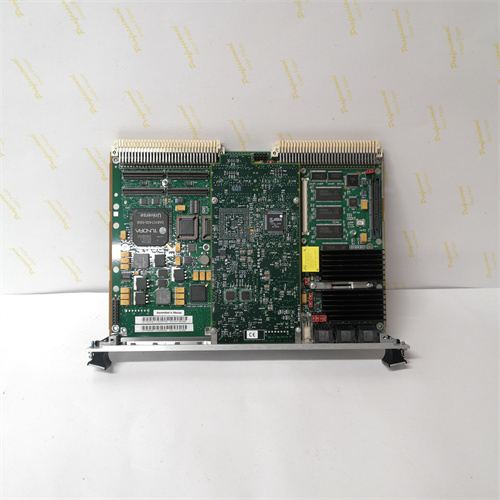

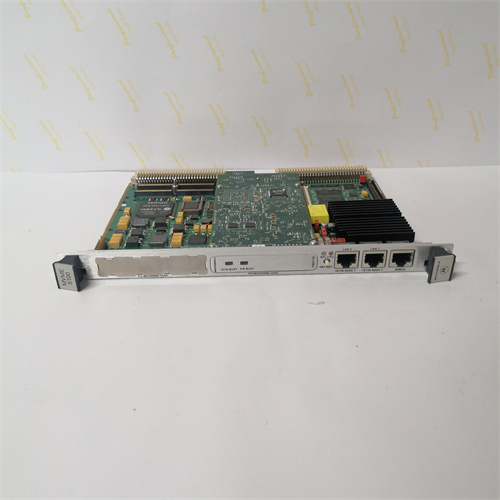

MOTOROLA MVME51005E-0163R is a high-performance 6U VME single-board computer (SBC) built on Motorola’s PowerPlus II architecture, featuring a 1GHz MPC7457 PowerPC processor with AltiVec™ coprocessor for data-intensive industrial control, defense, and semiconductor manufacturing applications.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

MOTOROLA MVME51005E-0163R is a high-performance 6U VME single-board computer (SBC) built on Motorola’s PowerPlus II architecture, featuring a 1GHz MPC7457 PowerPC processor with AltiVec™ coprocessor for data-intensive industrial control, defense, and semiconductor manufacturing applications. MOTOROLA MVME51005E-0163R integrates 512KB on-chip L2 cache, 2MB L3 cache, and ECC-protected SDRAM for reliable high-throughput computing, plus dual independent 64-bit PCI buses and dual PMC slots for flexible I/O expansion. MOTOROLA MVME51005E-0163R supports A32/D64 VMEbus master/slave operation, Gigabit Ethernet, and dual serial ports, ensuring seamless connectivity with legacy VME infrastructure and modern networks. MOTOROLA MVME51005E-0163R delivers 582MB/s memory read and 640MB/s burst write bandwidth, making it ideal for real-time control systems where low latency and data integrity are critical. Whether upgrading aging VME processing nodes or building new mission-critical embedded platforms, MOTOROLA MVME51005E-0163R combines legacy compatibility with advanced PowerPC performance.

Technical Parameters MOTOROLA MVME51005E-0163R

Parameter Item Parameter Value
Product Model MOTOROLA MVME51005E-0163R
Form Factor 6U VME single-board computer (SBC)
CPU 1GHz MPC7457 PowerPC (AltiVec™ coprocessor)
Cache 512KB on-chip L2 cache; 2MB L3 cache
Memory Up to 1GB ECC SDRAM; 32MB Flash (dual soldered banks); 512KB battery-backed SRAM
VMEbus Interface A32/D64 master/slave, VME64-compliant
I/O & Expansion Dual independent 64-bit PCI buses; 2×PMC slots (66MHz); 1×Gigabit Ethernet; 2×EIA-232/422/485 serial ports; GPIO
Memory Bandwidth 582MB/s read; 640MB/s burst write
Power Supply +5V DC (20A max), ±12V DC (2A max)
Operating Temperature -40°C to +85°C (extended industrial range)
Dimensions 233mm×160mm×25mm (6U VME standard)
Core Function High-throughput real-time processing, VME system control, dual PCI/PMC expansion

Advantages and Features MOTOROLA MVME51005E-0163R

  1. High-Speed Processing with AltiVec: MOTOROLA MVME51005E-0163R’s 1GHz MPC7457 and AltiVec coprocessor accelerate signal processing and control algorithms by 3–5x vs. legacy PowerPC 750-based modules.
  2. Dual Independent PCI/PMC Expansion: Dual 64-bit PCI buses and PMC slots enable parallel I/O with motion control, data acquisition, or Fibre Channel modules, eliminating bus bottlenecks.
  3. Ultra-High Memory Throughput: 582MB/s read/640MB/s write bandwidth supports large real-time data sets in semiconductor lithography or turbine control.
  4. Extended Ruggedness: -40°C to +85°C operation and ECC memory ensure reliability in harsh industrial, defense, or outdoor deployments.
  5. Legacy Compatibility: PowerPlus II architecture preserves VME64 backplane and software investments, simplifying retrofits without full system overhauls.

Application Cases

  1. Semiconductor Wafer Fabrication: A chipmaker deployed MOTOROLA MVME51005E-0163R to control photolithography stepper motors. Its AltiVec coprocessor reduced motion control latency by 35%, boosting wafer yield by 8%.
  2. Naval Vessel Combat Management: A defense contractor integrated MOTOROLA MVME51005E-0163R into a shipboard combat system. Dual PMC slots added radar and sonar interfaces, while extended temperature tolerance ensured reliable operation in marine environments.
  3. Industrial Robot Motion Control: An automotive manufacturer used MOTOROLA MVME51005E-0163R to upgrade robot arm controllers. The module’s 1GHz CPU and high memory bandwidth cut path-planning time by 40%, improving assembly line throughput.

Competitor Comparison

Comparison Item MOTOROLA MVME51005E-0163R Siemens VME64x High-Performance SBC GE Fanuc VME7800 Series
CPU 1GHz MPC7457 (AltiVec) 800MHz PowerPC 750FX 933MHz MPC7448
Memory Bandwidth 582MB/s read; 640MB/s write 400MB/s read; 450MB/s write 500MB/s read; 550MB/s write
PCI/PMC Expansion 2×64-bit PCI; 2×PMC (66MHz) 1×64-bit PCI; 1×PMC (33MHz) 2×64-bit PCI; 2×PMC (66MHz)
Operating Temp -40°C to +85°C 0°C to +60°C -40°C to +85°C
VMEbus Support A32/D64 master/slave A32/D32 slave A32/D64 master/slave
Estimated Price (USD) ~$6,800 ~$5,900 ~$7,200

Selection Suggestions

  1. Choose MOTOROLA MVME51005E-0163R for data-intensive VME systems needing AltiVec-accelerated processing and dual 64-bit PCI expansion.
  2. Opt for MOTOROLA MVME51005E-0163R in defense, semiconductor, or heavy industry applications requiring extended temperature tolerance and ECC memory.
  3. Select MOTOROLA MVME51005E-0163R to replace obsolete 6U VME SBCs while preserving existing VME backplanes and PMC I/O modules, reducing upgrade costs by 30–40%.
  4. Use MOTOROLA MVME51005E-0163R for real-time control with high memory throughput, such as motion control, radar processing, or industrial robotics.

Precautions

  1. Ensure VME64 backplane compatibility to unlock full master/slave and bandwidth capabilities of MOTOROLA MVME51005E-0163R.
  2. Replace the SRAM backup battery every 2–3 years to prevent loss of critical configuration data during power outages.
  3. Use a regulated +5V/±12V power supply (20A max for +5V) to avoid voltage fluctuations damaging the MPC7457 CPU or memory modules.
  4. Follow ESD protocols when handling MOTOROLA MVME51005E-0163R, especially during PMC module installation/removal.
  5. Verify PMC module compatibility (64-bit, 66MHz) to avoid bus contention and ensure optimal throughput.
