MOTOROLA MVME5100 | PowerPC 750 Processor Board

Description

Product Introduction

The call came from a naval base in Virginia. Their radar target generator—a VME rack full of boards, including a MVME5100—had stopped booting. The techs had already swapped the power supply, reseated every cable, and were about to declare the whole system dead. I asked them to check the little lithium battery on the MVME5100. Dead as a doornail. Replaced it, reloaded the boot parameters, and the system came up like nothing happened. The board itself? Still running today, eight years later.

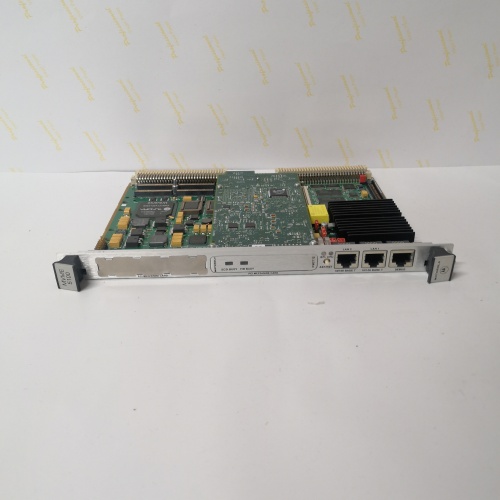

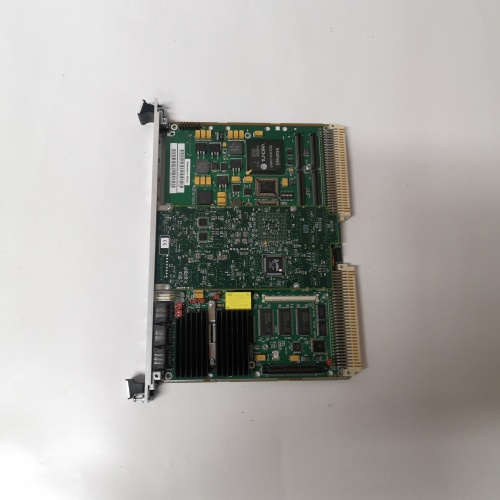

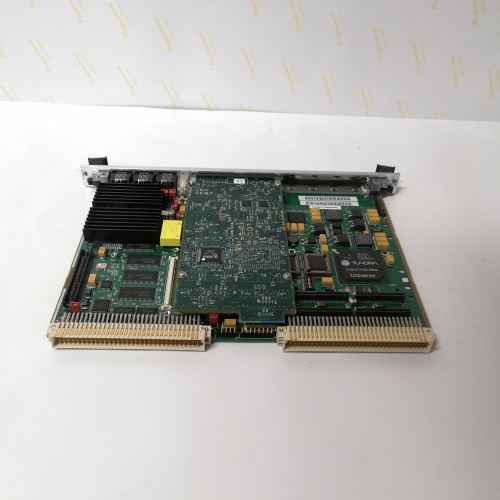

The MOTOROLA MVME5100 is a PowerPC-based single board computer that defined VME processing for a generation of industrial and military systems. Built around the PowerPC 750 CPU (the same core used in old Mac G3s), it runs at 500 MHz—laughable by phone standards, but rock-solid for real-time control. It carries up to 256 MB of SDRAM, 1 MB of L2 cache, and enough I/O to talk to the rest of the VME chassis: two serial ports, a 10/100 Ethernet controller, and a PCI bridge for local expansion. The board is a 6U VME form factor, so it plugs right into a standard VME backplane. In its heyday, it powered everything from particle accelerators to flight simulators.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A board this old (but never used) needs careful handling. Here’s our SOP.

1. Incoming Verification
   • Match the model: MVME5100. There are variants (-1, -2, etc.)—this is the base model with 256 MB.
   • Visual inspection: Look for corrosion on the VME connector pins—common if stored in a humid warehouse.
   • Check the lithium battery voltage (should be >3.0 V). If it’s low, we replace it before testing.
   • Inspect the PMC site: no bent pins in the connector.
2. Power-On Self-Test
   • Seat the board in a VME test chassis with a known-good power supply.
   • Apply power—watch the front-panel LEDs: “FAIL” should flash once then go out, “RUN” should stay steady.
   • Connect a serial terminal to port 1 (9600 baud, 8N1). The PPCBug prompt should appear within 30 seconds.
   • Run the built-in diagnostics: “diag” command executes a full memory and CPU test.
3. Memory Test
   • Use PPCBug to write/read patterns (0x55, 0xAA, walking ones) across the entire 256 MB.
   • Any stuck bit triggers a failure—we log the address and retest.
4. Ethernet Test
   • Connect to a 10/100 switch, ping a known IP from the PPCBug prompt.
   • Run a loopback test through the PHY—must pass 1000 packets with zero errors.
5. VME Backplane Test
   • Install a second VME board (e.g., a memory slave) and perform VMEbus accesses in A24/D32 mode.
   • Verify interrupts can be generated and received.
6. Thermal Soak
   • 4 hours at 50 °C in a thermal chamber, running continuous memory test and network ping.
   • Monitor CPU temperature via on-chip sensor—must stay below 85 °C.
7. Final QC & Packaging
   • QC sticker with test date, battery replacement date (if applicable), and operator initials.
   • Wrap in anti-static bag with silica gel.
   • Double-box with foam padding—these boards are dense and heavy.
   • Test report included—serial number, memory test log, Ethernet stats.

Field Replacement Pitfalls

I’ve pulled more MVME5100s out of failing systems than I can count. Here’s where people mess up.

❗Battery Dead on Arrival
These boards have been sitting on shelves for years. The lithium battery (CR2032 or soldered) is often flat. If you install it without checking, the board boots but loses Ethernet config and boot parameters on every power cycle. Replace the battery before you install. We do it as part of our test.

VME Bus Priority
The MVME5100 is usually the system controller—it drives the VMEbus arbitration. If you put it in a slot that’s not slot 1 (the leftmost), it won’t assert SYSCLK correctly, and the whole backplane may not work. Slot 1, always.

PMC Card Compatibility
The PMC site is 32-bit, 33 MHz, 3.3V signaling. If you plug in a 5V PMC card, it won’t work—and might damage the board. Check your card’s voltage requirements.

Serial Cable Pinout
The front-panel serial ports are standard DB9, but the pinout is DTE (like a PC). If you use a “straight-through” cable to connect to another DTE device (like a terminal server), you need a null modem adapter. We’ve seen people spend hours trying to get console output because they used the wrong cable.

Firmware Version
The PPCBug firmware has different versions. Older versions (pre-1.5) have bugs with large memory maps. If your OS won’t boot, update the firmware. We can do that before shipping if you ask.

Nail these five, and the MVME5100 will run for another decade.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this board was manufactured by Motorola, shipped in its original box, and never installed in a system. The lithium battery is either new or replaced by us. The electrolytic capacitors have zero hours. The VME connector has never been mated.

Refurbished risk in plain terms
A refurbished MVME5100 often comes from a decommissioned telecom switch or military system. It may have run 24/7 for ten years. The capacitors are aged—electrolyte dries out, capacitance drops. The board might pass a quick functional test but fail after a few weeks in service due to a marginal power supply rail. The battery is almost certainly dead.

Real cost of a refurbished failure
If this board is controlling a critical process—say, a wind tunnel or a radar system—a failure means downtime. That downtime can cost more per hour than the price of ten new boards. Plus, troubleshooting a flaky board is expensive in engineering hours.

What we provide as proof

• Motorola box (or photos).
• Serial number recorded.
• Memory test log.
• Battery replacement date (if applicable).
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” MVME5100s and 25% below the original Motorola list price (adjusted for inflation). That pays for the fresh battery, the 4‑hour thermal test, and the warranty that actually covers replacement.

Performance Benchmarks & Test Results

Test conditions: MVME5100 in VME chassis, 24 °C ambient, PPCBug v1.6, 256 MB SDRAM.

We keep the full PPCBug diagnostic output—ask, and we’ll email the text file.
