MOTOROLA MVME2604-4351

Description

Product Description

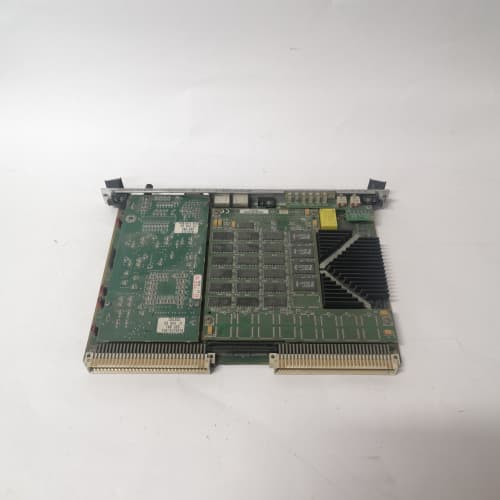

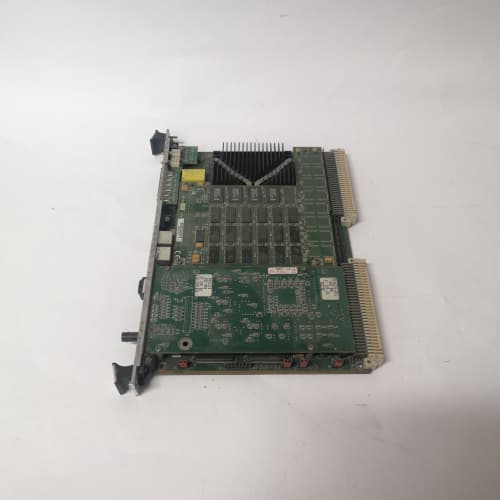

The MOTOROLA MVME2604-4351 is a high-performance, industry-standard Single Board Computer (SBC) and System Controller module designed for the VMEbus (Versa Module Europa) architecture. This board serves as a powerful embedded computing engine within ruggedized industrial and defense systems, often acting as the central processor in complex real-time control, data acquisition, and communication platforms. The primary function of the MOTOROLA MVME2604-4351 is to provide significant computational resources, memory management, and system control functions for custom or semi-custom automation systems where commercial PLCs lack the necessary performance, I/O flexibility, or environmental hardening. Its role is to host a real-time operating system (RTOS) and application software that performs high-level coordination, complex algorithms, or acts as a front-end processor for distributed control networks. For system integrators in aerospace, defense, and specialized industrial sectors, the MVME2604-4351 represents a modular, scalable, and reliable building block for mission-critical computing tasks.

Product Parameters

• Module Type: VMEbus Single Board Computer (SBC) / System Controller.
• Product Family: Motorola (Freescale/NXP) MVME2600 Series.
• Processor: Features a high-performance PowerPC microprocessor (likely a PowerPC 603e or 750 series), known for excellent real-time performance and power efficiency.
• Memory: Equipped with onboard DRAM (Dynamic RAM), typically in the 32MB to 128MB range, and L2 cache to accelerate processor operations.
• Bus Interface: Full VME64 or VME64x system controller interface, capable of acting as the bus master and providing system control functions like bus arbitration and interrupt handling.
• Onboard I/O Interfaces:
  • Dual Ethernet ports (10/100 Base-TX).
  • Multiple serial ports (RS-232/422/485).
  • SCSI interface (for connecting hard drives or tape storage).
  • USB and parallel port for peripherals.
• Form Factor: Standard 6U VME card (233mm x 160mm).
• Environmental Specifications: Typically rated for extended industrial temperature ranges (e.g., 0°C to 55°C or wider).

Advantages and Features

• Deterministic Real-Time Performance: The PowerPC RISC architecture, combined with a compatible RTOS, provides predictable and fast response times for time-critical control applications.
• Open, Scalable Architecture: The VMEbus allows for the integration of a vast array of specialized I/O, communication, and data acquisition cards from multiple vendors, enabling highly customized system solutions.
• Robust Connectivity: The integrated dual Ethernet and multiple serial ports facilitate robust network integration and direct communication with a wide variety of industrial devices and subsystems.
• Proven Ruggedness: Designed to meet rigorous standards for shock, vibration, and electrical noise immunity, making it suitable for deployment in mobile, military, and harsh industrial environments.
• Long-Term Software Ecosystem: Has a long history of support from major RTOS vendors (VxWorks, QNX, LynxOS) and development tools, ensuring software stability and availability.

Application Cases in Application Fields

• Defense & Aerospace (Vehicle/Weapon System Control): Used as the main processing unit in ground vehicle electronic systems, radar interfaces, or flight test data acquisition units.
• Industrial Test & Measurement (ATE – Automated Test Equipment): Acting as the central controller in complex test stands for automotive or aerospace components, managing instrument communication and data logging.
• Telecommunications (Network Infrastructure): Embedded in network switches, routers, or base station controllers requiring high-availability computing.
• Scientific Research (Large Physics Experiments): Serving as a data acquisition and control node in particle accelerators or telescope arrays.
• Specialized Machinery Control: In highly complex, low-volume machinery (e.g., semiconductor manufacturing equipment) where custom software on a powerful, modular platform is more feasible than a standard PLC.

Comparisons with Competing Products
The MOTOROLA MVME2604-4351 does not compete with standard packaged PLCs. Its competition lies within the embedded SBC and rugged computing market:

• Competing VME SBCs: From manufacturers like GE Intelligent Platforms (now Abaco Systems), Kontron, or Curtiss-Wright. The MVME2604-4351 is competitive based on its PowerPC performance, Motorola’s market presence, and comprehensive I/O set.
• CompactPCI/PXI Systems: Offer a more modern, PCI-based bus architecture. The VMEbus of the MVME2604-4351 is considered a mature, highly robust standard preferred in severe environments.
• AdvancedTCA/µTCA Blades: Used in telecom and high-availability computing. VME remains strong in legacy upgrades and certain military/aerospace applications.
• Industrial PCs (IPCs): Offer mainstream x86 computing but may not match the real-time determinism, long-term component availability, or specific ruggedization of a dedicated SBC like the MVME2604-4351.

Its advantage is its position in legacy and niche high-reliability systems where long lifecycle support, deterministic performance, and a proven hardware/software stack are critical.

Selection Suggestions and Precautions

1. Legacy System Support or Specialized New Design: This board is typically selected for upgrading existing VME-based systems or for new designs in fields with established VME infrastructure. Verify compatibility with existing chassis, backplanes, and software.
2. Significant Software Investment: This is not an out-of-the-box controller. You must procure licenses for a compatible RTOS, drivers, and development tools. The software effort and cost are substantial and require specialized expertise.
3. Full System Design Responsibility: The integrator is responsible for designing the entire I/O and subsystem by selecting and integrating separate VME cards. This requires deep system-level hardware and software integration skills.
4. Obsolescence Management: This is a mature product line. Confirm its lifecycle status and availability of future spares. For new designs, evaluate if more contemporary architectures (VPX, high-end IPCs with real-time extensions) are more suitable.
5. Environmental & Mechanical Considerations: While rugged, it requires a properly cooled and mechanically secured VME subrack (chassis). Ensure the final enclosure meets the required specifications for temperature, airflow, and shock/vibration.
