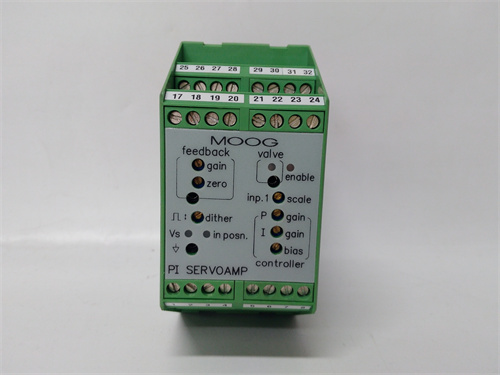

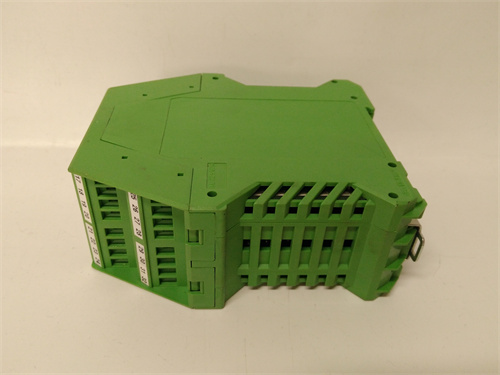

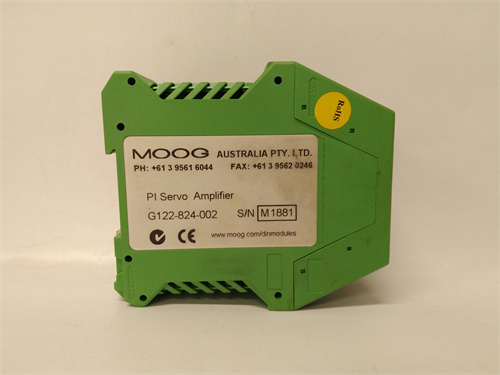

MOOG G122-824-002

Description

Product Description

The MOOG G122-824-002 is a high-performance servo valve driver or amplifier module, a critical component within Moog’s extensive motion control systems. Specifically designed to interface between a motion controller and a high-response servo valve, the MOOG G122-824-002 converts low-power command signals into the high-power electrical currents needed to precisely position the valve’s torque motor. This precise control directly dictates hydraulic flow and pressure, enabling the accurate and dynamic movement of actuators in closed-loop systems. For detailed technical specifications, connection diagrams, and manuals, engineers should consult the official Moog technical documentation for the MOOG G122-824-002. The reliability and performance of complex hydraulic motion axes are fundamentally dependent on the stability and responsiveness of the G122-824-002 amplifier, making it an essential spare part for maintenance and system uptime. Its robust design is tailored for demanding industrial environments where precision hydraulics are required.

Product Parameters

• Manufacturer / Brand: Moog Inc.
• Model / Part Number: G122-824-002.
• Function: Servo Valve Amplifier / Driver Module.
• Input Signal: Typically accepts a standard analog command signal (e.g., ±10 VDC) or a digital signal from a motion controller or PLC analog output card.
• Output Signal: Provides a drive current (e.g., ±300 mA or similar) suitable for driving the coil of a specific series of Moog servo or proportional valves.
• Supply Voltage: Requires a DC power supply, often in the range of ±15 VDC or a single higher voltage DC rail, for amplifier operation.
• Frequency Response: Features a high bandwidth to ensure fast and accurate following of the input command signal, critical for dynamic motion.
• Gain & Adjustments: Includes potentiometers or digital means for adjusting gain, offset, and null bias to tune the valve’s performance and center its spool.
• Protections: Incorporates fault detection and protection against short circuits, coil disconnect, and over-temperature.
• Form Factor: Typically a compact, enclosed metal or plastic module designed for DIN rail or panel mounting.

Advantages and Features

• Precision Control: Enables precise and repeatable control of servo valve spool position, leading to accurate control of hydraulic actuator velocity, force, or position.
• High Dynamic Response: The amplifier’s high bandwidth allows it to faithfully reproduce rapid changes in the command signal, which is essential for applications requiring fast acceleration and deceleration.
• Integrated Diagnostics: Often includes status LEDs and fault output relays to indicate issues such as coil failure, saturation, or signal deviation, aiding in rapid troubleshooting.
• Robust Design: Engineered for reliable operation in industrial environments with electrical noise, vibration, and variable temperatures.
• Optimized Integration: Designed for seamless pairing with specific Moog servo valves, ensuring optimal performance and stability of the closed-loop hydraulic system.

Application Cases in Industry

• Injection Molding Machines: Controls the precise movement of the injection screw and mold clamping cylinders, directly impacting part quality and cycle time.
• Metal Forming Presses & Roll Mills: Provides the precise pressure and position control for bending, stamping, and rolling operations in steel and aluminum production.
• Flight Simulators & Test Rigs: Drives the hydraulic actuators that create highly dynamic and realistic motion profiles for pilot training and component fatigue testing.
• Industrial Automation: Used in automotive body-in-white welding lines to accurately position heavy welding guns or in large material handling systems for precise gripper control.
• Paper & Printing Machinery: Controls the hydraulic actuators for knife cutters, winder tensions, and printing cylinder positioning, where synchronization is key.

Comparison with Competing Products

Competing products include servo amplifiers from Parker Hannifin, Bosch Rexroth (Indramat), and Atos. The MOOG G122-824-002 differentiates itself through Moog’s deep heritage and specialization in high-performance servo valve technology. Compared to a generic proportional valve amplifier, the G122-824-002 is often optimized for the specific electrical characteristics and dynamic response of Moog’s own valves, potentially offering better stability and less need for external compensation. While some modern universal amplifiers offer more digital features and configuration software, the MOOG G122-824-002 is prized for its proven reliability, analog simplicity, and deterministic performance in critical applications.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the MOOG G122-824-002 specifically when replacing a failed unit in an existing Moog-based hydraulic control system or when designing a new system around a compatible Moog servo valve.
  2. Verify the exact compatibility between the amplifier’s output current rating and the coil specifications (resistance, current) of the servo valve it will drive. Mismatch can lead to poor performance or damage.
  3. Ensure the command signal type and range (e.g., +/-10V) from your controller match the amplifier’s input specifications.
• Precautions:
  1. Power Disconnect: Always disconnect power before wiring or servicing the amplifier to prevent electrical shock or damage.
  2. Proper Grounding: Implement a clean, single-point grounding scheme for both the power supply and signal cables to minimize electrical noise, which can cause instability.
  3. Tuning Required: After installation, the amplifier’s gain, offset, and null bias typically require adjustment while monitoring the system’s response. Incorrect tuning can cause oscillations, poor accuracy, or instability.
  4. Coil Connection: Verify the correct polarity when connecting the amplifier outputs to the valve coil. Incorrect wiring can cause positive feedback and immediate, violent system oscillation.
  5. Heat Dissipation: Ensure the amplifier is mounted in a location with adequate airflow and, if specified, on a proper heatsink to prevent thermal shutdown or failure. Do not ignore thermal management requirements.
