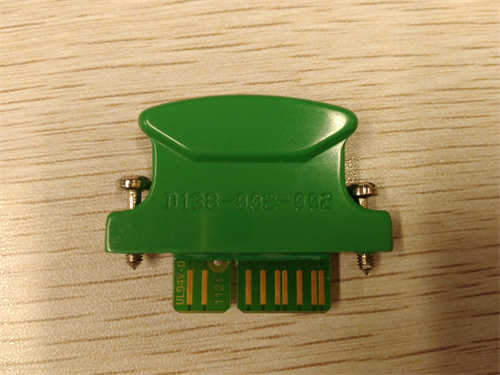

MOOG D138-002-002

Product Description

The MOOG D138-002-002 is a critical electronic control module designed as part of Moog’s advanced motion control systems, specifically for servo valve and actuator management. This module typically functions as a servo controller or signal conditioning unit, interpreting low-power command signals from a PLC or motion controller and outputting the precise drive signals required to position a high-performance servo or proportional valve. The MOOG D138-002-002 is engineered to deliver the accuracy, dynamic response, and reliability necessary for closed-loop hydraulic or electro-hydraulic control in demanding industrial and aerospace applications. For detailed technical documentation, including wiring schematics, parameter lists, and calibration procedures, the essential resource is the official Moog Technical Publications portal for the MOOG D138-002-002. The proper functioning of a high-performance motion axis is often dependent on the calibration and health of the D138-002-002 module. Its role is to ensure that electrical commands are faithfully translated into precise mechanical movement.

Product Parameters

• Manufacturer / Brand: Moog Inc.
• Model / Part Number: D138-002-002.
• Function: Servo Valve Controller / Servo Amplifier / Signal Conditioner.
• Input Signal: Typically accepts standard analog command signals (e.g., ±10 VDC) or digital inputs from a supervisory controller.
• Output Signal: Provides a drive current (e.g., ±40 mA to ±300 mA) suitable for driving the torque motor coil of a specific series of Moog servo valves.
• Supply Voltage: Requires DC power rails (e.g., ±15 VDC, +24 VDC) for internal electronics and possibly for powering valve LVDT/RVDT feedback.
• Feedback Interface: Includes inputs for valve spool position feedback (typically from an LVDT or RVDT) to close the local valve position loop.
• Adjustments: Features potentiometers or digital interfaces for critical adjustments such as null bias (center), gain, and dither (high-frequency signal to reduce stiction).
• Protections: Includes safeguards against output short circuits, coil disconnect, and over-temperature.
• Form Factor: Typically a modular, enclosed metal chassis designed for panel or rack mounting, with robust multi-pin connectors.

Advantages and Features

• Precision Control: Enables extremely precise and repeatable control of servo valve spool position, which is the foundation for accurate control of actuator force, velocity, and position.
• High Dynamic Response: Designed for high bandwidth, allowing it to accurately follow rapid command changes, which is essential for applications with fast accelerations or high-frequency motion profiles.
• Integrated Valve Feedback Loop: The internal closure of the valve spool position loop (using LVDT feedback) ensures the valve accurately follows the command, compensating for internal valve variations and wear.
• Robust Industrial Design: Built to withstand the vibration, temperature variations, and electrical noise prevalent in industrial environments like test rigs and heavy machinery.
• Comprehensive Diagnostics: Often includes status LEDs and test points for monitoring power, command signal, feedback signal, and output current, facilitating troubleshooting.

Application Cases in Industry

• Flight Simulator Motion Systems: Drives the high-response servo valves controlling hydraulic actuators that create realistic motion cues for pilot training platforms.
• Material & Component Testing: Used in servo-hydraulic test stands (e.g., for fatigue testing of metals or composites) to generate precise and dynamic load or displacement profiles.
• Industrial Automation: Controls heavy-duty hydraulic presses, rolling mill actuators, or injection molding machine clamps where precise pressure and position control are critical for quality and cycle time.
• Aerospace Test Rigs: Provides control for actuators in ground-based rigs that test aircraft landing gear, flight control surfaces, or satellite antenna mechanisms.
• Steel and Aluminum Processing: Manages the hydraulic systems for precise gauge control in rolling mills and tension control in continuous strip processing lines.

Comparison with Competing Products

Competing products include servo controllers from Parker Hannifin, Bosch Rexroth, and Atos. The MOOG D138-002-002 differentiates itself through Moog’s deep specialization in high-performance servo valve technology. Compared to a generic proportional valve amplifier, the D138-002-002 is often specifically tuned and calibrated to work optimally with Moog’s own valves, offering superior spool positioning accuracy and stability. While modern digital drives offer extensive software configuration, the MOOG D138-002-002 represents an analog/digital hybrid approach prized for its deterministic performance, simplicity, and proven reliability in critical, high-power applications. Its main competitors are other high-end, brand-specific valve controllers.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the MOOG D138-002-002 as a direct replacement for a failed unit in an existing Moog-controlled system or when designing a new system around a compatible Moog servo valve that requires this specific controller.
  2. Verify the exact compatibility between the controller’s output current rating and the coil specifications (resistance, nominal current) of the servo valve it will drive.
  3. Ensure the command signal type and range from the upstream motion controller or PLC are compatible with the module’s input specifications.
• Precautions:
  1. Expert Calibration Required: After installation, the module must be carefully calibrated. This includes nulling the valve (setting the exact center position), adjusting the gain for stable operation, and potentially setting dither. Incorrect calibration can cause instability, oscillations, or poor performance.
  2. Power Sequencing: Follow the recommended power-up/power-down sequence. Applying power to the valve coil before the controller electronics are stable can cause a large, uncontrolled valve movement (a “jump”).
  3. Signal Grounding & Shielding: Use proper shielded cables for all signal connections (command, feedback) and ensure they are grounded at one end only to prevent ground loops and noise ingress, which can manifest as erratic valve movement.
  4. Hydraulic System Cleanliness: The module controls a sensitive servo valve. Ensure the hydraulic fluid is to the required cleanliness standard (e.g., NAS 1638 Class 6 or better). Contamination is a leading cause of valve and system failure.
  5. Sourcing: Due to the critical nature of its function, source the MOOG D138-002-002 from authorized Moog distributors or certified refurbishment centers. Obtain the precise technical manual for the module using the full part number for calibration and troubleshooting guidance.
