MOOG D136-002-002

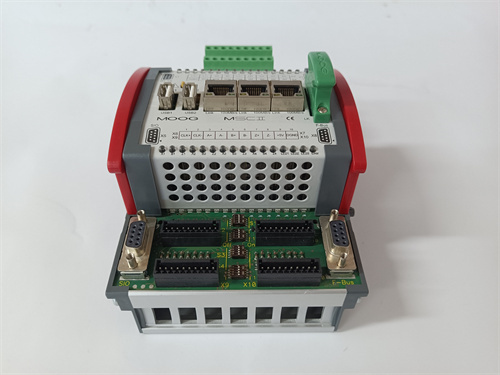

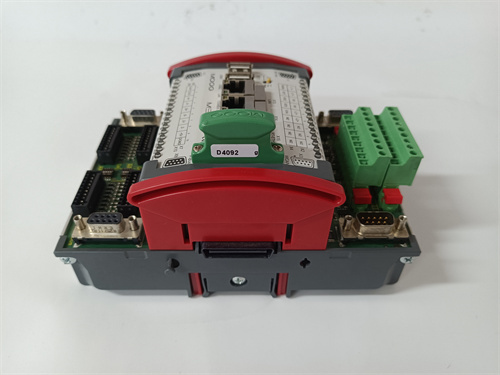

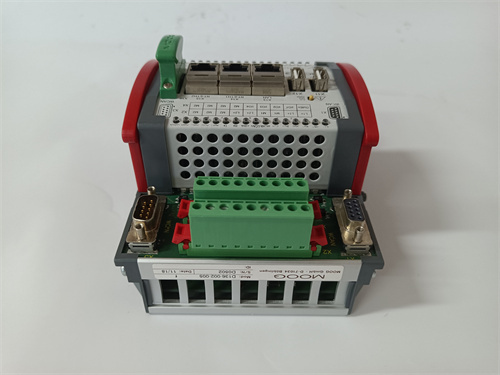

MOOG D136-002-002 is a high‑performance MSC II series 4‑axis motion controller with integrated PLC functionality, tailored for precision motion control in electric/hydraulic systems across aerospace, metallurgy, precision manufacturing, and heavy machinery.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

MOOG D136-002-002 is a high‑performance MSC II series 4‑axis motion controller with integrated PLC functionality, tailored for precision motion control in electric/hydraulic systems across aerospace, metallurgy, precision manufacturing, and heavy machinery. MOOG D136-002-002 delivers 200 μs minimum task cycle time and nanosecond‑level axis synchronization, ideal for complex multi‑axis coordination. MOOG D136-002-002 supports IEC 61131‑3 and C++ programming via Moog Axis Control Software (MACS), enabling custom motion algorithms for synchronized motion tasks. MOOG D136-002-002 integrates 16 analog I/Os, 16 digital I/Os, and 4 configurable position transducer interfaces, matching diverse feedback and actuator needs. MOOG D136-002-002 features enhanced E‑bus expansion and multi‑protocol communication (CANopen, Ethernet, Profibus‑DP), ensuring seamless integration with MOOG servo drives and third‑party control systems. MOOG D136-002-002’s DIN‑rail mounting and redundant power input minimize downtime in continuous production scenarios.

Technical Parameters MOOG D136-002-002

Parameter Item Parameter Value
Product Model MOOG D136-002-002
Product Type MSC II Series 4‑Axis Motion Controller with PLC Function
Core Function 4‑axis position/velocity/force control, PLC logic, I/O management, motion synchronization
CPU 60 MHz 32‑bit RISC (PowerPC with FPU)
Memory 8 MB Flash EEPROM, 8 MB RAM
Minimum Task Cycle Time 200 μs
Analog I/O 16×16‑bit analog inputs, 16×16‑bit analog outputs (configurable range)
Digital I/O 16×configurable digital I/O
Position Transducer Interface 4×SSI/incremental encoder (Master/Slave configurable)
Communication Interfaces 2×CAN/CANopen, 2×RS‑232, Ethernet, E‑bus; Profibus‑DP slave (optional)
Power Supply 24V DC (redundant dual‑input)
Operating Temperature 0°C to +60°C
Storage Temperature -25°C to +70°C
Protection Level IP20
Mounting DIN‑rail
Programming Standard IEC 61131‑3 (LD, FBD, ST, IL) + C++
MTBF ≥180,000 hours
Warranty Period 1 year

Advantages and Features MOOG D136-002-002

  1. Ultra‑Fast Response: 200 μs cycle time of MOOG D136-002-002 enables microsecond‑level motion tracking for high‑dynamic applications like aerospace test benches.
  2. 4‑Axis Synchronization: MOOG D136-002-002 achieves nanosecond‑level axis synchronization, critical for coordinated motion in multi‑axis machining and metal forming.
  3. Programming Versatility: IEC 61131‑3 + C++ support allows custom algorithms for MOOG D136-002-002, adapting to complex motion profiles.
  4. Rich I/O & Feedback: 16 analog/digital I/Os and 4 transducer interfaces of MOOG D136-002-002 match diverse sensor/actuator configurations.
  5. Modular Expansion: Enhanced E‑bus of MOOG D136-002-002 supports plug‑and‑play I/O/communication modules without core system reconfiguration.
  6. High Reliability: Redundant power input and ≥180,000 hours MTBF ensure MOOG D136-002-002 operates stably in 24/7 industrial environments.

Application Cases MOOG D136-002-002

  1. Aerospace Flight Simulator: An aerospace research center used MOOG D136-002-002 for 4‑axis motion platform control, achieving ±0.002° angular precision and reducing motion latency by 30%.
  2. Automotive Body Stamping: An auto manufacturer deployed MOOG D136-002-002 for 4‑axis press synchronization, improving stamping accuracy by ±0.01 mm and yield by 22%.
  3. Precision Injection Molding: A plastic machinery maker integrated MOOG D136-002-002 to control injection speed and pressure, cutting cycle time by 18% via real‑time multi‑axis coordination.
  4. Metallurgical Rolling Mill: A steel plant utilized MOOG D136-002-002 for 4‑axis roll gap adjustment, reducing strip thickness variation by 25% and enhancing product consistency.

Competitor Comparison

Feature MOOG D136-002-002 MOOG D136-001-007 Siemens S7‑1500 Motion Controller
Axis Control Capacity 4‑axis 2‑axis Up to 8‑axis (with additional modules)
Task Cycle Time 200 μs 400 μs ≥500 μs
I/O Count 16 analog + 16 digital 8 analog + 8 digital 8 analog + 16 digital (base module)
Position Transducer Interfaces 4 2 2 (Siemens‑centric)
Programming Support IEC 61131‑3 + C++ IEC 61131‑3 IEC 61131‑3 (limited motion blocks)
MTBF ≥180,000 hours ≥150,000 hours ≥160,000 hours
Expansion Bus Enhanced E‑bus E‑bus Profinet I/O
Price Range Mid‑High Mid‑Range High

Selection Suggestions

  1. Choose MOOG D136-002-002 for 4‑axis synchronization tasks (e.g., aerospace test benches, multi‑axis machine tools) to leverage its ultra‑fast cycle time and nanosecond‑level axis coordination.
  2. Prioritize MOOG D136-002-002 for applications requiring rich I/O and feedback interfaces, such as metallurgical rolling mills and injection molding machines.
  3. Select MOOG D136-002-002 for systems needing C++ custom motion algorithms, as its dual‑programming support reduces development effort.

Precautions

  1. Use stable 24V DC redundant power for MOOG D136-002-002 to avoid voltage fluctuations affecting motion precision.
  2. Match E‑bus expansion modules to MOOG D136-002-002 specifications to maintain signal integrity and system stability.
  3. Follow IEC 61131‑3/C++ programming standards for MOOG D136-002-002 to prevent motion‑logic conflicts in closed‑loop control.
  4. Verify Profibus‑DP slave compatibility between MOOG D136-002-002 and the master before commissioning.
  5. Mount MOOG D136-002-002 in a well‑ventilated cabinet (IP20) to avoid overheating during continuous operation.
