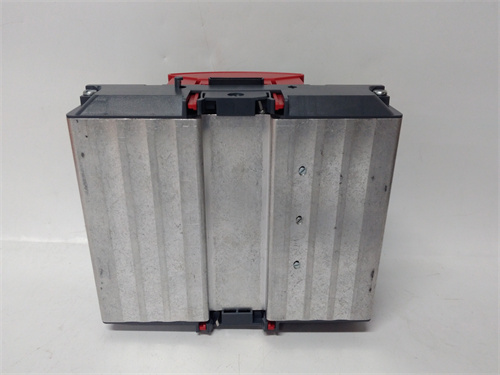

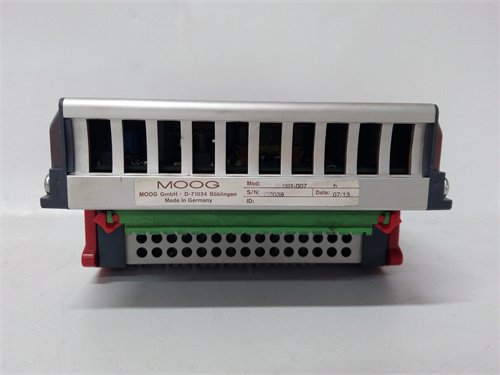

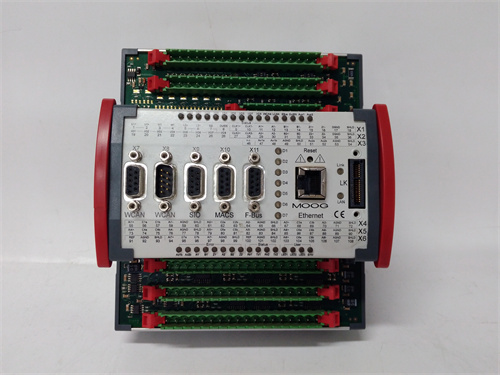

MOOG D136-001-008A

Description

Technical Parameters MOOG D136-001-008A

Advantages and Features MOOG D136-001-008A

1. Superior Precision & Response: MOOG D136-001-008A offers ±0.01° positioning accuracy and 1000°/s speed response, which is suitable for semiconductor wafer processing and aerospace component testing.
2. Enhanced Processing Power: The dual – core 1.8GHz CPU enables a 250μs minimum control cycle, supporting nanosecond – level axis synchronization for complex multi – axis coordination.
3. Rugged Fanless Design: It can operate reliably in – 20°C to +70°C environments without a fan, reducing maintenance and noise in continuous – run setups.
4. Flexible Connectivity: It is compatible with EtherCAT, PROFINET, and CANopen, facilitating integration with existing PLC/DCS and HMI systems.
5. Expanded I/O & Protection: The 4 – channel digital I/O and reinforced ESD protection enhance system flexibility and durability in industrial settings.
6. Easy Programming: It supports IEC 61131 – 3 languages and Moog Axis Control Software (MACS) for custom motion logic development.

Application Cases

1. Aerospace Component Testing: An aerospace R&D lab used MOOG D136-001-008A in landing gear actuation test benches. Its ±0.01° precision and 250μs cycle time ensured accurate simulation of flight – load dynamics, cutting test validation time by 20%.
2. Semiconductor Wafer Handling: A chipmaker integrated MOOG D136-001-008A into wafer transfer robots. The controller’s multi – axis synchronization and low – noise operation reduced wafer position errors by 18%, boosting yield rates.
3. Heavy – Duty CNC Machining: A automotive parts manufacturer deployed MOOG D136-001-008A in 5 – axis milling machines. Its 10Nm torque capacity and real – time feedback maintained cutting precision during high – speed material removal, improving part quality consistency.

Competitor Comparison

Selection Suggestions

1. Choose MOOG D136-001-008A for high – precision continuous – operation tasks like semiconductor manufacturing, leveraging its ±0.01° accuracy and fanless reliability.
2. Opt for MOOG D136-001-008A in multi – axis synchronization setups, as its 250μs cycle time supports tight coordination across up to 8 axes.
3. Select MOOG D136-001-008A for systems needing flexible fieldbus integration, thanks to its EtherCAT, PROFINET, and CANopen compatibility.
4. Use MOOG D136-001-008A in harsh – temperature environments (- 20°C to +70°C) where fan – cooled controllers may fail.

Precautions

1. Supply stable 24V DC power (10A max) to avoid voltage fluctuations that degrade MOOG D136-001-008A’s control precision.
2. Use shielded cables for encoder and communication wiring to minimize EMC interference, especially in high – precision motion scenarios.
3. Follow MACS programming guidelines to prevent logic conflicts between motion control and PLC functions.
4. Mount the module in a dry, dust – free cabinet (even with its rugged design) to extend its service life.
5. Do not exceed the 10Nm torque or 10A current limits to prevent triggering protection mechanisms or damaging internal components.
6. Conduct regular inspections of wiring terminals and clean the module’s exterior for optimal heat dissipation.
