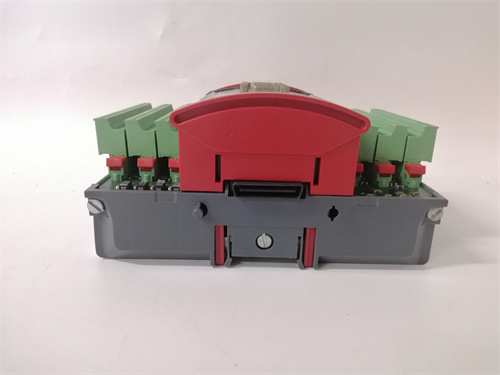

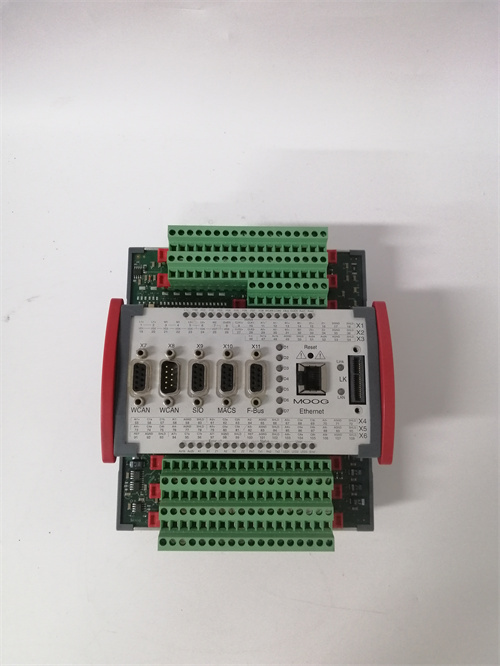

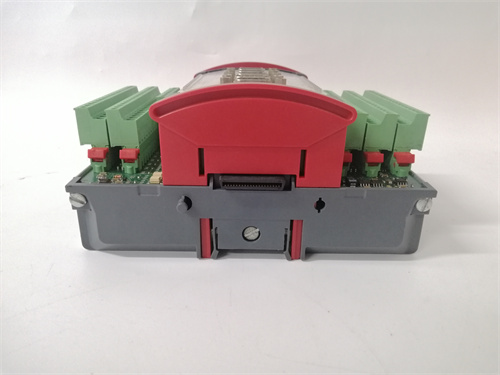

MOOG D136-001-008

Description

Technical Parameters MOOG D136-001-008

Advantages and Features MOOG D136-001-008

1. High-Precision Motion Control: MOOG D136-001-008 supports multi-axis coordination and absolute encoder feedback, delivering exceptional positioning accuracy for demanding applications like semiconductor manufacturing.
2. Robust & Fanless Design: The 300MHz low-power CPU operates without a fan, combined with industrial-grade components, ensuring reliability in dust-prone or extreme-temperature environments.
3. Versatile Connectivity: Multiple communication interfaces (Ethernet, serial ports, USB) and protocols enable seamless integration with PLCs, sensors, and HMI systems across diverse industrial setups.
4. Modular & Expandable: Flexible modular design allows custom configuration, while the memory expansion slot supports future upgrades to meet evolving application needs.
5. Comprehensive Protection: Built-in overvoltage, overcurrent, and short-circuit protection safeguards the module and connected equipment, reducing downtime risks.

Application Cases

1. Aerospace Flight Control Components: An aerospace manufacturer deployed MOOG D136-001-008 to control aircraft landing gear and rudder systems. Its high precision and real-time response ensured reliable operation of critical flight components.
2. Semiconductor Wafer Processing: A semiconductor plant integrated MOOG D136-001-008 into wafer testing equipment. The controller’s multi-axis coordination and precision positioning improved wafer processing accuracy by 15%.
3. Automotive Automated Production Lines: An automotive factory used MOOG D136-001-008 to control assembly line robots. Its modular design and versatile communication enabled seamless integration with the factory’s existing DCS, enhancing production line flexibility.

Competitor Comparison

Selection Suggestions

1. Choose MOOG D136-001-008 for high-precision applications like aerospace components or semiconductor manufacturing, leveraging its absolute encoder support and multi-axis control.
2. Opt for MOOG D136-001-008 in harsh industrial environments, as its fanless design and protection features ensure stability in dust, high temperature, or voltage fluctuations.
3. Select MOOG D136-001-008 for systems requiring flexible integration, thanks to its diverse communication interfaces and compatibility with Modbus/CAN bus protocols.
4. Use MOOG D136-001-008 for scalable setups, as the memory expansion slot and modular design support future upgrades without full system replacement.

Precautions

1. Ensure a stable industrial power supply (compatible with the module’s voltage requirements) to maintain MOOG D136-001-008’s precision and reliability.
2. Mount the module in a dry, well-ventilated area to prevent dust accumulation, even with its industrial-grade durability.
3. Use shielded cables for communication and control wiring to minimize electromagnetic interference, especially in high-precision motion control scenarios.
4. Follow ESD protection protocols during installation and maintenance to protect the module’s sensitive electronic components.
5. Avoid exceeding the module’s current or voltage limits to prevent triggering protection mechanisms or damaging internal circuitry.
6. Regularly inspect wiring connections for tightness and clean the module’s exterior to ensure optimal heat dissipation and long-term performance.
