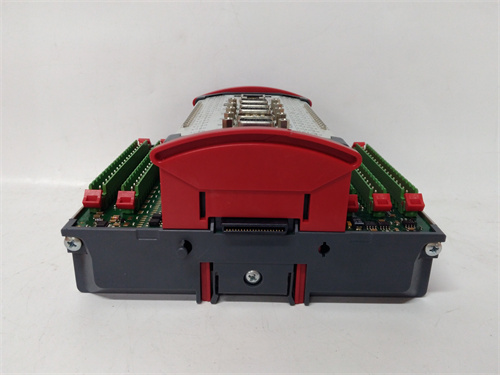

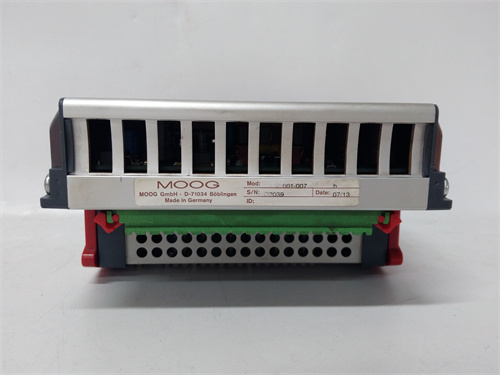

MOOG D136-001-007

Description

Product Description

The MOOG D136-001-007 is a precision electronic servo controller or signal conditioning module designed for integration within Moog’s high-performance motion control systems. This module serves as a critical interface, translating command signals from a supervisory controller (such as a PLC or motion card) into the precise drive signals required to operate a Moog servo or proportional valve. The MOOG D136-001-007 is engineered to ensure accurate spool positioning of the valve, which directly governs hydraulic flow and pressure, enabling controlled movement in actuators for closed-loop systems. For detailed technical specifications, calibration procedures, and interconnection diagrams, the essential resource is the official Moog Technical Publications portal for the MOOG D136-001-007. The reliable operation of complex hydraulic axes in demanding applications is fundamentally dependent on the stability and accuracy of modules like the D136-001-007. Its design is tailored for applications requiring exceptional dynamic response and control fidelity.

Product Parameters

• Manufacturer / Brand: Moog Inc.
• Model / Part Number: D136-001-007.
• Function: Servo Valve Controller / Servo Amplifier.
• Input Signal: Typically accepts an analog command signal (e.g., ±10 VDC) or a digital signal from a motion controller.
• Output Signal: Provides a controlled current output (e.g., ±40 mA, ±100 mA, or ±300 mA) to drive the torque motor coil of a matched Moog servo valve.
• Supply Voltage: Requires regulated DC power rails, commonly ±15 VDC for internal electronics and possibly a separate +24 VDC supply for certain functions.
• Feedback Interface: Equipped with inputs for valve spool position feedback, typically from a Linear Variable Differential Transformer (LVDT) or Rotary Variable Differential Transformer (RVDT) built into the valve.
• Adjustments: Includes user-accessible potentiometers or digital interfaces for critical tuning parameters such as null (zero) adjustment, gain, and often a high-frequency dither signal to reduce stiction.
• Protections: Incorporates fault detection and protection against short circuits, open coil conditions, and over-temperature.
• Form Factor: Typically a compact, enclosed metal module designed for panel or DIN-rail mounting with robust multi-pin connectors.

Advantages and Features

• High Precision Control: Enables extremely accurate and repeatable positioning of the servo valve spool, which is paramount for controlling actuator velocity, force, or position with high fidelity.
• Excellent Dynamic Response: High bandwidth design allows the module to faithfully reproduce rapid changes in the command signal, essential for applications with fast acceleration/deceleration or high-frequency motion profiles.
• Closed-Loop Valve Control: The internal loop using valve LVDT/RVDT feedback ensures the spool accurately follows the command, compensating for valve hysteresis and wear over time.
• Robust Industrial Construction: Built to withstand harsh environmental conditions including vibration, temperature extremes, and electrical noise common in industrial and test settings.
• Comprehensive Diagnostics: Status LEDs and test points provide visual indication of power, signal presence, and fault conditions, aiding in rapid setup and troubleshooting.

Application Cases in Industry

• Flight Simulator & Motion Platforms: Drives the high-response servo valves that control the hydraulic actuators creating realistic motion cues for pilot and driver training simulators.
• Servo-Hydraulic Test Systems: Used in material testing machines (e.g., for fatigue, tensile, and structural testing) to generate precise and dynamic load or displacement waveforms.
• Industrial Presses & Forming Machines: Controls the hydraulic systems for metal stamping presses, injection molding machines, and roll forming mills, where precise pressure and position are critical for quality.
• Steel Mill Automation: Manages the hydraulic actuators for precise gauge control in rolling mills and tension control in continuous processing lines.
• Aerospace Ground Support: Controls actuators in rigs used for testing aircraft landing gear, flight control surfaces, and satellite deployment mechanisms.

Comparison with Competing Products

Competing products include servo controllers from Parker Hannifin, Bosch Rexroth (Indramat), and Atos. The MOOG D136-001-007 differentiates itself through Moog’s deep specialization in high-performance servo valve technology and the optimized pairing between their valves and controllers. Compared to a generic proportional valve amplifier, the D136-001-007 is often pre-configured or more easily tuned for optimal stability and performance with Moog valves. While modern all-digital drives offer extensive software configuration, the MOOG D136-001-007 represents a proven analog/digital hybrid solution valued for its deterministic performance, simplicity, and reliability in mission-critical applications.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the MOOG D136-001-007 primarily as a replacement unit for an existing Moog-based control system or when designing a new system around a compatible Moog servo valve.
  2. Verify the exact compatibility between the amplifier’s output current rating and the coil specifications (resistance, nominal/peak current) of the servo valve it will drive. Mismatches can lead to poor performance or damage.
  3. Ensure the command signal type and range from your upstream controller match the module’s input specifications.
• Precautions:
  1. Critical Calibration Required: Upon installation, the module must be carefully calibrated. This involves nulling the valve (setting the electrical zero to match the mechanical center), adjusting the gain for stable closed-loop operation, and potentially setting a dither signal. Incorrect calibration is a primary cause of system instability.
  2. Power Sequencing: Adhere to recommended power-up/power-down sequences. Applying coil power before the controller electronics are stable can cause an uncontrolled valve jump.
  3. Signal Integrity: Use properly shielded and grounded cables for all low-voltage signal connections (command, feedback). Poor wiring practices can introduce noise, causing erratic valve behavior.
  4. Hydraulic System Cleanliness: The servo valve is a precision component. Ensure the hydraulic fluid meets the required cleanliness standard (e.g., ISO 4406 16/14/11 or better). Contamination is a leading cause of valve failure.
  5. Sourcing and Manuals: Source the MOOG D136-001-007 from authorized distributors. Obtain the specific technical manual for this exact part number, as calibration steps and parameters can vary between models. Do not assume compatibility with other D136 variants.
