METSO IOP114 | 8-Channel Analog Output Module

Description

Product Introduction

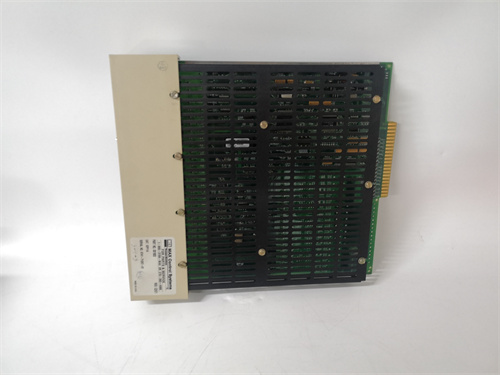

The Metso IOP114 is an 8-channel analog output module from the Metso DNA (now Valmet DNA) distributed control system. If you’re in a pulp mill, power plant, or metals processing facility running Metso automation, this is the card that sends 4-20mA signals from the controller to the field—positioning control valves, adjusting variable frequency drives, or setting speeds on feeders.

It sits in the I/O rack and talks to the field via termination assemblies. The “IOP” designation means it’s an I/O processor; it handles scaling and linearization locally, offloading the main controller. We’ve seen these in lime kiln and recovery boiler applications where loop update speed matters less than reliable, drift-free output.

Key Technical Specifications

Compatible Replacement Models

The IOP114 is still supported by Valmet, but there are functional variations and newer alternatives depending on your system revision:

• ✅ Drop-in Replacement: IOP114 (same part number). If you have an existing Metso DNA system, a new IOP114 will slide in and be recognized automatically. The module stores no configuration locally; all channel scaling and assignment is downloaded from the controller on boot.
• ⚠️ Software Compatible: IOP115. This is a newer module with additional diagnostic features (HART pass-through). It will physically fit in the same slot and pass 4-20mA signals, but the system must have the correct I/O driver version to recognize the HART capability. In a legacy system, it will function as a standard analog output but may report a “module type mismatch” alarm. Budget 1-2 hours for driver updates if you need HART.
• ❌ Hardware Incompatible: IOP111 (Analog Input) or IOP305 (Digital Output). Different functions, different backplane connections. Also, IOP114 modules from the older Metso MAX series use a different form factor and cannot be inserted into a DNA rack. Verify your system generation before ordering.

Frequently Asked Questions (FAQ)

Q: What’s the difference between IOP114 and IOP114B?
The “B” suffix indicates a hardware revision with improved transient protection on the output stages. If you’re in an area with frequent lightning or heavy switching transients (like metal melting shops), the B revision is preferred. Both are electrically interchangeable; the system won’t know the difference. But if you’re replacing a failed unit in a high-noise environment, we’d recommend upgrading to the B revision.

Q: Can I use this module for direct valve positioning?
Yes, but verify the valve’s current requirement. The IOP114 outputs 4-20mA, which typically drives a valve positioner or I/P converter. If you’re driving the valve coil directly (unlikely—that’s usually 24V DC solenoids, not analog), this won’t work. The module is designed for instrumentation loads, not power.

Q: How do I wire field devices to the IOP114?
You need a termination assembly—typically the DTP114 or DTP115 (depending on your system). The IOP114 plugs into the rack, and the rack connects to the termination assembly via a ribbon cable. The DTP provides screw terminals for field wiring. Never land field wires directly on the IOP114 module pins—you’ll damage the connector and void the warranty.

Q: My loop shows 22mA when it should be 12mA. Is the module bad?
Check if the output is in “fail-safe” mode. If the controller loses communication with the IOP114, the module may drive outputs to a pre-configured state—often full scale (20mA+) or zero. Verify communication status in the controller. If comms are good, disconnect the field wiring and measure at the module’s test points (accessible on the DTP termination). If it’s still 22mA with no load, the DAC channel is likely failed. If it reads correctly unloaded, the field wiring has a short or the load resistance is too low.

Q: What’s the maximum cable length from the IOP114 to the field device?
The module itself can drive a 4-20mA signal hundreds of meters, provided the total loop resistance (wire + load) stays under 750 Ohms. For typical 18 AWG wire, that’s roughly 1,500-2,000 meters. The real limitation is electrical noise. In a mill environment, we keep analog runs under 300 meters and use shielded, twisted-pair cable grounded at one end.

Q: Does the IOP114 support HART communication?
The standard IOP114 does not. It filters out HART frequencies. If you need to communicate with HART devices for configuration or diagnostics, you need the IOP115 module and a HART multiplexer or a handheld communicator at the field device. The IOP115 passes the HART signal through to the controller, allowing asset management software to talk to the transmitter.

Q: What causes these modules to fail?
Field-side faults. We see more IOP114 failures from shorted field wiring than from component aging. A short in the valve positioner or a lightning surge coming in on the signal wires takes out the output driver. The module has protection, but it’s not bulletproof. Also, hot-swapping these in a live rack without proper grounding can spike the backplane. Power down the rack if possible, or use a grounded wrist strap and insert firmly in one motion.

Q: Is the IOP114 still manufactured by Valmet?
Yes, Valmet continues to support the DNA I/O line, including the IOP114. However, lead times can vary—typically 4-6 weeks for new builds. If you need a spare faster, the secondary market is reliable, but ensure the module is tested and calibrated. We’ve seen “new surplus” units sit on shelves for 10 years; the electrolytics may need reforming before installation.
