IS200ISBBG2AAB Replacement | Original GE PCB

Description

Product Introduction

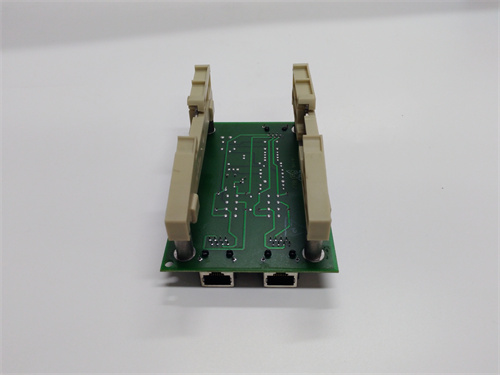

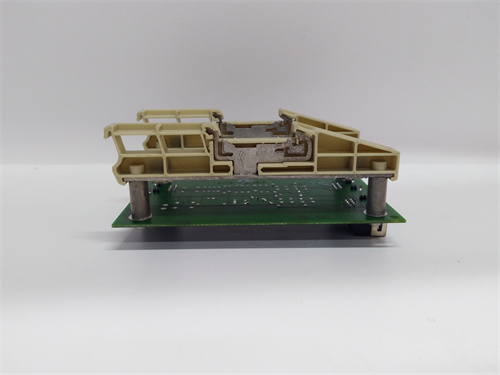

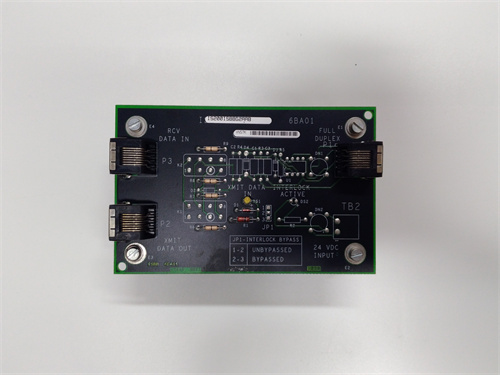

The GE IS200ISBBG2AAB is a bridge board inside the Mark VI rack, handling the communication traffic between the I/O packs and the main control module. In a gas or steam turbine control panel, this is the card that keeps analog and digital signals moving without bottlenecking the processor.

It’s part of the “ISBus” architecture—basically a high-speed serial bus that reduces wiring complexity. If you’re troubleshooting a Mark VI rack and see I/O packs not communicating, this board (or its connections to the PDM) is where we usually start looking.

 Key Technical Specifications

Compatible Replacement Models

When replacing an IS200ISBBG2AAB, you need to pay attention to the functional revision (the “G2” in the part number) and the application software it’s running. Here’s what we typically see:

• ✅ Drop-in Replacement: IS200ISBBG2AAA, IS200ISBBG2AAC. These are functionally identical boards with the same hardware revision. The only difference is the factory firmware load. You can swap these, but you must verify the board’s configuration matches the turbine’s Mark VI configuration files.
• ⚠️ Software Compatible: IS200ISBBG1AAB. This is an older hardware revision. It will physically fit in the rack and communicate, but it lacks some processor speed and memory. Installing a G1 where a G2 is spec’d can cause intermittent “I/O Timeout” faults under heavy load. We advise sticking to the G2 revision.
• ❌ Hardware Incompatible: IS200ISBBHxxxx series. The “H” series boards are for the ISBus Highway, a different part of the network topology. Putting an ISBBH in an ISBBG slot won’t work—the addressing and protocol are different.

Frequently Asked Questions (FAQ)

Q: What does the “ISBB” stand for in the part number?
It stands for “ISBus Bridge.” GE’s naming convention is fairly literal: IS = ISBus, BB = Bridge. The “G2” refers to the hardware version, and “AAB” is the functional revision level that dictates which specific I/O packs it can talk to.

Q: Can I replace this board while the turbine is running?
Technically, yes—the Mark VI racks are designed for hot-swapping I/O. However, we’re cautious. If the bridge board is healthy, leave it. If you must swap it, make sure the replacement has the exact same functional revision (AAB). Mismatches can glitch the ISBus communication and trip the turbine. Plan it for a scheduled outage.

Q: How do I verify the firmware on my IS200ISBBG2AAB?
You’ll need to use the Mark VI Toolbox software. Connect to the controller, navigate to the I/O pack information screen, and read the board’s details. It will display the application code version and the boot code. Match both if you’re cloning a configuration.

Q: My turbine is throwing a “Bridge Comm Fail” alarm. Is the board bad?
Not necessarily. First, reseat the board—corrosion on the backplane connectors is common in humid environments. Next, check the +5V and +24V power supplies from the PDM to the rack. If voltages are low, the board won’t communicate. If power is good and reseating doesn’t work, then yes, the bridge board is likely the culprit.

Q: What’s the difference between the IS200ISBBG2AAB and the IS200ISBBG2AAA?
The hardware is the same. The last three letters (“AAB” vs “AAA”) indicate the specific application code pre-loaded at the factory. GE did this to match the board to specific turbine configurations. If you have an AAB board, replacing it with an AAA board may require re-flashing the firmware via Toolbox. We recommend matching the suffix to avoid extra configuration time.

Q: Does this board require a backup battery?
No. The IS200ISBBG2AAB does not have an onboard battery. Configuration data is stored in non-volatile EEPROM. However, the main control module (CPC) in the rack does have a battery that should be checked annually.
