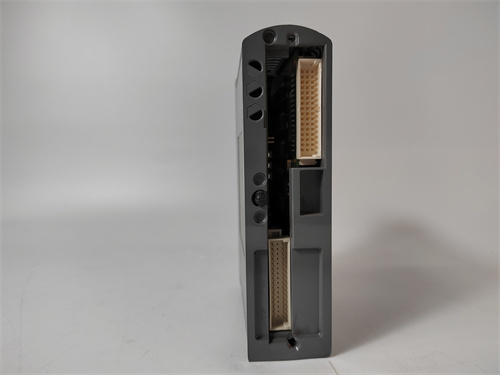

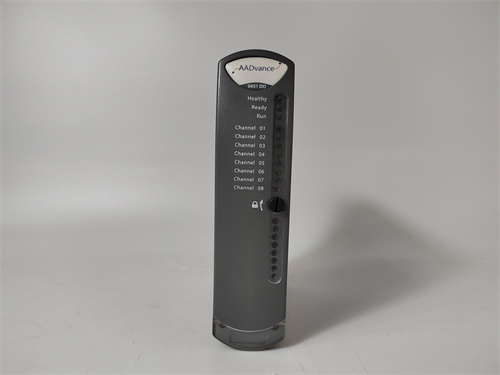

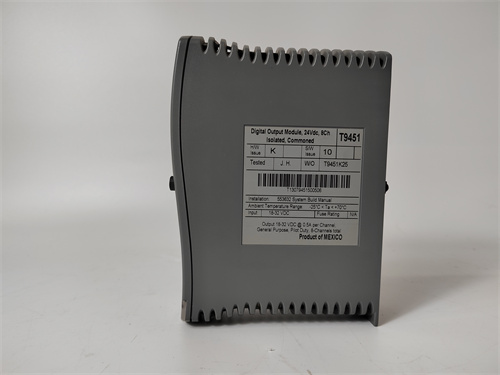

ICS TRIPLEX T9451

Description

Product Description

Product Parameters

Advantages and Features

1. TMR Fault Tolerance: ICS TRIPLEX T9451’s triple redundant architecture ensures reliable operation even if two internal channels fail, avoiding unplanned downtime in critical processes.
2. Dual-Functional Flexibility: 16 configurable I/O channels adapt to both signal collection and device control, reducing the need for multiple specialized modules.
3. Harsh Environment Adaptability: IP65 protection, channel-level isolation, and wide temperature range resist electromagnetic interference, dust, and humidity in industrial settings.
4. Smart Communication & Safety Design: HART protocol support enables smart instrument integration, while fault-safe output modes enhance system safety during anomalies.
5. Easy Maintenance: Hot-swappable design and DIN rail mounting allow on-line replacement and installation without system interruption.
6. Safety-Certified Reliability: SIL 3 compliance meets the highest safety requirements for safety instrumented systems in high-risk industries.

Application Cases in Application Fields

• Petrochemical Refinery: ICS TRIPLEX T9451 was integrated into the ESD system to control emergency shutdown valves and collect pipeline leak detection signals, with TMR redundancy ensuring 99.99% availability during critical processes.
• Nuclear Power Plant: It served as a core component of the SIS, controlling safety-related actuators and transmitting status data via Modbus TCP/IP, leveraging IP65 protection and isolation to withstand harsh nuclear plant environments.
• Offshore Drilling Platform: ICS TRIPLEX T9451 was deployed in the fire and gas (F&G) system, driving alarms and emergency equipment while collecting sensor signals, with dual redundant power adapting to marine power fluctuations.
• Metallurgical Plant: It controlled high-temperature furnace valves and collected conveyor system status signals, using fault-safe output modes to prevent accidents during abnormal operations and reducing production downtime by 30%.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

• Choose ICS TRIPLEX T9451 for SIL 3-certified safety systems requiring TMR redundancy, configurable I/O channels, and harsh environment resistance.
• Prioritize it for petrochemical, nuclear power, offshore, and metallurgical applications where reliable signal processing and fault-tolerant control are critical.

Precautions

• Use dual redundant 24VDC power supply to ensure stable operation of ICS TRIPLEX T9451 and avoid single power failure risks.
• Configure I/O channels and fault output modes according to specific application requirements to match field devices and safety logic.
• Install with shielded cables and ensure proper grounding to enhance anti-interference capability and maintain isolation effectiveness.
• Regularly check diagnostic logs and status indicators to detect channel faults or communication anomalies early.
• Follow manufacturer guidelines for hot-swap operations and avoid improper wiring to prevent module damage or signal loss.
