ICS Triplex T9432

Description

Product Overview

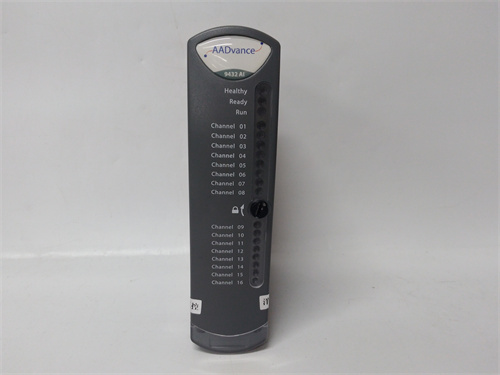

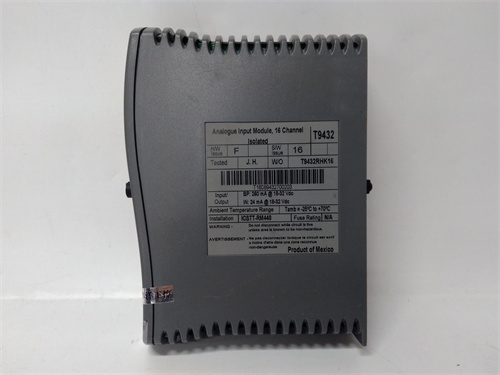

The ICS Triplex T9432 is a robust and highly reliable analog input module designed for the Trusted® TMR (Triple Modular Redundant) safety and critical control system. This module serves as a primary interface for high-fidelity analog signals from critical process sensors, such as thermocouples or RTDs (Resistance Temperature Detectors), used in temperature monitoring applications. The core function of the ICS Triplex T9432 is to accept three independent low-level millivolt or resistance signals from a single field sensor via separate, isolated channels, perform continuous validation and mid-value voting, and deliver a single, high-integrity temperature value to the TMR controller. For detailed technical specifications, installation guidelines, and certification documents, please refer to the official product resource: ICS Triplex T9432. The deployment of the T9432 module is critical in applications where accurate and fault-tolerant temperature measurement is essential for safe process operation or equipment protection, ensuring that a single point of failure in the measurement chain cannot lead to a hazardous condition.

Product Parameters and Specifications

• Function: TMR Temperature Input Module (e.g., for Thermocouple or RTD).
• Input Type: Designed for specific low-level analog signals; common versions support Thermocouple types (J, K, T, E, etc.) or RTD types (Pt100, Pt1000).
• Architecture: True Triple Modular Redundant (TMR) with three isolated input channels per field point.
• Safety Integrity Level: Designed to meet SIL 3 requirements per IEC 61508/IEC 61511 standards.
• Number of Channels: Typically configurable for multiple temperature points (e.g., 4, 8, or 16 channels), with each point utilizing TMR architecture.
• Cold Junction Compensation (CJC): Integral, high-accuracy CJC for thermocouple versions to correct for reference junction temperature.
• Excitation Current: For RTD versions, provides a stable, fault-tolerant excitation current for the three-wire RTD circuit.
• Diagnostics: Continuous online diagnostics include sensor break detection, out-of-range detection, and cross-channel comparison to detect over 99% of dangerous failures.
• Isolation: High-grade isolation between field inputs, channel triplets, and the system backplane.

Advantages and Key Features

The ICS Triplex T9432 provides unmatched advantages for safety-critical temperature measurement. Its fundamental feature is hardware-based TMR architecture, which ensures fault tolerance; a single fault in the sensor, its wiring, or one of the three internal input channels will not cause an incorrect or lost measurement, preventing spurious trips or dangerous undetected failures. The module offers extremely high diagnostic coverage specifically tailored for temperature sensors, including lead break detection and common failure mode identification. This design results in a very low Probability of Failure on Demand (PFD) for the measurement function. The ICS Triplex T9432 supports hot-swappable replacement in most configurations, enabling maintenance without a process shutdown. Its precision signal conditioning ensures high measurement accuracy and stability over time and temperature variations, which is crucial for precise control and protection schemes.

Application Cases in Industry

This module is essential in processes where temperature is a key safety or quality parameter. In Gas Turbine and Combined Cycle Power Plants, the T9432 monitors exhaust gas temperatures, bearing temperatures, and flame detection temperatures for critical protection against turbine damage. Within Chemical and Petrochemical Reactors, it provides fault-tolerant measurement of reactor bed or vessel skin temperature for runaway reaction prevention. For Fired Heaters and Boilers in refineries, it monitors tube metal temperatures to prevent overheating and tube rupture. The ICS Triplex T9432 is also deployed in Nuclear Power plants for safety-related cooling system temperature monitoring and in LNG Liquefaction Trains for monitoring cryogenic exchanger temperatures.

Comparison with Competing Products

Compared to standard temperature input modules in PLCs or DCS systems, the T9432 is in a different category, being specifically designed and certified for safety instrumented functions (SIF). Competing safety system temperature modules from vendors like HIMA or Triconex offer similar SIL 3 capability. The key differentiator for the ICS Triplex T9432 is its dedicated hardware TMR at the point level, whereas some competitors may use a 1oo2D (one-out-of-two with diagnostics) architecture for analog inputs. The TMR approach provides inherent fault masking without a trip on the first fault, potentially offering higher availability. The comparison often centers on the required safety function, diagnostic strategy preferences, and compatibility with the existing control system infrastructure.

Selection Suggestions and Precautions

• Selection Advice:
  1. Sensor Type Compatibility: It is imperative to select the correct variant of the ICS Triplex T9432 that matches your field sensor type—thermocouple (and specify type) or RTD (and specify wiring: 2-wire, 3-wire, 4-wire).
  2. Safety Requirement: Confirm the Safety Integrity Level (SIL) assessment requires a SIL 3 capable temperature input for the Safety Instrumented Function (SIF).
  3. System Compatibility: Ensure the module is compatible with your Trusted® rack model and main processor (e.g., T8461).
  4. Environmental Considerations: For thermocouple versions, ensure the use of proper thermocouple extension wire of the same type. For RTDs, ensure correct wiring to compensate for lead resistance.
• Important Precautions:
  1. Wiring Segregation: The three independent sensor wires for each TMR channel must be routed in separate conduits or trays to maintain physical and electrical separation, preserving the system’s fault tolerance.
  2. Sensor Quality: Use high-quality, appropriately rated temperature sensors. The module’s advanced diagnostics cannot compensate for a fundamentally inaccurate or poorly installed sensor.
  3. Calibration: While the module is highly stable, periodic calibration of the entire loop (sensor, wiring, T9432 input) may be required as part of the proof testing regime to maintain the SIF’s PFD.
  4. Configuration: The sensor type, temperature range, and diagnostic parameters must be correctly configured in the Trusted system software for accurate operation and proper fault reporting.
