ICS TRIPLEX T9431

Description

Product Description

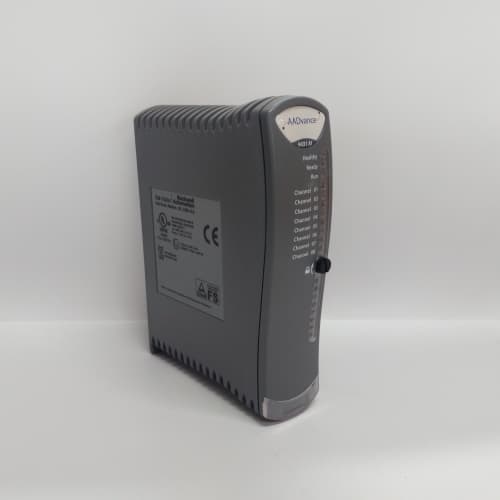

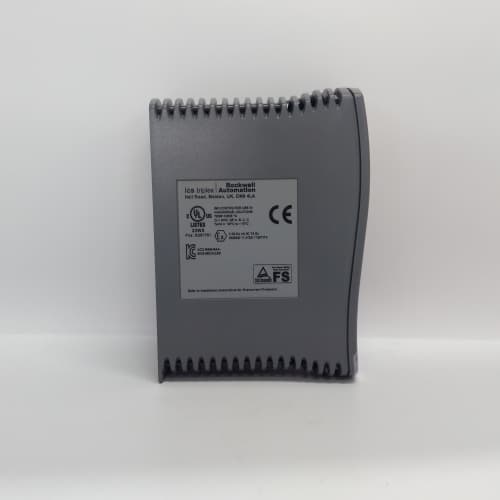

ICS TRIPLEX T9431 is a Trusted Controller Main Processor Module for the ICS Triplex Trusted TMR System. This module, the T9431, serves as the central computational engine for a single channel within a Triple Modular Redundant controller. Its primary function is to execute the safety and control application logic, perform I/O data processing, and participate in the high-speed, hardware-based 2-out-of-3 voting process with its two sibling processor modules. The ICS TRIPLEX T9431 is designed for extreme reliability and deterministic performance in Safety Instrumented Systems (SIS) and critical process control applications. It is the core component that ensures a fault in any single channel does not compromise the safety function. For engineers designing or maintaining high-availability safety systems, the T9431 represents the critical logic-solving hardware at the heart of the TMR architecture.

Product Parameters / Technical Specifications

• Manufacturer: ICS Triplex (now part of Rockwell Automation)
• System: Trusted® TMR (Triple Modular Redundant) System
• Functional Designation: Main Processor Module for a single TMR channel.
• Architecture: Part of a TMR configuration where three identical T9431 modules operate in parallel.
• Processor: High-performance, dedicated real-time processor for deterministic execution of safety logic.
• Memory: Includes application memory, system memory, and non-volatile storage for the firmware and safety application.
• Communication Ports:
  • TMR Network: High-speed dedicated ports for synchronization and voting communication with the other two processor modules.
  • I/O Network: Interface to the Trusted I/O subsystem.
  • Engineering Port: For connection to the programming and diagnostic workstation.
• Voting: Executes hardware-assisted, mid-value select voting on all critical data with the other two channels.
• Diagnostics: Continuous built-in self-test (BIST) and cross-channel monitoring to detect and isolate faults within its own channel.
• Certifications: Designed to meet stringent functional safety standards such as IEC 61508 and IEC 61511, typically suitable for SIL 3 applications.

Advantages and Key Features

• Fault-Tolerant TMR Architecture: The fundamental purpose of the ICS TRIPLEX T9431 is to enable a system that can suffer a random hardware failure in any single channel without causing an unsafe condition or spurious trip, providing ultimate safety and availability.
• Deterministic, High-Integrity Execution: Provides the guaranteed, millisecond-level response times required for critical safety functions like Emergency Shutdown (ESD).
• Hardware-Based Voting: Voting on critical I/O and data is performed in dedicated hardware, ensuring speed and reliability independent of the application software, a key feature of the T9431.
• Comprehensive Diagnostics: Continuously monitors its own health. A detected internal fault causes the module to flag itself to the voter, which then ignores its output while the remaining two healthy channels maintain operation.
• Hot-Replacement Capability: A faulty processor module can be replaced while the system remains online under the protection of the remaining two healthy channels, maximizing operational uptime.
• Proven in Extreme Applications: Deployed in the world’s most critical oil & gas, petrochemical, and power generation applications where failure is not an option.

Application Cases in Industry

• Emergency Shutdown Systems (ESD): The primary application for the ICS TRIPLEX T9431 is as the logic solver in SIL 3 rated ESD systems for offshore platforms, pipelines, and refineries.
• Fire & Gas Detection and Mitigation (F&G): Used in systems that detect hazardous conditions and initiate alarm and suppression actions.
• Turbomachinery Control (TMC): Protects critical compressors and turbines from damage due to overspeed, high vibration, or lubrication failure.
• Burner Management Systems (BMS): Provides safety logic for combustion control in fired heaters and boilers.

Comparison with Competing Products

Selection Suggestions and Precautions

1. TMR System Requirement is Absolute: The ICS TRIPLEX T9431 is only for use in a Trusted TMR system. It cannot function as a standalone or dual-redundant controller.
2. Firmware and Series Synchronization is Critical: All three T9431 modules in a TMR rack must have identical firmware versions and belong to the same hardware series. Mismatched modules will fail to synchronize.
3. Channel-Specific Replacement: A replacement module must be installed in the correct physical slot (Channel A, B, or C) corresponding to the failed channel it is replacing.
4. Application Backup is Non-Negotiable: Always have a verified, current backup of the complete TMR safety application from the engineering workstation before handling any processor module. The application must be downloaded to a new module.
5. Handle with Extreme ESD Care: Use rigorous electrostatic discharge (ESD) precautions—grounded wrist strap, anti-static mat, and bag. These are highly sensitive devices.
6. Sourcing from Certified Safety System Specialists: Source this module only from Rockwell Automation/ICS Triplex or their authorized, certified system integrators specializing in Trusted systems. They can verify firmware, provide configuration support, and ensure the module is tested for TMR operation. Unauthorized sources pose an extreme risk.
