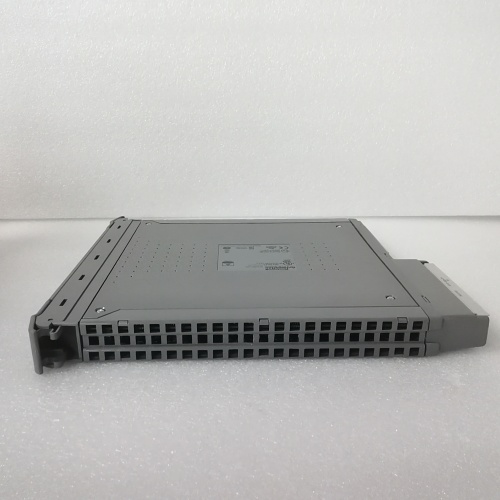

ICS Triplex T8461C

Description

Product Overview

The ICS Triplex T8461C is a high-performance, triple modular redundant (TMR) central processing unit (CPU) module for the Trusted® control system platform. This module represents the “brain” of a safety and critical control solution, executing the user-configured application logic with the highest levels of fault tolerance, availability, and deterministic performance. The primary role of the ICS Triplex T8461C is to perform synchronized execution on three independent processor channels, perform mid-value voting on inputs and cross-channel data, and issue voted, fault-tolerant outputs to maintain safe and continuous process operation.. As a core component, the performance and features of the T8461C directly define the capability of the entire safety instrumented system (SIS) or critical control application it governs.

Product Parameters and Specifications

• Function: TMR Central Processing Unit (CPU) Module.
• Architecture: True hardware-based Triple Modular Redundant (TMR) with three independent 32-bit processor channels operating in lockstep.
• Safety Certification: Designed to meet SIL 3 (Safety Integrity Level) requirements as per IEC 61508 and IEC 61511 standards.
• Memory: Integrated user memory for application logic, typically in the megabyte range, with error detection and correction (EDAC).
• Scan Time: Capable of very fast, deterministic scan times (e.g., in the millisecond range), suitable for high-speed critical loops.
• Communication: Integrates with the Trusted backplane (via modules like the 9802) and supports multiple industrial network interfaces (e.g., Ethernet, Modbus TCP, OPC) for communication with DCS, PLCs, and HMIs.
• Diagnostics: Continuous online self-diagnostics and cross-channel monitoring to detect over 99% of possible faults.
• Redundancy: Supports CPU redundancy (1oo1D, 2oo3 voting at the system level) for enhanced availability when configured in multi-CPU systems.

Advantages and Key Features

The ICS Triplex T8461C offers unparalleled advantages for critical applications. Its core strength is hardware-based TMR architecture, which provides fault masking—allowing the system to continue correct operation without interruption even in the presence of a single hardware fault in any processor channel. This leads to extremely high availability (>99.99%) and a very low Probability of Failure on Demand (PFD). The module’s deterministic execution ensures predictable and repeatable scan times, which is critical for time-sensitive safety functions. It features extensive diagnostic coverage that not only detects faults but can also pinpoint the faulty channel for repair. Furthermore, the ICS Triplex T8461C supports online maintenance and module replacement (hot swap) without requiring a process shutdown, maximizing operational uptime. Its robust design is built for long-term reliability in harsh industrial environments.

Application Cases in Industry

The T8461C CPU is deployed as the core controller in the most demanding safety and critical control applications. In Oil & Gas, it is the standard for Emergency Shutdown Systems (ESD) on offshore platforms, subsea controls, and pipeline management, where it executes logic to prevent catastrophic events. For Turbomachinery Control (gas/steam turbines, compressors), its fast, deterministic scan is essential for overspeed protection, vibration monitoring, and sequencing logic. In Power Generation, it controls burner management systems (BMS) and provides turbine trip functions. The ICS Triplex T8461C is also fundamental in Fire & Gas (F&G) systems across refineries and chemical plants, processing signals from hundreds of detectors to initiate alarms and mitigation actions. Any process where an unplanned shutdown results in massive financial loss or safety risk is a candidate for this controller.

Comparison with Competing Products

Compared to other safety system CPUs, such as those from HIMA (HIMax series) or Emerson (DeltaV SIS with CHARMs), the ICS Triplex T8461C is distinguished by its dedicated, hardware-locked TMR architecture. Some competitors utilize a software-based TMR approach on dual or multi-processor hardware, where the Trusted system’s hardware voting at the chip level can offer superior determinism and inherent fault containment. Compared to a high-availability PLC (e.g., Siemens S7-400H or Rockwell ControlLogix with redundancy), the T8461C is specifically designed and certified for safety applications (SIL 3), whereas HA PLCs are primarily for availability (often up to SIL 2). The choice often hinges on the required SIL level, the need for hardware fault tolerance, and existing plant standards.

Selection Suggestions and Precautions

• Selection Advice:
  1. Safety Requirement: Confirm the target Safety Instrumented Function (SIF) requires a SIL 3 capable controller. The T8461C is overkill for SIL 1 applications.
  2. System Scale: Evaluate the I/O count, network requirements, and application logic size to ensure the ICS Triplex T8461C‘s memory and performance are adequate. Consider the need for redundant CPU racks.
  3. Legacy Compatibility: When upgrading or expanding an existing Trusted system, verify the generation compatibility of the T8461C with existing I/O (e.g., T8461 vs. T8461C) and engineering tools.
  4. Lifecycle Status: Consult with Rockwell Automation (the current owner) to confirm the product’s lifecycle phase and long-term support commitment.
• Important Precautions:
  1. Certification Integrity: Any modification to the application software or hardware configuration must be managed under a strict safety lifecycle management process to maintain the system’s SIL certification.
  2. Specialized Knowledge: Configuration, programming, and troubleshooting of the T8461C require specialized training on the Trusted software suite (e.g., Trusted Toolset).
  3. Testing: Regular functional testing of the entire SIF, including the CPU logic, is mandatory. The system provides extensive diagnostic capabilities, but proof testing is still required.
  4. Environmental Control: Ensure the control cabinet housing the CPU meets specified temperature, humidity, and cleanliness standards to ensure long-term reliability.
