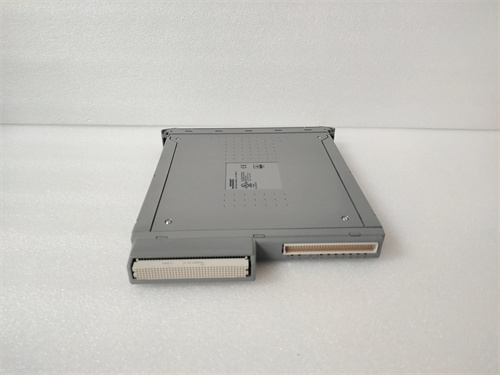

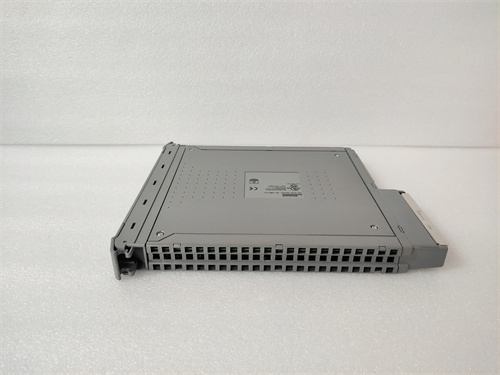

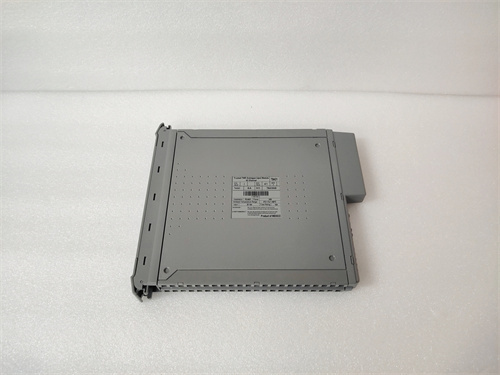

ICS Triplex T8431

Description

Product Description
The ICS Triplex T8431 is a high-integrity fault-tolerant controller module designed for critical safety applications. Manufactured by ICS Triplex (now part of Rockwell Automation), this module is the core processing unit within the Trusted TMR (Triple Modular Redundant) system. Its primary function is to execute safety logic with ultra-high reliability, leveraging three independent channels that vote on outputs to ensure continuous and safe operation even in the event of a hardware fault. Implementing the ICS Triplex T8431 is essential for achieving SIL 3 (Safety Integrity Level) according to IEC 61508 standards in the most demanding industrial environments.

Product Parameters

• System Architecture: Triple Modular Redundant (TMR), 2-out-of-3 voting.
• Safety Integrity Level: Certified for SIL 3.
• Processor: Three independent parallel channels.
• Memory: Redundant, fault-tolerant memory for application logic.
• Diagnostics: Comprehensive built-in self-test (BIST) and online diagnostics.
• Communication: Supports proprietary and open network interfaces for integration.
• MTBF (Mean Time Between Failures): Typically exceeds 70 years.
• Environmental Rating: Designed for harsh industrial conditions (specific temperature, humidity, and EMI ratings apply).

Advantages and Features
The key advantage of the ICS Triplex T8431 is its unparalleled fault tolerance. The TMR architecture ensures no single point of failure can cause a dangerous shutdown or control failure. Its main features include high availability (>99.99%), hot-swappable capability for easy maintenance without process shutdown, and a robust design that minimizes spurious trips. The module’s extensive diagnostic coverage provides operators with deep insight into system health, facilitating predictive maintenance.

Application Cases in Application Fields
This controller is deployed in sectors where safety and availability are paramount.

• Oil & Gas: Emergency Shutdown (ESD) systems for offshore platforms and fire & gas detection systems in refineries.
• Power Generation: Turbine control and burner management systems (BMS) to prevent catastrophic failures.
• Chemical Processing: Critical interlock and shutdown systems for high-integrity pressure protection (HIPPS).
• Pharmaceutical: Automated safety interlocks in batch processes involving hazardous materials.

Comparisons with Competing Products
Compared to standard PLCs or even dual-redundant safety controllers, the ICS Triplex T8431 offers a higher level of redundancy. While competitors like Siemens SIMATIC S7-400FH (dual-channel) or HIMA HiQuad X (also TMR) offer similar SIL 3 ratings, the Trusted system with the T8431 is often noted for its extensive field-proven history in extreme applications and its exceptional hardware fault tolerance. It may have a higher initial cost than duplex systems but provides greater availability, reducing the risk of costly process downtime.

Selection Suggestions and Precautions

• Selection: Choose the ICS Triplex T8431 when your application requires the highest possible safety (SIL 3) and maximum process availability to avoid trip-related production losses. It is ideal for large, critical asset protection.
• Precautions: Ensure proper integration training, as programming and configuration use specialized software (Trusted Toolset). Consider the total system cost, including licensing and I/O modules. Always verify compatibility with existing field instrumentation and networks. Spare parts, including the ICS Triplex T8431, should be sourced from authorized distributors to guarantee authenticity and support.
