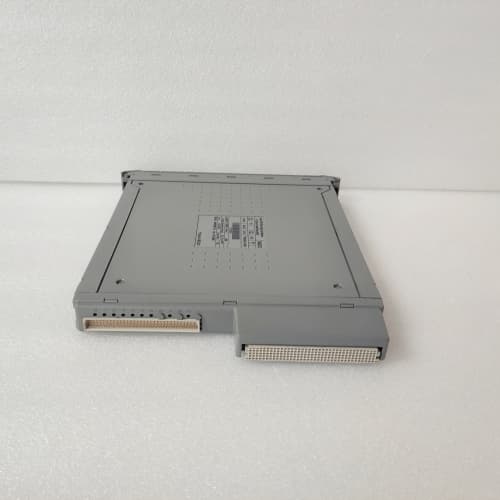

ICS TRIPLEX T8403CX

Description

Product Description

Product Parameters

Advantages and Features

1. TMR Fault Tolerance: ICS TRIPLEX T8403CX’s triple redundant channels ensure system operation even if a single channel fails, eliminating unplanned downtime in critical processes.
2. Comprehensive Diagnostics: Automatic self-test, line monitoring (open/short circuit detection), and SOE reporting enable rapid fault location and analysis.
3. Harsh Environment Resilience: IP65 protection, wide temperature range, and 2500VDC isolation resist electromagnetic interference, dust, and voltage surges.
4. Hot-Swap Capability: On-line maintenance without system shutdown reduces maintenance time and production losses.
5. Safety-Certified: SIL 3 compliance meets the highest safety requirements for safety instrumented systems in high-risk industries.
6. Flexible Integration: Multiple communication protocols and modular design simplify integration with existing PLC/DCS and SIS.

Application Cases in Application Fields

• Nuclear Power Plant: ICS TRIPLEX T8403CX was used in reactor safety protection systems, collecting critical sensor signals with TMR redundancy to ensure reliable operation during power fluctuations, achieving 99.99% availability.
• Petrochemical Refinery: It served as the core of the Safety Instrumented System (SIS), monitoring 40 process switches and transmitting emergency shutdown signals, with IP65 protection and anti-interference design adapting to corrosive and high-noise environments.
• Aerospace Test Facility: ICS TRIPLEX T8403CX integrated with test control systems to acquire digital signals from aerospace components, leveraging 1ms SOE resolution to record test data accurately and meet strict quality control requirements.
• Metallurgical Plant: Deployed in high-temperature smelting process control, its wide operating temperature range and TMR architecture ensured stable signal acquisition under extreme heat and vibration, reducing production accidents by 35%.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

• Choose ICS TRIPLEX T8403CX for critical control systems requiring SIL 3 safety certification, TMR redundancy, and harsh environment resistance.
• Prioritize it for nuclear power, petrochemical, aerospace, and metallurgical applications where continuous operation and fault tolerance are non-negotiable.

Precautions

• Use 24VDC power supply and ensure the operating environment stays within -40°C to 70°C to maintain ICS TRIPLEX T8403CX performance.
• Install with shielded cables and ground the shield layer properly to enhance anti-interference capability.
• Follow T8100 chassis or DIN rail mounting guidelines for stable mechanical connection and heat dissipation.
• Regularly check LED indicators and SOE logs to detect potential faults early; clean ventilation ports quarterly to prevent overheating.
• Only perform hot-swap operations in accordance with the manufacturer’s procedures to avoid signal loss or module damage.
