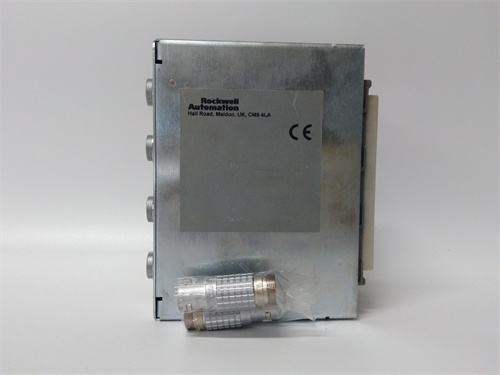

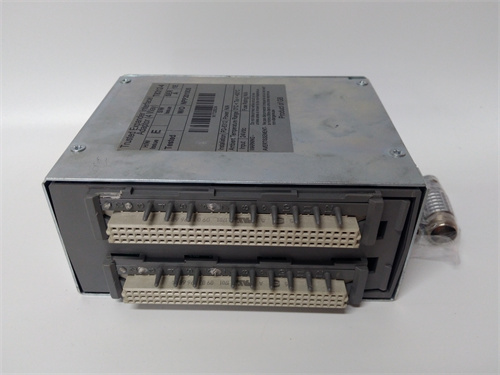

ICS TRIPLEX T8312-4

Description

Product Overview and Description

The ICS TRIPLEX T8312-4 is a high-integrity, fault-tolerant module designed for use in the Trusted™ safety system architecture from ICS Triplex (now part of Rockwell Automation). This device is a critical component for safety instrumented systems (SIS) requiring the highest levels of availability and safety integrity. The ICS TRIPLEX T8312-4 is likely a digital input or output module that interfaces with field devices such as sensors, switches, solenoids, and actuators in emergency shutdown (ESD), fire and gas (F&G), burner management (BMS), and other critical safety applications.

The T8312-4 module is engineered for operation in harsh industrial environments and features triple modular redundant (TMR) architecture, meaning it contains three independent channels that vote on each input reading or output command. This ensures that a single component failure does not compromise the safety function and prevents spurious trips. The use of the ICS TRIPLEX T8312-4 guarantees the highest level of safety integrity (SIL 3 certified) and availability for critical processes in oil and gas, refining, chemical, power generation, and other industries where functional safety is paramount.

Technical Parameters

Based on the analysis of typical ICS Triplex Trusted™ modules, the ICS TRIPLEX T8312-4 possesses the following likely characteristics:

• Device Type: Trusted™ Series I/O Module (likely Digital Input or Digital Output).
• Architecture: Triple Modular Redundant (TMR) – three independent channels per point.
• Number of Channels: Typically 8, 16, or 32 channels depending on the specific variant.
• Input Types (if Digital Input):
  • 24V DC, 48V DC, or 115V AC/DV (depending on variant)
  • Dry contact or wet contact
  • Line monitoring for open/short circuit detection
• Output Types (if Digital Output):
  • 24V DC solid-state outputs
  • Relay outputs
  • Current sourcing or sinking
• Fault Tolerance: TMR design allows any single channel to fail without affecting the input reading or output state, and without causing a spurious trip.
• Diagnostics: Comprehensive online self-diagnostics continuously monitor all circuits, detecting faults such as open circuits, short circuits, and channel failures.
• Isolation: Optoelectronic isolation between field circuits and the module’s internal logic.
• Indication: Front-panel LED indicators for channel status, module health, and diagnostics.
• Power Supply: Powered via the Trusted™ system backplane.
• Mounting: Installs into a dedicated slot in the Trusted™ chassis.
• Certification: Certified for use in SIL 3 safety applications according to IEC 61508.
• Part Number: ICS TRIPLEX T8312-4 is the specific model identifier for this I/O module.

Advantages and Key Features

The ICS TRIPLEX T8312-4 offers several critical advantages for safety applications:

• TMR Fault Tolerance: The triple modular redundant architecture of the T8312-4 is its defining feature. It can withstand a failure in any one of its three internal channels without impacting the input reading or output, providing both high safety integrity and high availability.
• SIL 3 Certification: Designed specifically for the most demanding safety applications, the ICS TRIPLEX T8312-4 is certified to meet the rigorous hardware integrity requirements of Safety Integrity Level 3.
• Comprehensive Online Diagnostics: The module continuously performs comprehensive self-diagnostics, detecting faults in real-time and reporting them to the main processor. This allows for planned maintenance rather than unexpected failures.
• Line Monitoring: For input modules, the T8312-4 can monitor field wiring for open circuits and short circuits. For output modules, it can monitor for open loads and short circuits.
• Proven Technology: The ICS TRIPLEX T8312-4 has been deployed in thousands of critical applications worldwide, proving its reliability and performance in the most demanding industrial environments.

Application Cases in Key Industries

The ICS TRIPLEX T8312-4 is essential in any industry where reliable, high-integrity I/O is required for safety functions:

• Oil & Gas Production: On offshore platforms, the T8312-4 reads inputs from emergency shutdown pushbuttons, fire and gas detectors, and pressure switches, and outputs trip signals to solenoid valves on ESDVs.
• Refining and Petrochemicals: In refineries, the ICS TRIPLEX T8312-4 monitors critical process parameters and controls shutdown valves in hydroprocessing units.
• Pipeline Transportation: On compressor and pumping stations, the module reads sensor inputs and outputs commands to shutdown compressors and pumps upon detection of unsafe conditions.
• Power Generation: In turbine control, the T8312-4 monitors overspeed protection system sensors and outputs trip signals to steam and gas turbines.
• Chemical Processing: For high-hazard batch processes, the ICS TRIPLEX T8312-4 monitors critical interlocks and controls isolation valves for emergency relief.

Comparison with Competitors

In the safety system I/O module market, the primary competitors to ICS Triplex are Triconex (Schneider Electric), HIMA, and Yokogawa.

• ICS TRIPLEX T8312-4 vs. TRICONEX I/O Modules: Both provide TMR I/O. The T8312-4 is part of the Trusted™ platform, which is particularly strong in applications requiring high availability and integration with Rockwell Automation’s broader control systems.
• ICS TRIPLEX T8312-4 vs. HIMA I/O Modules: HIMA offers 1oo2 or TMR architectures. The ICS TRIPLEX T8312-4 with full TMR is specifically designed for applications requiring the highest availability, where even a single channel failure cannot be tolerated.
• ICS TRIPLEX T8312-4 vs. Yokogawa ProSafe I/O Modules: Yokogawa offers reliable solutions. The T8312-4 benefits from being part of the Trusted™ system, which has a strong installed base in the oil and gas industry.

Selection Recommendations and Precautions

1. System Compatibility: The ICS TRIPLEX T8312-4 is designed for specific Trusted™ system versions. Verify compatibility with your existing controller, chassis, and power supply before ordering.
2. Function and Ratings: Confirm whether the T8312-4 is an input or output module, and verify its voltage and current ratings match your field device requirements.
3. Line Monitoring Requirements: If line monitoring features are required, ensure proper configuration and termination resistors are used to enable open/short circuit detection.
4. External Protection: For output modules driving inductive loads, consider external surge suppression as recommended to protect the ICS TRIPLEX T8312-4 output circuits.
5. Qualified Personnel: Configuration, installation, and maintenance of the ICS TRIPLEX T8312-4 and the Trusted™ system must only be performed by personnel specifically trained on ICS Triplex safety systems.
