ICS TRIPLEX T8153 | Trusted TMR 40-Channel Digital Output

Description

Product Introduction

That offshore platform in the North Sea—the one with the gas compression train—had a “valve failed to close” event during a scheduled ESD test. The production operator watched the screen, waiting for the blowdown valve to show closed. It didn’t. The tech on shift swapped the solenoid, the cable, even the marshalling cabinet. Nothing. I pulled the history on the T8153 module driving that valve. Channel 22 had logged a “field open circuit” fault three weeks earlier, but nobody had noticed because the fault LED on the module was hidden behind a cable bundle. One channel, one missed alarm, one failed test. We replaced the module, and the next test passed.

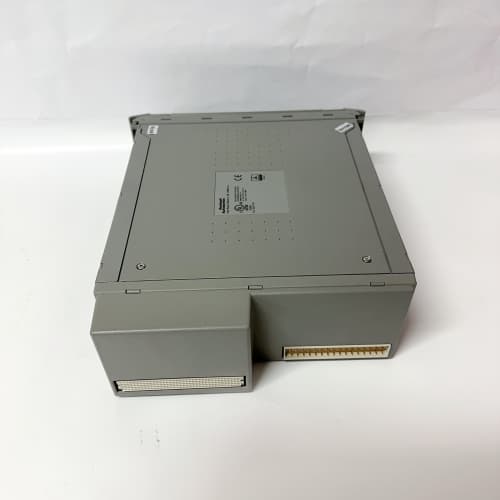

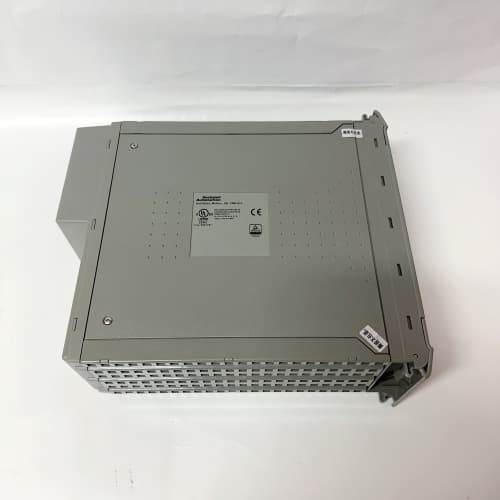

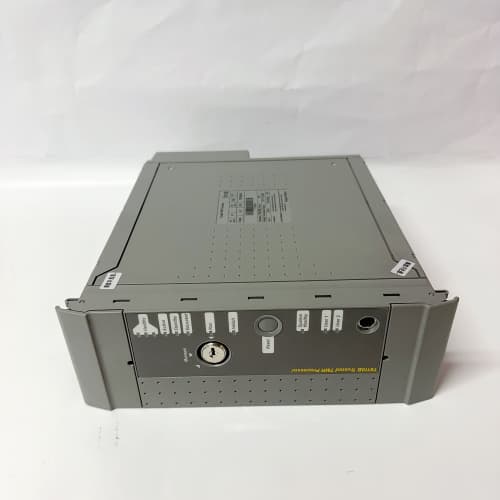

The ICS TRIPLEX T8153 is a 40-channel digital output module from the Trusted TMR family. It’s built for the highest safety integrity levels—SIL 3 and above. Inside, it’s not one output circuit but three, voting 2-out-of-3 to determine the actual output state. If one circuit fails, the other two keep the output correct. The module also monitors the field wiring: open circuit, short circuit, and voltage levels. It reports faults to the processor and to the front-panel LEDs. The T8153 lives in a Trusted TMR rack, next to the power supply and the processor. In a safety system, it’s the final link to the field—solenoids, motor starters, alarms. If it fails, the process stops.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A TMR safety module gets the most thorough test we do. Here’s our process.

1. Incoming Verification
   • Match the model: T8153. (There’s a T8151 with fewer channels—different module.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front panel for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the revision sticker (Rev. 02 is most common).
2. Power-On Self-Test
   • Install the module in a Trusted test rack with a known-good power supply and processor.
   • Apply rack power—watch the “HEALTHY” LED.
   • Connect to the Trusted engineering workstation, verify the module is recognized and passes its internal diagnostics.
3. TMR Voting Test
   • Configure a channel for output.
   • Measure the output voltage at the field terminal with no load.
   • Simulate a fault in one of the three internal circuits (using test software).
   • Verify the output remains correct (voting works).
   • Repeat for all 40 channels (sample basis, 10% per test run).
4. Output Functional Test
   • Connect a 24V DC load (a 24V lamp or resistor) to each channel in sequence.
   • Command the channel on/off from the processor.
   • Verify the lamp lights, measure voltage drop (<1V at 2A).
   • Test all 40 channels simultaneously at 1A load—monitor power supply voltage.
5. Line Monitoring Test
   • For a sample of channels, simulate open circuit (disconnect load).
   • Verify the fault is detected and reported to the processor.
   • Simulate short circuit (connect output to common).
   • Verify the fault is detected and the output is disabled (per design).
6. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
7. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all outputs at 1A load.
   • Monitor for any fault indications or output dropouts.
8. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
9. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—voting test results, line monitoring check.

Field Replacement Pitfalls

I’ve swapped these in refineries, chemical plants, and offshore platforms. Here’s where people go wrong.

❗Line Monitoring Settings
The T8153 can be configured for different line monitoring thresholds. If you replace a module without uploading the old configuration, the new one may have default thresholds that don’t match your field wiring (e.g., expecting a 10kΩ pull-up when you have 1kΩ). Always back up the config first.

Field Power Polarity
The outputs are sourcing (PNP). That means the load must be connected between the output and common (0V). If you wire it between +24V and the output, it won’t work—and you might damage the module.

External Fusing
The module has no per-channel fuses. If a field wire shorts to ground, the internal output transistor will try to supply unlimited current—until it fails. Always use external fuses (2A fast-blow) on each channel.

TMR Voting Surprises
The TMR voting happens inside the module, but the processor also does voting across multiple modules. If you replace a T8153, the system may see it as a new module and require a full reconfiguration. Follow the Trusted system’s “hot swap” procedure carefully.

Backplane Compatibility
The T8153 only works in Trusted TMR racks with the right backplane. There are older racks that don’t support the full TMR communication. Check your rack part number before ordering.

Nail these five, and your T8153 will keep that plant safe for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by ICS Triplex (Rockwell), packed in its original box, and never installed. The optoisolators have zero hours, the TMR voting logic has never been exercised, and the output transistors are fresh.

Refurbished risk in plain terms
A refurbished T8153 often comes from a decommissioned safety system. It may have run for years in a critical application. The output transistors may have been stressed by countless operations. The optoisolators age—their current transfer ratio drops. A refurbisher tests it at low current and calls it good. In a real fault, it might fail to turn on.

Real cost of a refurbished failure
If this module fails to energize a critical solenoid during an emergency, the result could be a fire, an explosion, or a release. The cost of that event is measured in lives, not dollars. Even if it’s just a production outage, the cost dwarfs the price difference.

What we provide as proof

• ICS Triplex box (or photos).
• Serial number recorded.
• TMR voting test results.
• Line monitoring verification.
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” T8153s and 25% below Rockwell’s current list price. That pays for the full TMR test, the thermal soak, and the warranty that covers replacement if a channel fails.

Performance Benchmarks & Test Results

Test conditions: Trusted test rack, 24.0V DC field supply, 1A load per channel, ambient 24 °C.

We keep the full test data—ask, and we’ll email the PDF.
