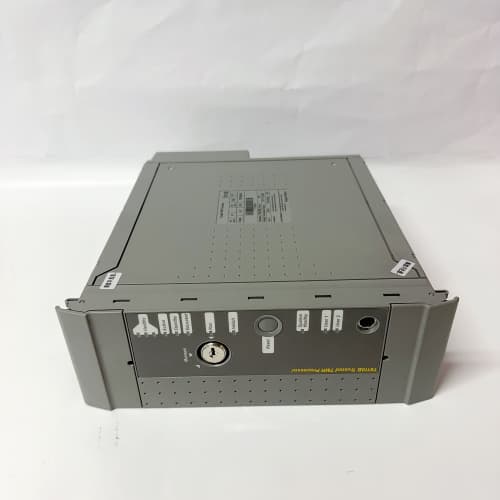

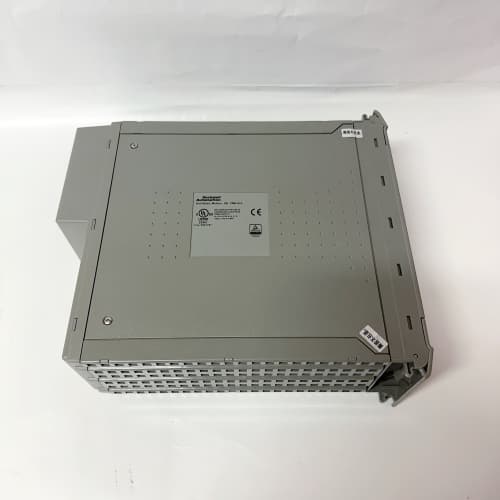

ICS TRIPLEX T8110B

Description

Product Description

Product Parameters

Advantages and Features

1. Superior Fault Tolerance: The triple modular redundancy (TMR) design of ICS TRIPLEX T8110B is its core advantage. This structure can automatically identify and isolate faulty components, and the system can still continue stable operation without interrupting the industrial process, which greatly improves the reliability of the automation system.
2. Rapid Response and High Efficiency: With a 100 MHz processor clock, ICS TRIPLEX T8110B can quickly handle complex control algorithms and large amounts of real-time data. It can detect and respond to changes in external input signals in milliseconds, ensuring that the control system can make timely adjustments to process changes.
3. Flexible Compatibility and Scalability: The module supports flexible configuration and can be perfectly used with the T8100 chassis. Its triple redundant inter-module bus enables easy expansion and integration with other ICS TRIPLEX modules, allowing enterprises to expand the scale of their control systems according to their production needs.
4. Reliable Fault Detection: ICS TRIPLEX T8110B is equipped with a complete fault detection function. It can timely identify abnormal input signals and system component failures, and send out alarm signals to help maintenance personnel deal with potential problems in a timely manner and avoid major safety accidents and economic losses.

Application Cases in Application Fields

1. Oil and Gas Industry: A large oil refinery used ICS TRIPLEX T8110B in its crude oil distillation process control system. The module was responsible for collecting and processing digital signals such as pipeline pressure, flow rate, and temperature. Its TMR architecture ensured that the control system did not shut down due to local faults, which effectively avoided production interruptions caused by equipment failures and improved the continuity of the distillation process.
2. Power System: In a thermal power plant’s substation system, ICS TRIPLEX T8110B monitored key electrical parameters including current, voltage, and frequency. It transmitted real-time data to the central control room through reliable communication interfaces. This real-time monitoring capability enabled the power plant to quickly respond to grid load changes and ensure the stable operation of the power supply system.
3. Chemical Industry: A chemical plant applied ICS TRIPLEX T8110B to the monitoring system of pressure vessels for chemical reactions. The module continuously collected safety-related digital signals of the pressure vessels. When the pressure exceeded the preset threshold, it immediately triggered an alarm and linked with the emergency shutdown device, which guaranteed the safe operation of the chemical production process and protected the safety of on-site personnel and equipment.

Comparisons with Competing Products

Selection Suggestions

1. Prioritize for High-Reliability Demands: If your project is in industries such as oil and gas, chemical, or power where system downtime can lead to huge economic losses or safety hazards, ICS TRIPLEX T8110B is an ideal choice because of its TMR architecture that ensures uninterrupted operation.
2. Consider System Compatibility: If your existing industrial control system uses ICS TRIPLEX T8100 chassis or other ICS TRIPLEX modules, selecting ICS TRIPLEX T8110B can minimize integration difficulty and reduce costs for secondary development.
3. Evaluate Load and Environment: For projects with a single-module load around 80 W and operating temperatures between 0 °C and 60 °C, ICS TRIPLEX T8110B can fully meet the requirements. It is more suitable than ordinary PLC modules for such working conditions.

Precautions

1. Strictly Follow Installation Standards: The module must be installed with the T8100 chassis as required. Do not mix it with incompatible chassis to prevent poor contact or damage to the module’s internal circuits. During installation, ensure that the wiring of the triple redundant inter-module bus is correct to avoid communication failures.
2. Stabilize the Power Supply: The voltage range of ICS TRIPLEX T8110B is 20 – 32V DC. It is necessary to configure a stable power supply module and install a surge protector to prevent the module from being damaged by voltage fluctuations or surges in the industrial power grid.
3. Regular Maintenance and Inspection: Conduct regular cleaning and inspection of the module during use. Check whether the heat dissipation is normal to avoid performance degradation caused by overheating. At the same time, back up the module’s configuration data regularly to facilitate quick recovery in case of data loss.
4. Choose Authorized Suppliers: Purchase ICS TRIPLEX T8110B from authorized and qualified suppliers to ensure that the product is brand-new and genuine, and to obtain a 12-month warranty service. Avoid buying counterfeit products that may cause system malfunctions.
