HONEYWELL TC-CCN014

Description

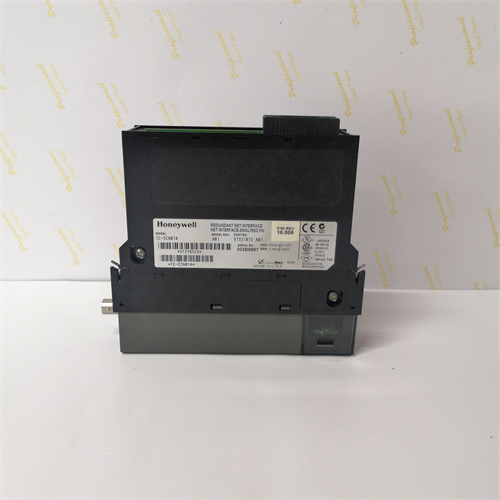

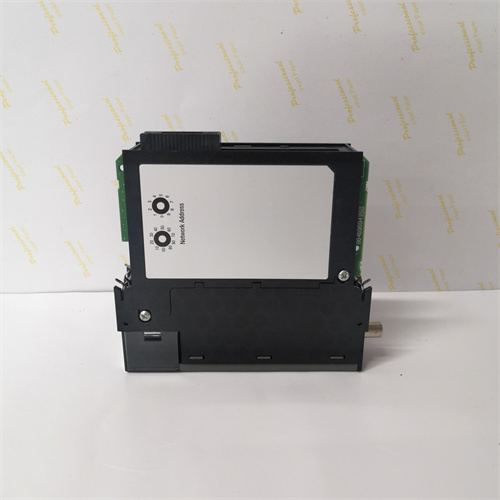

Product Description: Communication Module HONEYWELL TC-CCN014

The HONEYWELL TC-CCN014 is a critical communication network interface module for Honeywell’s Experion Process Knowledge System (PKS). This module is specifically designed to provide the physical and data link layer connectivity for a C300 Process Automation Controller (PAC) to the Experion Control Network, which is typically based on a high-speed, deterministic Ethernet network. The HONEYWELL TC-CCN014 acts as the gateway, enabling the controller to exchange real-time process data, configuration details, and diagnostic information with Experion operator stations, other controllers, and enterprise systems. For detailed technical specifications and configuration guides, refer to the official documentation: HONEYWELL TC-CCN014. The reliable operation of the HONEYWELL TC-CCN014 is fundamental to the integration and data flow within the larger distributed control system.

Key Parameters

• Primary Function: Control Network Interface Module. It serves as the communication card that plugs into the C300 controller chassis, providing the Ethernet port(s) for network connectivity.
• Network Interface: Typically features dual, redundant 10/100/1000 Mbps Ethernet ports (copper or fiber, depending on variant) for connection to a resilient network infrastructure. Supports standard Ethernet protocols as part of Honeywell’s proprietary Experion network stack.
• Deterministic Performance: Engineered to provide deterministic, real-time communication performance essential for closed-loop control and synchronized operations across the DCS, minimizing jitter and latency.
• Controller Integration: Installs into a dedicated slot within the C300 controller rack. It interfaces directly with the controller’s main processor module (like the CC-MCAR02) via the high-speed backplane.
• Redundancy Support: Designed to support network-level redundancy. Often, two HONEYWELL TC-CCN014 modules can be used in a single controller for link redundancy, or modules across redundant controller pairs are configured for full communication path redundancy.
• Diagnostics and Status: Provides LED status indicators for power, network link activity, fault conditions, and operational mode, aiding in rapid visual diagnostics.

Advantages and Features
The core advantage of the HONEYWELL TC-CCN014 is its certified, high-performance integration of the C300 controller into the secure and deterministic Experion Control Network. It ensures reliable and time-sensitive data exchange, which is the backbone of a unified DCS. Its dual-port design facilitates the creation of robust, fault-tolerant network architectures using standard Ethernet switches. The module is optimized for industrial environments, offering enhanced electrical noise immunity and reliability compared to commercial-grade Ethernet cards. For system architects, using the genuine HONEYWELL TC-CCN014 module guarantees compatibility, performance, and access to Honeywell’s comprehensive network management and diagnostic tools within the Experion environment.

Application Case Studies in Various Fields

• Plant-Wide DCS Integration: Connecting multiple C300 controllers across different process units (e.g., distillation, reforming, utilities) in a refinery to a unified Experion network for centralized monitoring and supervisory control.
• Redundant Control System Architecture: Deploying HONEYWELL TC-CCN014 modules in paired, redundant C300 controllers managing a critical gas compressor station, ensuring continuous communication even during a single module or network path failure.
• Large-Scale Batch Manufacturing: Facilitating high-speed data exchange between multiple batch execution controllers and the Experion Batch Manager server in a pharmaceutical plant to coordinate complex recipes and report production data.
• Power Generation Unit Control: Linking boiler, turbine, and balance-of-plant controllers within a power block to provide a cohesive operator view and enable coordinated control strategies.
• Remote I/O and Controller Networking: Extending the Experion network to remote locations or packaged skids where subsidiary controllers need to communicate seamlessly with the central system.

Comparison with Competing Products
The HONEYWELL TC-CCN014 is a proprietary component for the Honeywell ecosystem. Its functional competitors are communication interface modules from other DCS vendors, such as Emerson DeltaV’s Ethernet I/O Card, Yokogawa CENTUM’s AFN50T Network Interface Unit, or Siemens PCS 7’s CP 443-1 Communication Processor. Its key differentiator is its seamless plug-and-play integration with the C300 controller and Experion software stack, including automatic device recognition in Control Builder and native support for Honeywell’s network redundancy protocols. While third-party industrial Ethernet modules could theoretically provide physical connectivity, they would lack the deterministic firmware, diagnostic integration, and vendor support, making the HONEYWELL TC-CCN014 the only supported and recommended choice.

Selection Suggestions and Important Precautions

1. Verify Controller and Software Compatibility: Confirm that the HONEYWELL TC-CCN014 hardware revision and its associated firmware driver are compatible with your specific C300 controller model and the version of Experion PKS software (Control Builder, Station) in use.
2. Plan Network Topology and Redundancy: Design the physical network topology (star, ring) and IP addressing scheme in advance. If redundancy is required, plan for dual HONEYWELL TC-CCN014 modules and configure the network switches accordingly (e.g., using RSTP).
3. Use Industrial-Grade Network Components: The module should be connected to managed industrial Ethernet switches recommended or certified by Honeywell for use on the Experion Control Network to ensure performance and environmental suitability.
4. Follow Strict Cybersecurity Practices: The HONEYWELL TC-CCN014 provides a network entry point to the controller. Implement defensive measures such as port security on connected switches, network segmentation, and firewall policies as per Honeywell’s security guidelines.
5. Perform Pre-Commissioning Checks: Before connecting to a live plant network, verify the module’s configuration (IP address, subnet) and test communication in a controlled environment. After installation, use network diagnostic tools within Experion to verify link integrity and data throughput. Always procure from authorized Honeywell channels. Document the network configuration, including IP addresses and switch port assignments, for every HONEYWELL TC-CCN014 module.
