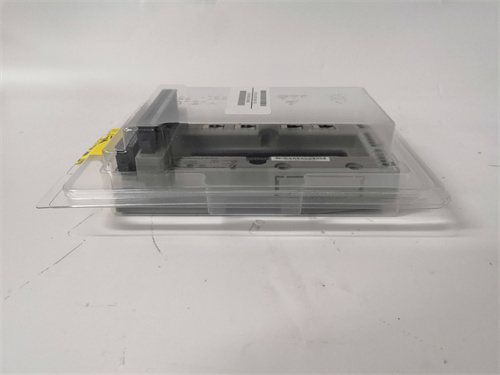

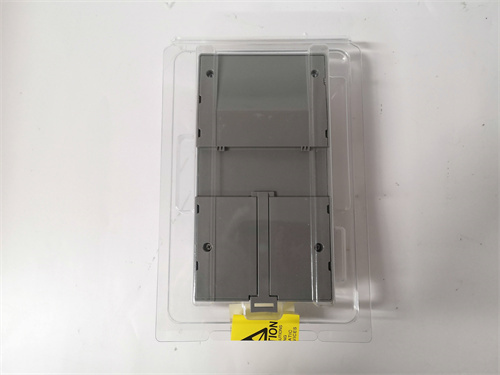

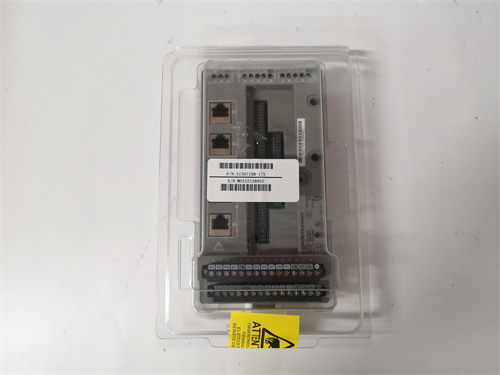

HONEYWELL SC-UMIX01

Description

Detailed Overview of the Honeywell SC-UMIX01 Universal Multifunction I/O Module

Product: Honeywell SC-UMIX01 is a highly versatile and configurable Universal Multifunction Input/Output (I/O) Module designed for Honeywell’s Experion PKS process knowledge system, specifically within its Universal I/O (UIO) chassis (C200/C300 I/O). The defining characteristic of the SC-UMIX01 is its software-configurable channels, which can be individually set to function as analog inputs (AI), analog outputs (AO), digital inputs (DI), or digital outputs (DO). This flexibility makes the Honeywell SC-UMIX01 a powerful tool for optimizing I/O density and simplifying spare parts management, as a single module type can serve multiple signal functions within a control cabinet.

Core Technical Parameters

• Module Type: Universal, Software-Configurable Multifunction I/O Module.
• Channel Count: Typically features 8 individually configurable channels.
• Configurable Types per Channel:
  • Analog Input (AI): Accepts voltage (0-10V, ±10V) or current (0-20mA, 4-20mA) signals from field transmitters.
  • Analog Output (AO): Provides voltage or current output signals to control field actuators (valve positioners, variable speed drives).
  • Digital Input (DI): Reads 24V DC contact inputs from switches, pushbuttons, or relay contacts.
  • Digital Output (DO): Provides 24V DC sourcing outputs to drive relays, solenoid valves, or pilot lights.
• Resolution and Accuracy: High-resolution (e.g., 16-bit) analog conversion and high accuracy suitable for precise process control applications.
• Isolation: Channel-to-channel and channel-to-system isolation to prevent ground loops and ensure signal integrity.
• Communication: Connects to the Experion controller via a high-speed, deterministic I/O network (usually Honeywell’s proprietary UIO bus within the chassis).
• Diagnostics: Extensive on-board diagnostics for open wire, short circuit, over-range, and module health.

Key Advantages and Features

1. Unparalleled I/O Flexibility and Density: The primary advantage of the Honeywell SC-UMIX01 is its ability to replace four different single-function modules. This allows engineers to design control systems with higher I/O density in fewer slots and with a single, unified spare part, drastically reducing cabinet size, wiring complexity, and inventory costs.
2. Reduced Engineering and Maintenance Complexity: Using a universal module standardizes the hardware design. Commissioning and troubleshooting are simplified because technicians only need to be familiar with one module type. Channel function changes can often be made via software without rewiring.
3. Future-Proofing and Easy Modification: If a process change requires switching a signal from an input to an output, or from analog to digital, the SC-UMIX01 can often be reconfigured through software, potentially avoiding a hardware changeout and system downtime.
4. Seamless Integration with Experion PKS: The module is fully recognized, configured, and diagnosed within the Experion Control Builder engineering environment. Its universal nature is managed transparently, with the software guiding the user through the configuration of each channel’s type, range, and alarm limits.

Application Use Cases in Various Industries

• Batch Processing (Pharmaceutical, Fine Chemicals): Ideal for flexible batch plants where equipment modules might be repurposed for different recipes, requiring different I/O configurations. The SC-UMIX01 adapts to changing needs.
• Packaging and Discrete Manufacturing: Perfect for machine control stations that require a mix of sensor inputs (AI, DI) and actuator outputs (AO, DO) in a compact footprint.
• Water/Wastewater Treatment: Useful for control panels that manage a variety of signals from pH/ORP sensors (AI), pump control (DO), valve positioning (AO), and float switches (DI).
• Hybrid Process/Discrete Applications: In plants where continuous process control interfaces with packaged machinery, the universal module bridges both worlds efficiently.

Comparison with Competing Products (e.g., Emerson, Rockwell Automation)

Selection Advice and Important Considerations

1. Channel-by-Channel Configuration Planning: Successful implementation requires meticulous planning. Create a detailed I/O list specifying the exact type, range, and function for each of the 8 channels on every SC-UMIX01 module in the system before configuration.
2. Verify Power and Heat Dissipation: Universal modules can draw more power and generate more heat than single-function modules, especially when driving multiple analog outputs. Ensure the UIO chassis power supply has adequate capacity and that cabinet cooling is sufficient.
3. Understand Mixing Limitations: While highly flexible, there may be limitations on how many channels of a certain type (especially analog outputs, which are power-intensive) can be active simultaneously on one SC-UMIX01 module. Consult the technical datasheet.
4. Wiring and Documentation: Clear labeling is paramount. Since a single terminal block carries inputs and outputs of different types, wiring diagrams must be exceptionally clear to prevent dangerous miswiring during installation or maintenance.
5. Procurement Source: For guaranteed compatibility, performance, and access to the correct firmware and configuration tools, the Honeywell SC-UMIX01 must be sourced from authorized Honeywell Process Solutions distributors. This ensures you receive a genuine module that will be fully supported by the Experion engineering software.
