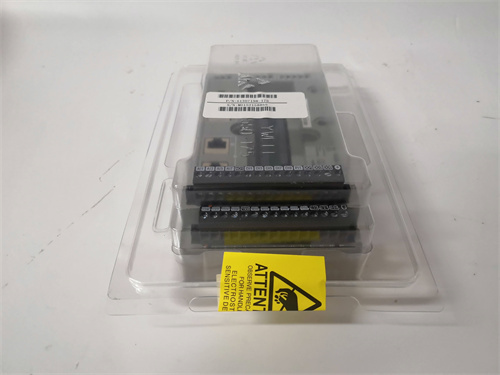

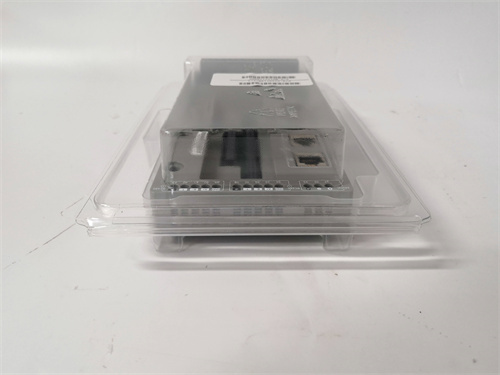

HONEYWELL SC-UCMX01 51307198-175

Description

Product Description: Communication Module HONEYWELL SC-UCMX01 51307198-175

The HONEYWELL SC-UCMX01 51307198-175 is a Universal Control Network (UCN) communication module, serving as a critical interface node within Honeywell’s TDC 3000 and Experion PKS distributed control systems. This specific module, identified by the full part number 51307198-175, functions as a Network Interface Module (NIM) or an extended capability variant, linking higher-level systems like the Local Control Network (LCN) or Experion Ethernet to the UCN, which connects to field-mounted process controllers. The HONEYWELL SC-UCMX01 51307198-175 is essential for data exchange, command routing, and system synchronization in large-scale industrial automation architectures. For detailed technical documentation, visit the official resource: HONEYWELL SC-UCMX01 51307198-175. The performance and reliability of the HONEYWELL SC-UCMX01 51307198-175 directly impact the accessibility and control of entire process units.

Key Parameters

• Primary Function: UCN Network Interface Module (NIM). It acts as a gateway, protocol converter, and traffic manager between the plant-wide supervisory network (LCN or Experion Ethernet) and the real-time control network (UCN).
• Network Interfaces: Contains ports for connecting to two distinct networks: one for the LCN/Ethernet (typically via a coaxial or fiber-optic trunk) and one for the UCN (a redundant, token-passing network using proprietary coaxial cable).
• Processing and Memory: Equipped with its own microprocessor and memory to handle high-throughput data translation, buffering, and network management tasks without burdening the connected controllers.
• Redundancy Support: Designed for high availability. Modules are typically installed in redundant pairs (A/B side) to ensure continuous communication. The HONEYWELL SC-UCMX01 51307198-175 supports this failover configuration.
• Diagnostics and Status: Provides comprehensive front-panel status LEDs and generates detailed system diagnostics for network health, module status, and communication errors, which are visible on the operator console.
• Compatibility: Used in systems where legacy TDC 3000 UCN-based controllers (APM, HPM, LM) are integrated with or migrated to newer Experion PKS stations. The suffix ‘175’ indicates a specific hardware/firmware revision.

Advantages and Features
The core advantage of the HONEYWELL SC-UCMX01 51307198-175 is its ability to seamlessly bridge generations of Honeywell technology, protecting investments in field controllers while enabling modern operator interfaces and data integration. It provides deterministic and reliable communication critical for real-time control. Its robust design ensures stable operation in control room environments, and its redundancy features guarantee network availability. For engineers managing system lifecycles, the HONEYWELL SC-UCMX01 51307198-175 is a key enabler for hybrid architectures, allowing phased migration and secure integration of legacy process control units into a contemporary DCS framework.

Application Case Studies in Various Fields

• Refinery Modernization Projects: Integrating existing TDC 3000 UCN-based Advanced Process Manager (APM) controllers, which govern critical units like catalytic crackers, into a new Experion PKS operator environment using the HONEYWELL SC-UCMX01 51307198-175 as the communication bridge.
• Large Chemical Plant Operations: Facilitating data flow between hundreds of UCN-connected High-Performance Process Manager (HPM) controllers and the plant’s history, alarm, and optimization servers running on Experion.
• Legacy System Support and Expansion: Adding new control capacity or replacing a failed NIM in an operational TDC 3000 system to maintain connectivity between the LCN and UCN segments.
• Phased Migration Strategy: Using the HONEYWELL SC-UCMX01 51307198-175 to maintain UCN connectivity during a multi-year project to gradually replace older controllers with new C300 controllers, minimizing operational disruption.

Comparison with Competing Products
The HONEYWELL SC-UCMX01 51307198-175 is a unique, proprietary component within Honeywell’s ecosystem. Its primary “competition” comes from alternative migration strategies:

1. Complete System Rip-and-Replace: Bypassing the need for a gateway by replacing all UCN controllers and networks with a modern system (e.g., all C300 controllers). This is far more costly and disruptive.
2. Third-Party Gateway Solutions: Some third-party vendors offer protocol converters, but they lack the deep, certified integration, full diagnostic visibility, and Honeywell support for this critical network layer.
   Thus, for users invested in the Honeywell architecture, the HONEYWELL SC-UCMX01 51307198-175 is the officially supported, performance-guaranteed solution for UCN integration, offering the best balance of legacy support and modern functionality.

Selection Suggestions and Important Precautions

1. Confirm Exact System Architecture: Verify that your system uses a UCN and requires this specific NIM model. The HONEYWELL SC-UCMX01 51307198-175 is not used in newer, pure Experion systems without UCN legacy components.
2. Verify Redundancy Requirements: For critical process units, plan for a redundant pair of modules from the outset. Ensure you have the correct cabling and chassis slots for the A/B side configuration.
3. Check Firmware and Software Compatibility: The module’s firmware must be compatible with the version of the TDC/Experion software running on the LCN/Experion stations and the firmware of the UCN controllers. Consult the Honeywell compatibility matrix meticulously.
4. Plan for Careful Network Integration: Installing or replacing a NIM affects the entire UCN and LCN segments. Work must be planned during a maintenance window. Procedures for setting the correct node address and loading configuration are critical and must be followed exactly.
5. Professional Handling and Sourcing: These are sensitive, high-value modules. Handle with ESD precautions. Always procure the HONEYWELL SC-UCMX01 51307198-175 from authorized Honeywell channels to avoid counterfeit products and ensure receipt of the correct firmware revision. Document the module’s address and slot location in system drawings. After installation, perform comprehensive network diagnostics and loop-back tests to verify integrity before returning the system to service.
