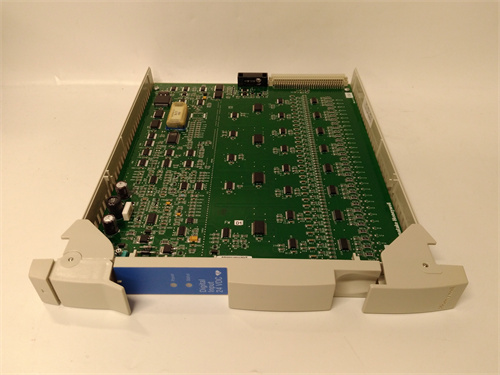

HONEYWELL MC-PDIY22 80363972-150

Description

Product Description

The HONEYWELL MC-PDIY22, with the material code 80363972-150, is a high-performance, configurable digital input module designed for the Honeywell Experion Process Knowledge System (PKS) and older TDC 3000 systems. This module, part of the C Series I/O family, provides a critical interface between the field’s discrete on/off signals and the controller, allowing the Distributed Control System (DCS) to monitor the state of devices like pushbuttons, limit switches, and contact closures. The HONEYWELL MC-PDIY22 is engineered for reliability in demanding process environments, offering flexible channel configuration and robust diagnostics. For comprehensive technical data sheets, installation manuals, and configuration guides, the essential resource is the official Honeywell Process Solutions documentation portal for the HONEYWELL MC-PDIY22. The accurate and reliable acquisition of field status signals is fundamental to safe and efficient process control, a task for which the MC-PDIY22 module is explicitly designed. Its versatility makes it a standard building block in control cabinets across continuous process industries.

Product Parameters

• Manufacturer / Brand: Honeywell.
• Model: MC-PDIY22.

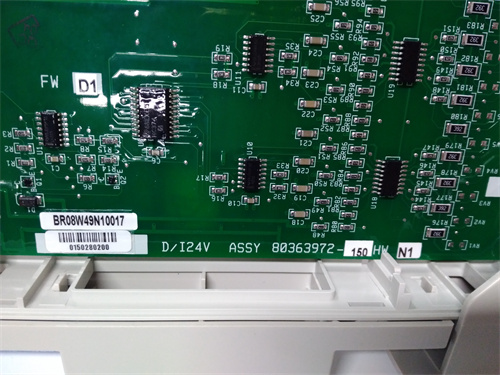

• Material / Part Number: 80363972-150.
• System Compatibility: Honeywell Experion PKS C Series, TDC 3000 with C Series I/O.
• Function: Configurable Digital Input Module.
• Input Channels: Typically 16 channels, configurable per point.
• Input Types: Configurable for various voltage levels including:
  • Dry Contact (volt-free)
  • 24V DC Sink/Source
  • 48V DC
  • 125V DC
• Input Logic: Configurable for normally open (NO) or normally closed (NC) field contacts.
• Isolation: Channel-to-channel and channel-to-system isolation for noise immunity and safety.
• Diagnostics: Includes per-channel status indication via LEDs and diagnostic reporting for field wire faults (open circuit) to the controller.
• Communication: Connects to the controller via a redundant C Series I/O Link.
• Mounting: Mounts on a standard DIN rail within a C Series I/O module assembly.

Advantages and Features

• Flexible Configuration: Each of the 16 channels can be individually configured for different voltage levels and logic, allowing a single module type to serve multiple purposes in a control cabinet, reducing spare part variety.
• High Density: Packs 16 isolated input points into a compact module, saving panel space.
• Robust Diagnostics: Provides clear local LED status for each channel and can report field wire breaks to the control system, enabling predictive maintenance and faster troubleshooting.
• High Reliability: Designed and tested for harsh industrial environments with high electrical noise immunity, ensuring stable long-term operation.
• Hot Swappable: Designed to be inserted and removed from a live C Series I/O assembly without powering down the entire system, supporting high availability.

Application Cases in Industry

• Oil & Gas Refining: Monitors the position feedback (open/close) of hundreds of motor-operated valves (MOVs) and the status of pump seals and pressure switches throughout a refinery.
• Chemical Processing: Reads the state of high-level switches in reactors, trip signals from machinery, and permissive interlocks for safety systems.
• Power Generation: Acquires status signals from boiler drum level switches, turbine lube oil pressure switches, and breaker positions in a switchyard.
• Pharmaceutical Manufacturing: Monifies door closure switches on sterile isolators, agitator running status, and batch sequence step confirmations.
• Pulp & Paper Mill: Tracks the position of diverter gates, confirms felt tension, and monitors breaker stack positions on a paper machine.

Comparison with Competing Products

Competing products include digital input modules from other major DCS vendors, such as the Emerson DeltaV CHARMs DI or the Siemens SIMATIC ET 200SP Digital Input module. The HONEYWELL MC-PDIY22 distinguishes itself through its high degree of per-channel configurability within the Honeywell C Series framework. While competitors may require different hardware modules for different voltage levels, a single MC-PDIY22 can be software-configured to handle multiple signal types. Its integration with the Experion PKS engineering environment (Control Builder) is seamless, whereas integrating third-party I/O into a Honeywell system can be complex. Compared to generic PLC input cards, it offers deeper diagnostics, better isolation, and certified performance within the safety-conscious DCS architecture.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the HONEYWELL MC-PDIY22 for new Experion PKS projects or as a direct replacement in existing Honeywell C Series I/O systems.
  2. Leverage its configurability by standardizing on this module for most digital input applications to simplify engineering and spare parts inventory.
  3. During design, carefully plan the assignment of channels based on voltage level and logic type to fully utilize the module’s flexibility.
• Precautions:
  1. Configuration is Mandatory: A new MC-PDIY22 module is not functional out of the box. It must be configured using the Experion Control Builder software to define the voltage type and logic for each channel. The configuration must be downloaded to the controller.
  2. Field Power Supply: Ensure the external field power supply (24VDC, 48VDC, etc.) for the inputs is correctly sized, properly fused, and isolated as per the design specifications.
  3. Wiring Practices: Follow proper separation guidelines for different voltage classes. Use the correct wire type and ensure terminations are secure to avoid loose wire faults.
  4. Grounding: Adhere strictly to the system grounding guidelines provided in the C Series installation manual. Improper grounding is a common source of noise and erratic behavior.
  5. Firmware Compatibility: Verify that the module’s firmware revision is compatible with the version of the Experion PKS software and the C Series I/O Link interface module. Always use the correct material code 80363972-150 for procurement
