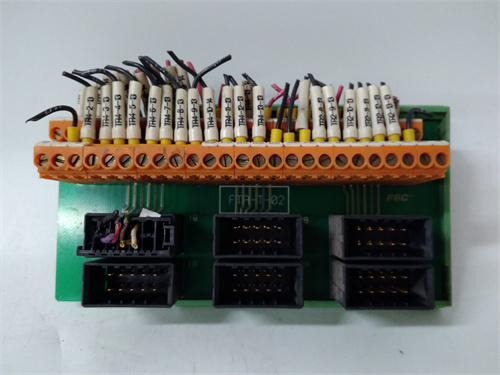

HONEYWELL FTA-T-02

Description

Product Description

The HONEYWELL FTA-T-02 is a robust, 2-channel Field Terminal Assembly (FTA) designed for Honeywell’s legacy Experion PKS Series C I/O system. This specialized component is not an I/O module itself, but a critical interface device that provides signal conditioning, isolation, and termination for analog or discrete field instruments before they connect to the main I/O processor module. Acting as a protective barrier, the HONEYWELL FTA-T-02 mounts directly onto the I/O carrier and handles the raw field signals—such as 4-20mA, thermocouple, or RTD inputs—converting and isolating them for safe and accurate reading by the sensitive system electronics. The primary role of the HONEYWELL FTA-T-02 is to enhance system reliability by preventing harmful voltages, ground loops, and electrical noise from the field from damaging the central control system. Implementing the HONEYWELL FTA-T-02 is a standard practice for building a hardened and maintainable DCS infrastructure, particularly for critical process measurements. This terminal assembly is a key enabler of signal integrity and operational safety within the Honeywell architecture.

Product Parameters

• Product Type: Field Terminal Assembly (FTA).
• Channel Count: 2 channels per assembly.
• Compatibility: Designed exclusively for use with specific Honeywell Experion PKS Series C I/O modules (e.g., analog input, RTD input cards).
• Function: Provides signal conditioning, galvanic isolation, and fused or protected termination for field wiring.
• Termination: Features screw terminals for secure connection of field device wires.
• Connection: Plugs directly into the backplane connector of its paired Series C I/O module via a integrated connector.
• Diagnostics: Often includes LED indicators (e.g., for field power or fault status) per channel.
• Mounting: Installs directly onto the I/O carrier assembly adjacent to its parent I/O module.
• Safety Ratings: Provides a defined level of isolation (e.g., 1500V) between field and system sides.

Advantages and Features

• Enhanced System Protection: The primary benefit is the protection of expensive I/O modules and the controller backplane from high-voltage transients, incorrect wiring, and ground faults originating in the field.
• Improved Signal Integrity: By providing dedicated conditioning and isolation, the HONEYWELL FTA-T-02 ensures clean, accurate signal transmission to the I/O module, reducing noise and measurement errors.
• Simplified Maintenance and Calibration: Allows technicians to disconnect, test, or calibrate field instruments at the FTA’s terminals without disturbing the I/O module wiring or affecting other channels. Faulty FTAs can be replaced individually.
• Hot Swap Capability: In systems configured for redundancy, the FTA and its parent module can often be replaced online without shutting down the process, maximizing system availability.
• Clear Channel Identification: Each channel is typically clearly labeled, and status LEDs provide immediate visual feedback, speeding up troubleshooting efforts.

Application Cases in Application Fields

• Refinery Distillation Column: Used with analog input modules to condition and isolate 4-20mA signals from critical temperature and pressure transmitters located on hot, electrically noisy column trays.
• Pharmaceutical Fermenter: Pairs with RTD input modules to provide isolated connections for multiple platinum RTDs measuring batch temperature, protecting the control system from potential moisture or ground faults in the vessel area.
• Power Plant Boiler: Installed alongside thermocouple input modules to handle the millivolt signals from high-temperature thermocouples in the furnace, providing cold-junction compensation and isolation.
• Chemical Reactor: Interfaces with analog output modules to isolate the control signal to a critical control valve, ensuring a valve power wire short cannot feed back and damage the controller’s output circuitry.

Comparisons with Competing Products

Competing products are other manufacturers’ signal conditioners or isolated terminal blocks, such as those from Phoenix Contact, Weidmüller, or Pepperl+Fuchs. However, the HONEYWELL FTA-T-02 is not a universal device. It is a proprietary, pre-engineered component of the Honeywell Experion PKS system. Generic conditioners offer flexibility but require separate power, wiring, and mounting, adding complexity. The key advantage of the HONEYWELL FTA-T-02 is its seamless, plug-and-play integration: it draws power from the backplane, is automatically recognized by the system, and its diagnostics are integrated into the control software. For a Honeywell DCS user, using the dedicated HONEYWELL FTA-T-02 ensures validated performance, simplifies engineering, and maintains the system’s certified safety and integrity, which third-party components cannot guarantee.

Selection Suggestions and Precautions

1. Strict Module Compatibility: The HONEYWELL FTA-T-02 is designed for specific Series C I/O module types (e.g., CC-PAIX01 for analog input). You must verify the exact parent module part number it is intended to pair with. Using an incorrect FTA can cause malfunction or damage.
2. Signal Type Matching: Ensure the FTA model (indicated by the suffix, e.g., -T for temperature) matches the field signal type (RTD, TC, mA, etc.) your application requires. Not all FTAs are universally configurable.
3. Redundancy Configuration: If using in a redundant I/O pair, confirm the correct FTA part number and carrier type (e.g., FTAO carrier) that supports hot-swap functionality.
4. Wiring Practices: Even with fused/protected FTAs, field wiring should be installed per electrical standards, ideally in segregated cable trays from power wiring, to minimize induced noise.
5. Spare Parts Strategy: Due to their role as the first line of defense, FTAs can be sacrificial components during a field fault. It is prudent to keep a spare HONEYWELL FTA-T-02 on hand for critical loops to facilitate rapid restoration.
