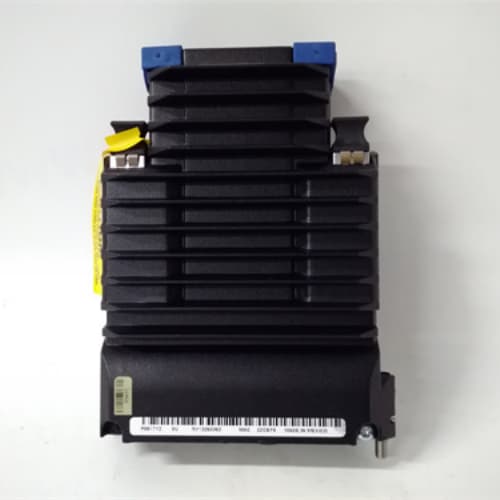

HONEYWELL FC-SDIL-1608

Description

Detailed Overview of the Honeywell FC-SDIL-1608 Digital Input (Latching) Module

Product: Honeywell FC-SDIL-1608 is a specialized 16-channel digital input module designed for Honeywell’s FailSafe Control (FSC) and Safety Manager safety instrumented systems (SIS). The FC-SDIL-1608 is engineered to monitor the status of critical field devices, such as solenoid valves or motor-operated valves, by detecting discrete DC voltage signals and, uniquely, providing a latching (memory) function for specific channels. This capability allows the module to capture and retain the state of a fast-occurring or momentary event, making the Honeywell FC-SDIL-1608 essential for diagnostic and proof-test applications where verifying the actuation of a safety device is required.

Core Technical Parameters

• Module Type: Safety Digital Input Module with Latching (Memory) Capability.
• Safety Standards: Certified for use in Safety Instrumented Systems (SIL 2/SIL 3 per IEC 61508/61511).
• Input Channels: 16 channels, typically configurable in groups (e.g., 8 standard inputs and 8 latching inputs, or as 16 latching inputs).
• Input Type: 24V DC sinking or sourcing inputs for interfacing with dry contacts (switches) or active solid-state devices.
• Latching Function: Specific channels can be configured to “latch” or retain an ON signal (e.g., a valve actuation pulse) until explicitly reset by the safety logic or maintenance personnel. This is a key differentiator of the FC-SDIL-1608.
• Diagnostics: Includes comprehensive channel-level diagnostics such as wire-break detection, short-circuit detection, and on-board health monitoring to identify dangerous failures.
• Communication: Interfaces with the FSC/Safety Manager controller via a high-integrity, fault-tolerant backplane bus.

Key Advantages and Features

1. Event Capture for Proof Testing: The primary advantage of the Honeywell FC-SDIL-1608 is its ability to capture transient signals. This is crucial for partial stroke testing of Emergency Shutdown Valves (ESDV); the module can latch the brief “open” signal from a limit switch during the test, providing positive proof that the valve moved.
2. Enhanced Safety System Diagnostics: By latching alarm or trip signals, the module aids in first-out fault identification, helping operators and maintenance teams quickly pinpoint the initiating event in a complex shutdown sequence.
3. High Diagnostic Coverage: Like all safety I/O, it provides high diagnostic coverage to detect failures that could prevent the SIS from functioning on demand. This includes diagnostics for the latching circuitry itself.
4. Integrated Safety Configuration: The module is fully configured (defining which channels are latching, reset logic, etc.) and monitored within Honeywell’s safety engineering environment (e.g., Safety Builder), ensuring the configuration is part of the validated safety application.

Application Use Cases in Various Industries

• Oil & Gas – Emergency Shutdown Systems: Used to monitor and latch the actuation signal from solenoid valves (SOVs) on Emergency Shutdown Valves (ESDVs) or from limit switches proving valve movement during a partial stroke test.
• Chemical/Petrochemical – Safety Interlocks: Monitoring the confirmed position of critical motor-operated isolation valves (MOVs) or the trip status of relief valves, capturing the moment of actuation for later review.
• Power Generation – Burner Management: Latching the “flame detected” loss signal or the position confirmation of fuel shut-off valves to aid in post-trip analysis and root cause investigation.
• Any SIS with Proof Testing Requirements: Applications where regulatory or internal safety standards require documented proof that final elements have been tested and responded correctly.

Comparison with Competing Products (e.g., Siemens, Emerson)

Selection Advice and Important Considerations

1. Define Latching Requirements Clearly: Before selecting the FC-SDIL-1608, specify exactly which field signals require latching, the required duration of the latch, and the reset method (automatic via logic, manual via software, or hardware reset).
2. Compatibility with Controller and Chassis: Confirm the module is compatible with your specific FSC or Safety Manager controller model, chassis type, and firmware version using the official Honeywell compatibility matrix.
3. Wiring and Signal Sourcing: Ensure the field devices (e.g., limit switches, solenoid feedback contacts) provide a compatible 24V DC signal of sufficient duration to be reliably detected by the input channel, even if the physical event is brief.
4. Configuration and Validation: The latching behavior must be carefully configured in the safety logic software. This configuration becomes part of the Safety Application Logic, which must be thoroughly validated and documented as per IEC 61511.
5. Procurement Source: Given its role in safety system diagnostics and proof testing, it is critical to purchase the Honeywell FC-SDIL-1608 from authorized Honeywell Process Solutions distributors. This guarantees a certified component, access to correct configuration files, and the technical support necessary for maintaining the SIS’s safety certification. Unauthorized parts may not have the required reliability or diagnostic features.
