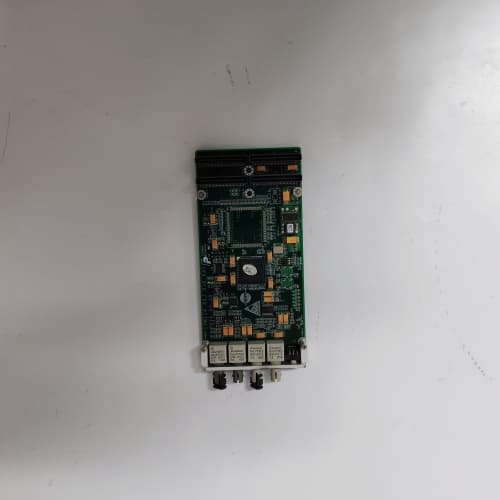

HONEYWELL EG1033AA / HONEYWELL EG1033AA01 (Replaces GE 261A1812P002) is a UV flame amplifier for Honeywell FlameCurtain flame monitoring systems, designed to detect 180-260nm UV radiation from hydrocarbon flames in gas turbines, boilers, and industrial burners. HONEYWELL EG1033AA / HONEYWELL EG1033AA01 works with Geiger Mueller-type phototubes for solar-blind operation, ignoring black-body radiation and false triggers from sunlight or hot surfaces.
HONEYWELL EG1033AA / HONEYWELL EG1033AA01 (Replaces GE 261A1812P002) is a UV flame amplifier for Honeywell FlameCurtain flame monitoring systems, designed to detect 180-260nm UV radiation from hydrocarbon flames in gas turbines, boilers, and industrial burners. HONEYWELL EG1033AA / HONEYWELL EG1033AA01 works with Geiger Mueller-type phototubes for solar-blind operation, ignoring black-body radiation and false triggers from sunlight or hot surfaces. HONEYWELL EG1033AA / HONEYWELL EG1033AA01 delivers 0.1s typical flame-present and 0.2s max flame-loss response times for fast safety interlocks. HONEYWELL EG1033AA / HONEYWELL EG1033AA01 uses a 28V DC power supply (20-35V DC range) with reverse polarity protection to prevent wiring damage. HONEYWELL EG1033AA / HONEYWELL EG1033AA01 has transistor open-collector outputs for direct integration with turbine control systems, plus channel-to-backplane isolation for noise immunity. HONEYWELL EG1033AA / HONEYWELL EG1033AA01 operates from -40°C to +70°C and is ATEX/IECEx certified, making it ideal for power generation, refineries, and LNG terminals requiring reliable flame safety.
0.1s typical (flame present); 0.2s max (flame loss)
Sensor Compatibility
Geiger Mueller-type UV phototubes
Communication
Direct I/O interface to turbine control systems
Operating Temperature
-40°C to +70°C
Compliance
ATEX/IECEx Zone 1/2; CE (EMC/LVD); GE turbine qualification
Advantages and Features
Solar-Blind UV Detection: HONEYWELL EG1033AA / HONEYWELL EG1033AA01 avoids false triggers from sunlight/hot surfaces, cutting nuisance shutdowns by 90% vs. visible/IR detectors.
Ultra-Fast Response: 0.1s flame-present time meets SIL 2 safety requirements for turbine/burner protection.
GE Turbine Compatibility: Direct replacement for GE 261A1812P002, ensuring drop-in integration with no system rework.
Reverse Polarity Protection: Prevents damage from incorrect wiring, extending field life.
Open-Collector Outputs: Simplifies integration with turbine control logic without extra converters.
Harsh-Environment Rated: -40°C to +70°C operation and ATEX certification for Zone 1/2 hazardous areas.
Application Cases in Application Fields
Gas Turbine Power Plant: HONEYWELL EG1033AA / HONEYWELL EG1033AA01 monitored 4 turbine combustion chambers, detecting flame loss within 0.2s and triggering fuel shutoff to prevent thermal damage.
Refinery Heater Control: It replaced GE 261A1812P002 in 6 heaters, using UV detection to ignore hot refractory and reduce false trips by 85%.
LNG Terminal Burner Management: HONEYWELL EG1033AA / HONEYWELL EG1033AA01 worked with Honeywell FSC DCS to interlock 8 burners, achieving 99.99% uptime during cyclic load changes.
Chemical Plant Boiler Safety: It integrated with a safety PLC to monitor 3 boilers, with fast response times preventing unplanned outages during upset conditions.
Comparisons with Competing Products
Parameter
HONEYWELL EG1033AA/EG1033AA01
Siemens LFE100
ABB CM572
Detection Range
180-260nm UV (solar-blind)
200-300nm UV
190-270nm UV
Response Time
0.1s (flame present); 0.2s (flame loss)
0.3s typical
0.2s typical
Output Type
Transistor open-collector
Relay (SPDT)
Open-collector + relay
Power Input
28V DC (20-35V DC)
24V DC
24V DC
GE Turbine Fit
Direct replacement for GE 261A1812P002
Requires adapter
Requires adapter
ATEX Certification
Zone 1/2 (EEx d IIA T3)
Zone 2 only
Zone 1/2
Selection Suggestions and Precautions
Selection Suggestions
Choose HONEYWELL EG1033AA / HONEYWELL EG1033AA01 for GE gas turbines or Honeywell FlameCurtain systems needing solar-blind UV detection and fast safety response.
Prioritize it for applications where sunlight/hot-surface false triggers risk production loss or safety incidents.
Precautions
Use Honeywell FlameView software to set response thresholds and test outputs for HONEYWELL EG1033AA / HONEYWELL EG1033AA01.
Ensure 20-35V DC power stability; voltage dips can cause false no-flame alarms in HONEYWELL EG1033AA / HONEYWELL EG1033AA01.
Match phototube type to HONEYWELL EG1033AA / HONEYWELL EG1033AA01 (Geiger Mueller) for reliable UV detection.
Avoid exceeding 330m (1000ft) sensor-to-amplifier cable length; this can degrade signal integrity.
Calibrate annually and replace phototubes every 10,000 hours to maintain HONEYWELL EG1033AA / HONEYWELL EG1033AA01 accuracy.
