HONEYWELL CC-TDOB01

Description

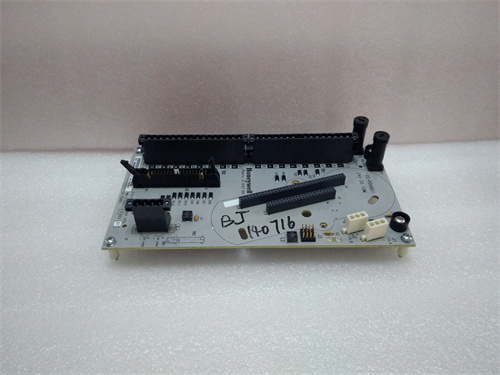

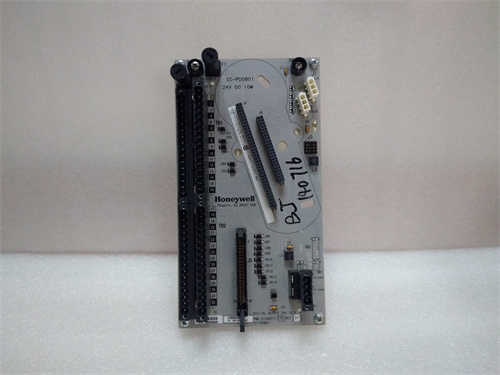

Product Description: I/O Module HONEYWELL CC-TDOB01

The HONEYWELL CC-TDOB01 is a critical digital output module designed for integration into Honeywell’s Experion Process Knowledge System (PKS) and legacy TDC 3000 platforms. This module serves as the interface between the control system’s logic and discrete field actuators, converting internal logic states (ON/OFF) into physical switching actions to control devices such as solenoid valves, motor starters, relays, and indicator lights. As a key component for executing control commands, the reliable operation of the HONEYWELL CC-TDOB01 is essential for automated process sequences and equipment operation. For detailed technical specifications and wiring diagrams, please visit the official product page: HONEYWELL CC-TDOB01. In any control system, the role of a robust digital output module like the HONEYWELL CC-TDOB01 is fundamental to translating control decisions into physical action.

Key Parameters

• Signal Type: Digital Output (DO). Specifically, it provides a switched voltage output, typically 24 V DC or a higher DC voltage (e.g., 48 V DC, 125 V DC), to drive field loads.
• Output Configuration: The module features multiple isolated output channels, commonly 16 or 32 channels per unit. Each channel is capable of switching an independent load.
• Switching Element: Utilizes solid-state switches (like MOSFETs or transistors) or electromechanical relays within the module. Solid-state outputs offer faster switching and longer life for frequent operations, while relay outputs can handle a wider range of voltages and AC loads.
• Output Protection: Includes built-in protection against overcurrent, short-circuit, and inductive load kickback (using freewheeling diodes or other suppression circuits) to protect the module’s internal electronics.
• Communication Interface: Installs into a designated slot within a Honeywell C-series I/O rack (e.g., C200, C300). It communicates with the controller via a high-speed, deterministic backplane bus, receiving output commands from the control logic.
• Diagnostic Indicators: Each output channel typically features a status LED that illuminates when the output is active (energized), providing immediate visual feedback for troubleshooting.

Advantages and Features
The primary advantage of the HONEYWELL CC-TDOB01 is its guaranteed compatibility, reliability, and seamless integration within the Honeywell DCS environment. Its design ensures robust electrical isolation between the control system and the field, protecting sensitive controller electronics from voltage transients and noise present in field wiring. The module’s high channel density optimizes space in the I/O cabinet. Its diagnostic capabilities, through both LED indicators and system software, enable rapid identification of field wiring faults or module issues, minimizing downtime. For system integrators, using the genuine HONEYWELL CC-TDOB01 module ensures predictable performance and simplifies long-term system support and maintenance.

Application Case Studies in Various Fields

• Valve Actuation in Process Units: Controlling the open/close commands for solenoid valves on pilot-operated control valves or for on/off block valves in a chemical plant.
• Motor and Pump Control: Starting and stopping motors by energizing/de-energizing the coil of a motor starter or contactor in a water treatment facility.
• Alarm and Annunciation: Activating audible alarms (horns) and visual strobes or beacon lights in a fire and gas or safety shutdown system.
• Sequential Logic in Machinery: Controlling the step-by-step actions of a packaging machine, conveyor system, or automated assembly line.
• Heater Control: Switching resistive heating elements on and off for tank heating or process temperature maintenance.

Comparison with Competing Products
The HONEYWELL CC-TDOB01 is a proprietary DCS component. Its direct competitors are digital output modules from other major DCS vendors, such as Emerson (DeltaV), Yokogawa (CENTUM), and Siemens (PCS 7). Within the Honeywell ecosystem, its main alternative would be a newer generation I/O module offering potential enhancements in diagnostics or communication speed. Compared to universal PLC digital output cards, the HONEYWELL CC-TDOB01 is distinguished by its native integration with Experion’s control strategy builder, historian, and alarm management systems, providing a more cohesive engineering and operational environment with less integration effort.

Selection Suggestions and Important Precautions

1. Match Output Type to Load: Critically verify whether the HONEYWELL CC-TDOB01 provides solid-state or relay outputs, and ensure its specifications (voltage rating, current rating per channel, and total module current) are compatible with the connected field devices (solenoids, contactor coils, lamps).
2. Account for Inrush Current: Inductive loads like solenoid valves and contactor coils have a high inrush current. Ensure the module’s output can handle this surge without tripping its protection or damaging the switch. Use inrush limiters if necessary.
3. Implement External Protection: Even with internal protection, it is a best practice to install an external fuse or circuit breaker on each output channel or group of channels to facilitate troubleshooting and protect field wiring.
4. Suppress Inductive Kickback: For inductive loads, ensure suppression is in place. If not internally provided by the module, install external suppression devices (like flyback diodes or RC snubbers) across the load to protect the output transistor from voltage spikes.
5. Verify Wiring and System Configuration: Ensure the field wiring is correct and the module’s addressing within the I/O rack matches the control logic configuration. Perform a comprehensive functional test by forcing outputs in a safe state before connecting to live equipment. Always procure the HONEYWELL CC-TDOB01 from authorized Honeywell channels. Document the assignment of each output channel to its field device for future maintenance.
