HONEYWELL CC-TDIL01

Description

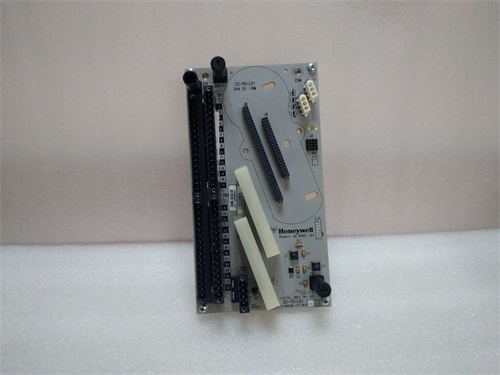

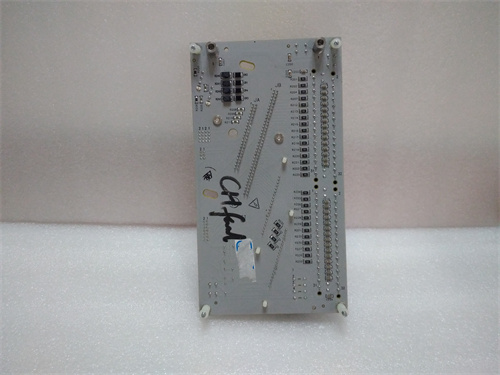

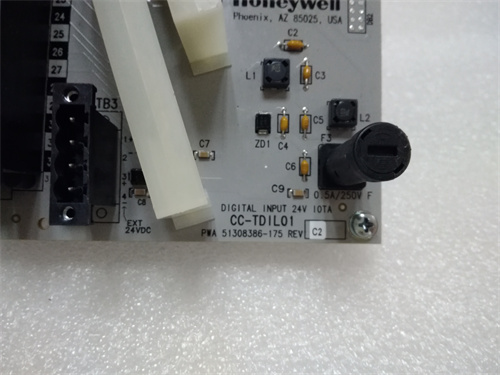

Product Description: I/O Module HONEYWELL CC-TDIL01

The HONEYWELL CC-TDIL01 is a critical digital input module designed for integration into Honeywell’s Experion Process Knowledge System (PKS) and older TDC 3000 Distributed Control Systems (DCS). This module serves as the primary interface for reading discrete field signals—such as the status of switches, pushbuttons, relays, and contactors—and converting them into a digital format that the system controller can process. The reliable operation of the HONEYWELL CC-TDIL01 is essential for accurate system monitoring, interlocking, and sequence control. For detailed specifications and system compatibility information, please refer to the official product page: HONEYWELL CC-TDIL01. In any DCS architecture, the role of a robust digital input module like the HONEYWELL CC-TDIL01 cannot be overstated.

Key Parameters

• Signal Type: Digital Input (DI). Specifically, it accepts DC voltage level signals, typically 24 V DC or 48 V DC, representing an ON/OFF or TRUE/FALSE state from field devices.
• Channel Count: The module features a specific number of isolated input channels, commonly 16 or 32 channels per module, allowing for high-density monitoring of discrete points.
• Input Characteristics: It is designed for “dry contact” or “sourcing” inputs. This means it can read the state of a field contact (like a switch) or a solid-state device (like a proximity sensor) that switches a voltage supplied either externally or by the module itself.
• Isolation and Protection: Provides channel-to-channel and group isolation to prevent fault propagation. Includes protection against overvoltage, reverse polarity, and electromagnetic interference (EMI) to ensure reliable operation in harsh industrial environments.
• Communication Interface: Installs into a designated I/O module slot within a Honeywell C-series (e.g., C200, C300) I/O rack or a legacy Honeywell I/O assembly. It communicates with the controller via a high-speed, proprietary backplane bus.
• Diagnostic Indicators: Each channel is typically equipped with a status LED to provide immediate visual indication of the input state (ON/OFF), facilitating quick troubleshooting during commissioning and maintenance.

Advantages and Features
The primary advantage of the HONEYWELL CC-TDIL01 is its guaranteed compatibility, reliability, and seamless integration within the Honeywell DCS ecosystem. Its design ensures precise signal acquisition with high noise immunity, which is critical for making reliable control decisions based on field statuses. The module’s high channel density optimizes space in the I/O cabinet and reduces wiring complexity. Its diagnostic capabilities, both through LED indicators and system software, enable rapid fault identification and minimize downtime. For system integrators and plant engineers, using the genuine HONEYWELL CC-TDIL01 module ensures predictable performance and simplifies long-term system support.

Application Case Studies in Various Fields

• Pump and Motor Monitoring: Reading the running/stopped status, auto/manual selector switch positions, and fault contacts from motor starters and pumps in a water treatment plant or refinery.
• Valve Position Feedback: Monitoring the open/close limit switch signals from motor-operated valves (MOVs) and solenoid valves in a chemical processing unit.
• Safety Interlock Systems: Providing input for emergency stop (E-Stop) buttons, fire and gas detection system triggers, and permissive switches for equipment start-up sequences.
• Tank Level Alarms: Reading high-level, low-level, and high-high alarm switch contacts from tanks and vessels.
• Conveyor and Machine Control: Sensing product presence via photoelectric or proximity sensors, and reading mode selector switches on packaging or assembly lines.

Comparison with Competing Products
The HONEYWELL CC-TDIL01 is a proprietary DCS component. Its direct competitors are digital input modules from other major DCS vendors, such as Emerson (DeltaV), Yokogawa (CENTUM), and Siemens (PCS 7). Within the Honeywell ecosystem, its main alternative would be a newer generation I/O module (like from the Experion LE series), offering potential enhancements in diagnostics or communication speed. Compared to universal PLC digital input cards, the HONEYWELL CC-TDIL01 is distinguished by its native integration with Experion’s control strategy builder, historian, and alarm management systems, providing a more cohesive engineering and operational environment.

Selection Suggestions and Important Precautions

1. Verify Voltage Compatibility: Confirm that the input voltage specification of the HONEYWELL CC-TDIL01 (e.g., 24V DC, 48V DC, 125V DC) matches the field device output and the system’s internal power supply. Using an incorrect voltage level can damage the module.
2. Understand Sinking vs. Sourcing: Ensure correct wiring by understanding whether the HONEYWELL CC-TDIL01 module is configured as a sinking or sourcing input, and that your field devices are wired compatibly to create a complete circuit.
3. Use Surge Protection for Long Field Runs: For inputs connected to field devices over long cable runs, especially in areas prone to lightning strikes, install appropriate surge protection devices to protect the module’s input circuits.
4. Check I/O Rack Capacity and Addressing: Ensure the C-series I/O rack has an available slot that supports this module type. Correctly configure the module’s address via hardware switches or software to avoid conflicts within the control network.
5. Perform Loop Checks: Before system commissioning, perform a comprehensive loop check by physically actuating each field device (e.g., pressing a button) and verifying the correct state change is reflected in the DCS operator station. This validates the wiring, module, and configuration. Always procure the HONEYWELL CC-TDIL01 from authorized Honeywell channels to ensure authenticity and receive proper technical support.
