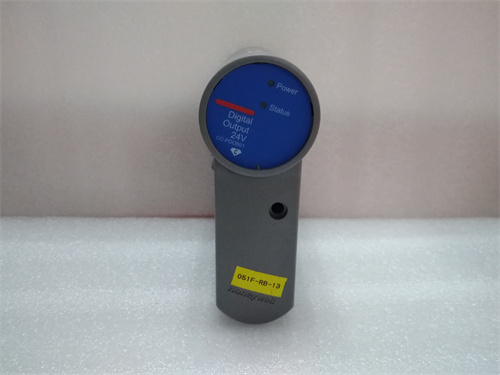

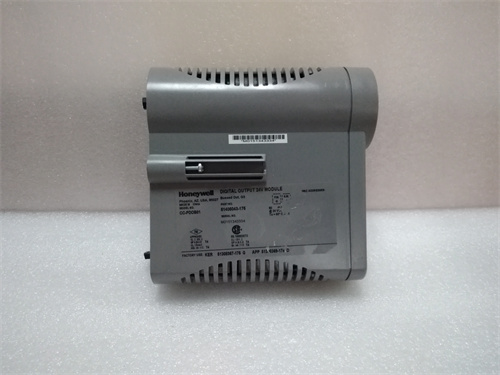

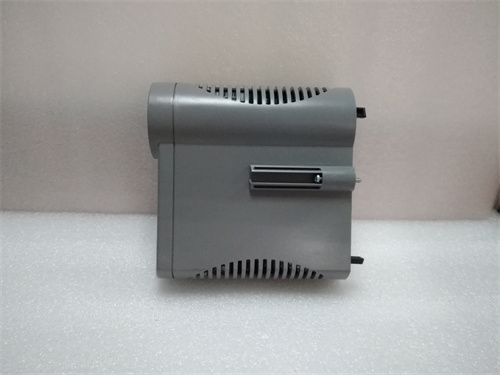

HONEYWELL CC-PDOB01

Description

Product Description

The HONEYWELL CC-PDOB01 is a high-density digital output module from the Honeywell ControlEdge and Experion Process Knowledge System (PKS) C Series I/O family. This module functions as a Discrete (Digital) Output Module, providing reliable switching for field loads such as solenoid valves, motor contactors, and indicator lights. The CC-PDOB01 is designed to deliver robust, isolated output channels that execute control commands from the system’s controllers with high accuracy and diagnostic capability. Integrating the Honeywell CC-PDOB01 into a C Series I/O chassis ensures dependable actuation of field devices within a high-availability process control architecture.

Product Parameters and Specifications

• Product Type: Discrete Output Module (DO) for C Series I/O.
• Compatible Systems: Honeywell ControlEdge PLC and Experion PKS C Series I/O.
• Output Channels: 16 isolated output channels.
• Output Type: Sourcing or Sinking configuration, typically defined by the specific wiring and field power supply connection (often 24V DC).
• Output Current Rating: Specified per channel (e.g., 0.5A or 2.0A) and a total module current limit.
• Load Voltage: Typically 24V DC, suitable for standard industrial actuators.
• Protection: Includes built-in protection against short-circuits, overloads, and inductive kickback to ensure module longevity.
• Isolation: Channel-to-channel and channel-to-system isolation for noise immunity and to prevent fault propagation.
• Diagnostics: Comprehensive onboard diagnostics for module health, output state feedback, and field load fault detection (e.g., open load, short circuit).
• Hot-Swappable: Designed for insertion or removal from a powered and operating I/O chassis without system shutdown, supporting high availability.
• Configuration: Configured via Honeywell’s ControlEdge/Experion engineering tools for parameters such as output state on fault and diagnostic alarm settings.

Advantages and Features

1. High-Density and Space Efficiency: The HONEYWELL CC-PDOB01 provides 16 digital outputs in a single module slot, optimizing rack space and offering a low cost-per-point for applications requiring numerous actuators.
2. Robust Diagnostic Capabilities: Advanced diagnostics monitor not only the module’s internal health but also the status of the connected field load. It can detect faults like open wires, short circuits, and overload conditions, providing early warnings for predictive maintenance.
3. High Reliability and Built-in Protection: Designed with industrial-grade components and integrated protection circuits, the module ensures reliable switching and is safeguarded against common field wiring faults, reducing downtime and maintenance costs.
4. Seamless System Integration: As a native C Series module, the CC-PDOB01 is fully integrated into the Honeywell control engineering and operator workstation environment. Configuration, real-time monitoring, and diagnostics are managed within the unified ControlEdge/Experion software suite.
5. Hot-Swappable for Maximum Uptime: The ability to replace the module without taking the I/O node or process offline is a critical feature for continuous process industries, ensuring high system availability and simplifying maintenance procedures.

Application Cases in Various Fields

• Oil & Gas Production (ESD Valves): Controls critical solenoid valves for emergency shutdown (ESD) sequences and process venting.
• Chemical Processing: Operates solenoid valves for batch reactor feed lines, drain valves, and agitator motor starters.
• Water and Wastewater Treatment: Drives pump motor contactors, valve actuator motors, and alarm beacons/flashers across treatment plants.
• Pharmaceutical Manufacturing: Provides outputs for controlling actuators on filling machines, packaging lines, and clean-in-place (CIP) system valves.

Comparison with Competing Products

• vs. Relay Output Modules: Relay modules can switch AC/DC and handle higher inrush currents but are slower, have a finite mechanical life, and offer fewer diagnostics. The solid-state CC-PDOB01 offers faster switching, longer lifespan, higher density, and superior diagnostic integration for DC load switching.
• vs. Lower-Density Output Modules (8-channel): Lower-density modules may offer higher current per channel. The Honeywell CC-PDOB01 is the optimal choice when the priority is maximizing the number of controlled devices within the current rating, providing better space and cost efficiency.
• vs. Third-Party or Generic DO Modules: Generic modules may not offer the same level of integrated load diagnostics, seamless configuration within the Honeywell ecosystem, or guaranteed hot-swap performance. The genuine CC-PDOB01 ensures full system compatibility and support.

Selection Suggestions and Precautions

1. Accurate Load Analysis: Calculate the inrush and steady-state current for each connected load (e.g., solenoid coil, contactor). Ensure the sum of currents for all simultaneously active channels does not exceed the module’s total current rating.
2. External Fusing is a Best Practice: Despite internal protection, it is critical to install an external fast-acting fuse on the field power supply line feeding each output group. This protects the field wiring in case of a sustained fault.
3. Correct Field Wiring and Power Supply: Use the proper wiring diagram for your chosen configuration (sourcing vs. sinking). Provide a clean, well-regulated 24V DC field power supply. The negative/positive side of this supply must be connected to the module’s common terminal as required.
4. Utilize Diagnostic Alarms: Configure the system to monitor the module’s diagnostic alarms (open load, short circuit, module fault). Integrating these into the control system’s alarm management strategy enables rapid response to field issues.
5. Verify Redundancy Requirements: For critical outputs, assess if a single CC-PDOB01 module is sufficient or if output redundancy (using duplicated modules and logic) is required by the safety or availability analysis of the process.
