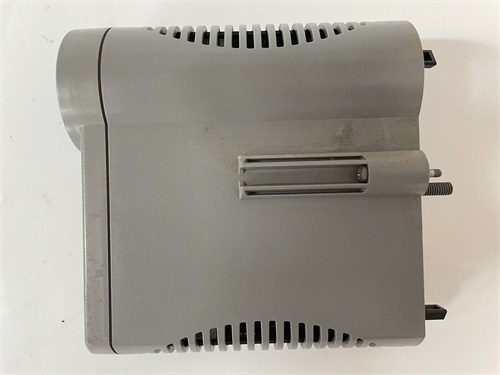

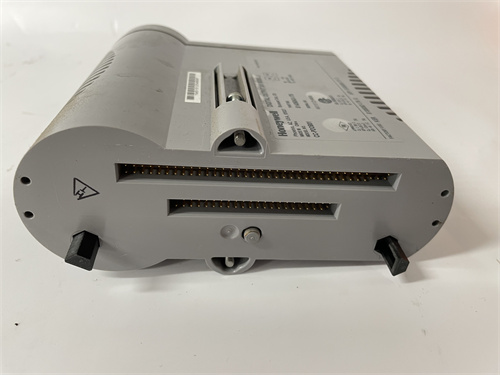

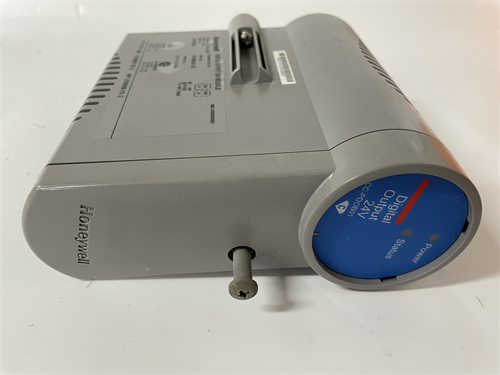

HONEYWELL CC-PDOB01

Description

Product Description

The Honeywell CC-PDOB01 is a high-density, 32-channel discrete (digital) output module designed for the Honeywell Experion PKS and ControlEdge distributed control system (DCS) platforms. This module serves as a critical interface, converting low-voltage logic commands from the controller into discrete signals to control field devices such as solenoid valves, motor starters, relays, and indicator lamps. The CC-PDOB01 module is engineered for reliability and high channel density, allowing for efficient use of cabinet space in large-scale automation projects. Integration of the Honeywell CC-PDOB01 into a DCS I/O network provides centralized, reliable control over a wide array of on/off actuation points in a process plant.

Technical Parameters

• Device Type: High-Density Discrete Output Module.
• Manufacturer: Honeywell.
• Compatible Systems: Experion PKS (C Series I/O), ControlEdge PLC and HC900 (with appropriate baseplate).
• Number of Channels: 32 isolated output channels.
• Output Type: Sourcing (positive switching) transistor outputs.
• Output Voltage Range: Typically 12-24 V DC.
• Output Current per Channel: Up to 0.5 A (sink current). Total module current is limited.
• Isolation: Channel-to-channel and channel-to-bus isolation for improved noise immunity and fault containment.
• Diagnostics: Module and channel-level diagnostics (e.g., short-circuit detection, field power monitoring, communication health) reported to the controller.
• Connection: Terminates to a removable terminal block (RTB) or field wiring baseplate (e.g., CC-FTBxx series).
• LED Indication: Individual per-channel status LEDs and module health/communication LEDs.

Advantages and Features

• High Channel Density: The CC-PDOB01 packs 32 output points into a single module, significantly reducing the hardware footprint, wiring complexity, and overall cost per point in large installations.
• High Reliability and Diagnostics: Built-in diagnostics for short-circuit detection and field power supervision enhance system availability by allowing for proactive maintenance and rapid fault location.
• Seamless DCS Integration: As a native Honeywell module, the Honeywell CC-PDOB01 integrates flawlessly with Experion PKS and ControlEdge systems. Configuration, monitoring, and diagnostics are managed directly within the Control Database and operator displays.
• Robust Design for Industrial Environments: Designed to operate reliably in environments with electrical noise, vibration, and wide temperature ranges typical of process industry settings.
• Hot Swappable: Modules are designed to be hot-swappable (when used in a supported redundant configuration), allowing for replacement without shutting down the process, thereby increasing system availability.

Application Cases in Various Fields

• Oil & Gas Refineries: Controlling purge valves, vent valves, pump run commands, and indicator lights for unit status.
• Chemical Processing: Operating solenoid valves for batch sequencing, actuating agitator motors, and controlling safety shower alarms.
• Pharmaceutical Manufacturing: Automating the control of pneumatic actuators on filling lines, clean-in-place (CIP) system valves, and equipment interlocks.
• Power Generation: Managing auxiliary equipment such as lube oil pumps, cooling fan motors, and actuator commands for burner management.
• Water & Wastewater Treatment: Controlling pump start/stop, opening/closing of sluice gates, and activating aerator drives.

Comparison with Competing Products

Compared to discrete output modules from other DCS vendors (e.g., Emerson DeltaV, Siemens PCS 7) or generic PLC modules, the Honeywell CC-PDOB01 offers distinct advantages within its ecosystem:

• Native Integration: Offers superior integration, diagnostics visibility, and engineering workflow within the Honeywell Experion environment compared to third-party or generic modules.
• Density and Form Factor: The 32-channel count in a standard form factor is competitive, often providing better density than some older-generation modules from competitors.
• System-Wide Diagnostics: Faults are not just local; they are integrated into the plant-wide diagnostic and alarm management system of Experion PKS, providing operators with a unified view.

Selection Suggestions and Precautions

1. Verify System Compatibility: Confirm that the CC-PDOB01 is compatible with your specific Experion or ControlEdge release, controller type (C300, CE-PLxx), and I/O baseplate.
2. Calculate Load Current and Power Supply: Ensure the total current draw of all 32 activated channels does not exceed the module’s and field power supply’s limits. Consider derating for high-ambient temperatures.
3. Use Proper Protection for Inductive Loads: When driving inductive loads (solenoids, relays), always use external suppression devices (flyback diodes, RC networks, or varistors) across the load to protect the module’s transistor outputs from voltage spikes.
4. Implement Redundancy for Critical Loops: For outputs critical to safety or continuous operation, consider using the module in a redundant I/O pair configuration as per Honeywell’s guidelines.
5. Follow Wiring and Grounding Guidelines: Adhere strictly to Honeywell’s installation manuals for wiring, shielding, and grounding to ensure noise immunity and prevent ground loops. Use the recommended terminal blocks (RTBs).
