HONEYWELL CC-PDOB01

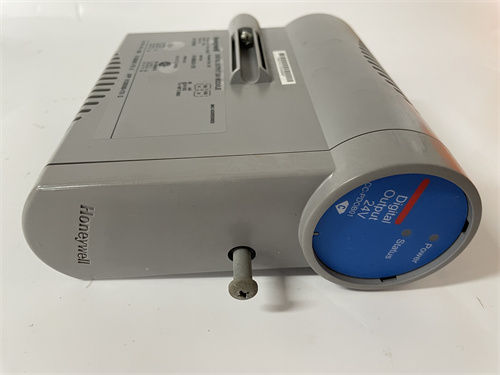

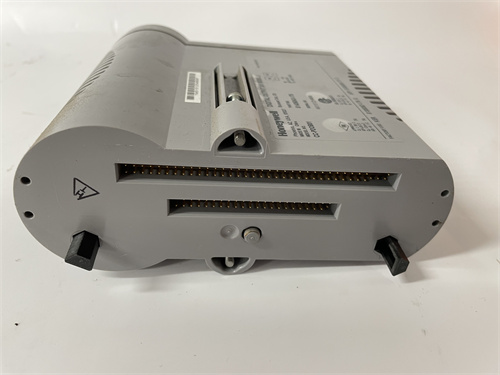

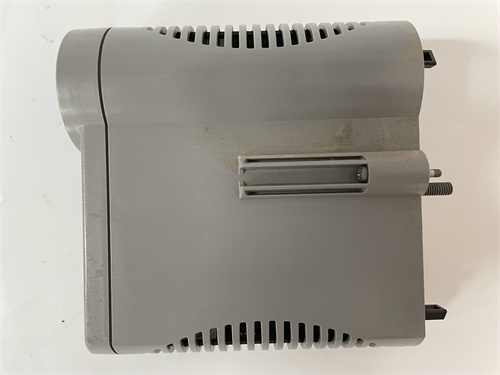

HONEYWELL CC-PDOB01 is a 24VDC digital output IOTA module designed for Honeywell Experion PKS systems and C300 controllers, specializing in driving external devices like relays, valves, and motors through reliable digital signal switching. HONEYWELL CC-PDOB01 features 32 independent output channels with 1500VAC/VDC current isolation, effectively resisting electromagnetic interference in harsh industrial environments.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

HONEYWELL CC-PDOB01 is a 24VDC digital output IOTA module designed for Honeywell Experion PKS systems and C300 controllers, specializing in driving external devices like relays, valves, and motors through reliable digital signal switching. HONEYWELL CC-PDOB01 features 32 independent output channels with 1500VAC/VDC current isolation, effectively resisting electromagnetic interference in harsh industrial environments. HONEYWELL CC-PDOB01 supports a maximum load voltage of 30VDC and 0.5A per channel, delivering stable on-state (24V typical) and off-state (0V max) performance for critical control loops. HONEYWELL CC-PDOB01 adopts a modular design for easy integration and maintenance, seamlessly fitting into HPMM card files with 15 slots for flexible system expansion. HONEYWELL CC-PDOB01 operates from -40°C to 85°C, making it suitable for process industries like chemical, petroleum, and power, as well as discrete manufacturing. HONEYWELL CC-PDOB01 offers software-configurable flexibility, adapting to diverse application requirements without hardware modifications.

Product Parameters

Parameter Details
Module Type 24VDC Digital Output IOTA Module (HONEYWELL CC-PDOB01)
Core Function Digital signal switching; multi-channel device control; high-voltage isolation; modular integration; Experion PKS/C300 compatibility
Compatible Systems Honeywell Experion PKS systems; C300 controllers; HPMM 15-slot card files
Channel Count 32 independent digital output channels
Output Type 24VDC bus output
Load Voltage Max 30VDC (24VDC typical)
Load Current 0.5A per channel (max)
Isolation Voltage 1500VAC RMS or 1500VDC (current isolation)
On-State Voltage 24VDC (typical)
Off-State Voltage 0VDC (max; 3.3VDC max under no-load conditions)
Off-State Leakage Current 0.5A (max)
Operating Temperature -40°C to 85°C
Integration Fits HPMM 15-slot card files (slots 3-15 for IOP card installation)
Compliance Industrial automation control module standards

Advantages and Features

  1. 32-Channel High-Density Design: HONEYWELL CC-PDOB01 controls multiple devices with a single module, reducing rack space usage by over 50% compared to 8/16-channel alternatives.
  2. Strong Isolation Protection: 1500VAC/VDC isolation minimizes downtime caused by electromagnetic interference or electrical noise in industrial settings.
  3. Robust Load Capacity: 0.5A per channel and 30VDC max load voltage support diverse external devices like relays, valves, and small motors.
  4. Seamless System Integration: Natively compatible with Experion PKS and C300 controllers, fitting HPMM 15-slot card files for flexible system expansion.
  5. Wide Temperature Adaptability: -40°C to 85°C operating range suits extreme industrial environments without additional temperature control.
  6. Modular & Easy Maintenance: Modular design simplifies installation, replacement, and system upgrades, reducing maintenance time and costs.

Application Cases in Application Fields

  • Petroleum Refinery Valve Control: HONEYWELL CC-PDOB01 controlled 26 process valves in a distillation unit, using 1500VDC isolation to resist pipeline electrical interference and avoid a 3-hour production outage (~$150k savings).
  • Chemical Plant Batch Processing: It drove 32 interposing relays for reactor feed pumps, leveraging 0.5A channel current capacity to handle high-load operations and ensure consistent batch quality.
  • Power Plant Auxiliary Control: HONEYWELL CC-PDOB01 integrated with C300 controllers to manage boiler auxiliary equipment, using modular design to quickly replace a faulty module without system shutdown.
  • Automotive Assembly Line: It controlled conveyor belt motors and pneumatic tools, fitting HPMM 15-slot card files to expand I/O capacity as the production line scaled.

Comparisons with Competing Products

Parameter HONEYWELL CC-PDOB01 Siemens SM 322 (6ES7322-1BH01-0AA0) ABB DO810
Module Type 32-channel 24VDC digital output module 16-channel 24VDC digital output module 8-channel 24VDC digital output module
Channel Density 32 channels 16 channels 8 channels
Isolation Voltage 1500VAC/VDC 500VAC 1000VAC
Per-Channel Current 0.5A 0.5A 0.5A
Operating Temperature -40°C to 85°C 0°C to 60°C -25°C to 60°C
Native Integration Honeywell Experion PKS/C300 Siemens TIA Portal ABB 800xA

Selection Suggestions and Precautions

Selection Suggestions

  • Choose HONEYWELL CC-PDOB01 for Experion PKS/C300 systems needing high-density (32-channel) digital output with strong isolation and wide temperature adaptability.
  • Prioritize it for petroleum, chemical, power, or automotive applications requiring reliable control of relays, valves, or small motors.

Precautions

  • Ensure compatibility with HPMM 15-slot card files and verify slot allocation (slots 3-15) during installation of HONEYWELL CC-PDOB01.
  • Do not exceed 0.5A per channel or 30VDC load voltage to prevent module damage or performance degradation.
  • Use shielded cables for field wiring to maximize the isolation effect of HONEYWELL CC-PDOB01 and reduce interference.
  • Follow static protection protocols when handling the module to avoid damaging internal electronic components.
  • Regularly inspect connection terminals and isolation integrity to maintain stable operation in harsh industrial environments.
