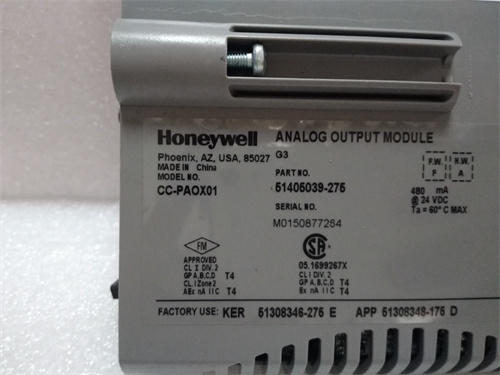

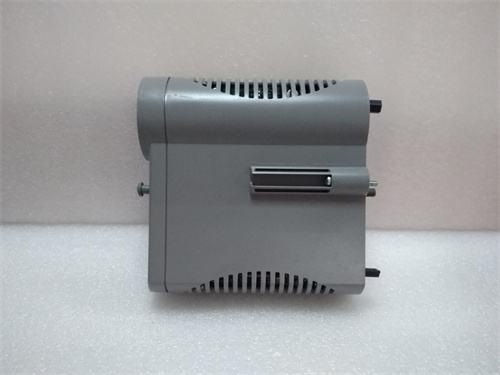

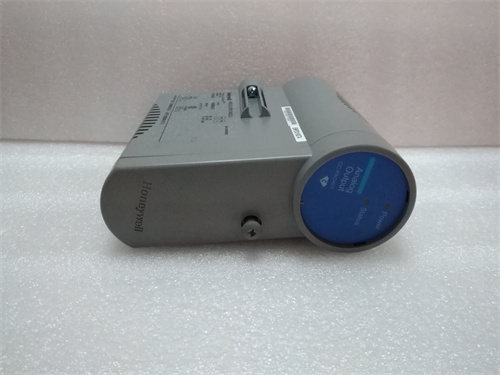

HONEYWELL CC-PAOX01

Description

Product Description

The HONEYWELL CC-PAOX01 is a specialized I/O module from the Honeywell Experion Process Knowledge System (PKS) family, specifically a Process Automation Series I/O card. This module functions as a high-density analog output card, designed to interface the Experion C Series controller with field devices requiring a command signal. The primary role of the HONEYWELL CC-PAOX01 is to convert digital control signals from the controller’s processor into precise, isolated 4-20 mA analog current signals used to command final control elements such as control valves, variable frequency drives (VFDs), and positioning actuators. Its design prioritizes reliability, accuracy, and diagnostics within the tightly integrated Experion PKS architecture, making it a critical component for executing control strategies in continuous process industries like oil & gas, chemicals, and refining.

Product Parameters

• Product Type: High-Density Analog Output Module for Experion PKS.
• System Compatibility: Designed for Honeywell Experion C200, C300, or ACE controllers, fitting into a specific I/O module slot on the C Series I/O card file.
• Number of Channels: Typically provides 8 or 16 isolated analog output channels (specific count defined by the full model suffix).
• Output Signal: 4-20 mA current output, user-configurable for active source or passive sink operation.
• Resolution: High resolution (e.g., 16-bit) for precise output control.
• Isolation: Channel-to-channel and channel-to-system isolation for safety and noise immunity.
• Update Rate: Fast update time synchronized with the controller’s control execution period.
• Diagnostics: Comprehensive onboard diagnostics for module health, channel faults, wire break (open circuit), and short-circuit conditions.
• Field Power: Requires an external 24V DC power supply for the field side of the outputs.
• Redundancy Support: Can be used in redundant (paired) configurations for critical control loops to ensure high availability.

Advantages and Key Features

• High Channel Density: The HONEYWELL CC-PAOX01 consolidates control of multiple final elements into a single module, optimizing controller rack space and reducing hardware footprint for large systems.
• High Accuracy and Stability: Provides stable, drift-free analog outputs critical for precise process control, ensuring control valves and other devices respond accurately to the controller’s commands.
• Advanced Diagnostic Capabilities: Continuously monitors each output channel’s health and field wiring integrity. It can detect and report open-circuit (wire break) and short-circuit conditions, enabling predictive maintenance and preventing undetected control failures.
• Seamless Experion PKS Integration: As a native Honeywell FTE (Fault Tolerant Ethernet) I/O module, it is fully managed by the Experion control builder software. Configuration, alarming, and asset management are centralized, simplifying engineering and lifecycle management.
• Robust and Reliable Design: Built to the high environmental and electrical standards required for 24/7 operation in industrial process plants, ensuring long-term reliability.

Application Case Studies

• Refinery Distillation Column Control: In a crude distillation unit, multiple HONEYWELL CC-PAOX01 modules provide command signals to the pneumatic positioners on dozens of control valves regulating feed flow, reflux, product draws, and column pressure. The module’s precision ensures stable column operation.
• Chemical Reactor Temperature Cascade Control: The module outputs the setpoint signal from the primary temperature controller to a secondary flow controller on a coolant valve. Its fast update rate and accuracy are essential for the responsive performance of the cascade loop.
• Pipeline Compressor Station Anti-Surge Control: For a critical centrifugal compressor, the analog output from this module commands the high-speed recycle valve actuator. The module’s deterministic performance and diagnostics are vital for the fast-acting surge protection system.

Comparison with Competing Products

The HONEYWELL CC-PAOX01 competes with high-density analog output modules from other major DCS vendors, such as the Emerson DeltaV CHARM AO card or the ABB System 800xA AO 810 module. Compared to generic PLC analog output cards (e.g., from Allen-Bradley or Siemens), the CC-PAOX01 is deeply integrated into the Experion PKS’s control, diagnostic, and asset management framework, offering superior system-level visibility and engineering efficiency. Its key differentiator is its native support for Honeywell’s control network and diagnostic suite. While third-party I/O via gateways is possible, the native HONEYWELL CC-PAOX01 provides guaranteed performance, simplified support, and leverages the full capabilities of the Experion system.

Selection Suggestions and Precautions

• Selection Suggestion: Select the HONEYWELL CC-PAOX01 when designing or expanding a Honeywell Experion PKS system that requires reliable, high-density analog output capability for control valves, drives, or other 4-20 mA devices. It is the standard choice for integrated process control within the Experion ecosystem.
• Precautions:
  1. Controller and I/O File Compatibility: This module must be compatible with the specific Experion controller (C200, C300) and the generation of the C Series I/O card file. Verify compatibility with the Experion hardware configuration tool.
  2. Field Power Supply Requirement: Each channel requires field power to drive the 4-20 mA loop. An appropriately sized and redundant 24V DC power supply must be provided for the field side, separate from the system logic power.
  3. Configuration of Output Type: The module must be correctly configured in the control builder software for each channel as either an active source (provides loop power) or a passive sink (requires an external supply). Mismatching this with the field device will result in no output.
  4. Wiring and Grounding: Use proper shielded twisted-pair cables for each output. Follow grounding guidelines meticulously—typically, the shield should be grounded at the controller end only to prevent ground loops, which is critical for the module’s noise immunity and diagnostic accuracy.
