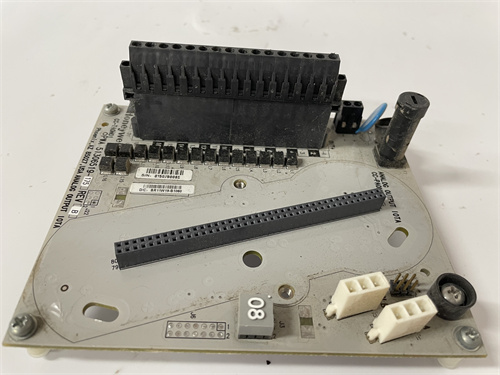

HONEYWELL CC-PAOH51

Description

Product Description

Product Parameters

• Brand/Model: HONEYWELL CC-PAOH51
• Core Analog Output Parameters
  • Output Channels: 8 isolated channels (4-20mA DC)
  • Output Range: 4-20mA DC (configurable to 0-20mA, 0-10V DC via software)
  • Resolution: 16-bit
  • Accuracy: ±0.05% of full scale (25°C)
  • Load Capacity: 0-600Ω (4-20mA), 0-5kΩ (0-10V)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: Honeywell Experion® PKS, TPS DCS (PM, HM, and LM controllers)
  • Diagnostic Functions: Overcurrent/short-circuit detection, open-load detection, output drift monitoring, LED status indicators (per channel)
  • Communication: Honeywell ControlNet™ backplane, OPC UA (for remote monitoring)
  • Configuration: Honeywell Experion® Engineering Environment, TPS Configuration Tool
• Environmental & Physical Parameters
  • Operating Temperature: 0°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave)
  • Power Supply: 24V DC (from DCS chassis), power consumption ≤ 10W
  • Protection Grade: IP20 (rack-mount installation)
  • Dimensions: 120mm (W) × 200mm (H) × 150mm (D) (Experion® PKS chassis-compatible)
  • Installation: Hot-swappable (Honeywell certified chassis)

Advantages & Features

1. High Precision & Isolation: HONEYWELL CC-PAOH51 offers 16-bit resolution and ±0.05% full-scale accuracy, with robust channel-to-channel and channel-to-ground isolation to eliminate signal interference—critical for precise control of valves and actuators in high-noise industrial environments.
2. Comprehensive Protection Mechanisms: Built-in overcurrent, short-circuit, and open-load protection prevents damage to the module and connected field devices (e.g., control valves, variable speed drives), minimizing unplanned downtime and maintenance costs.
3. Hot-Swappable Design: The module supports hot-swappable replacement without shutting down the DCS system, enabling maintenance during continuous process operation—essential for mission-critical applications like chemical batch processing and power plant turbine control.
4. Native Experion®/TPS Integration: Fully compatible with Honeywell’s DCS platforms, HONEYWELL CC-PAOH51 leverages pre-configured signal mapping and diagnostic tools to simplify setup, reduce commissioning time, and ensure seamless communication with controllers.

Application Fields & Cases

1. Oil Refinery Valve Control: A major oil refinery deployed HONEYWELL CC-PAOH51 modules in its Experion® PKS DCS to control 8 control valves per module in a crude distillation unit. The module’s high accuracy (±0.05%) ensured precise valve positioning, optimizing distillation efficiency and reducing energy consumption by 8%.
2. Chemical Plant Batch Reactor Control: A petrochemical facility used HONEYWELL CC-PAOH51 to output 4-20mA signals to dosing pumps and agitator speed controllers in batch reactors. Hot-swappable installation allowed module replacement during production runs, avoiding costly batch interruptions and ensuring consistent product quality.
3. Power Generation Boiler Control: A coal-fired power plant integrated HONEYWELL CC-PAOH51 into its TPS DCS to regulate boiler fuel valves and air dampers. The module’s overcurrent protection prevented damage from electrical faults, while diagnostic alerts enabled proactive maintenance of faulty actuators, reducing unplanned outages by 15%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: HONEYWELL CC-PAOH51 is ideal for Honeywell Experion® PKS/TPS DCS users needing high-precision analog output with isolation and hot-swap support (e.g., oil & gas, chemical processing). For Emerson DeltaV DCS, choose DeltaV AO modules; for Siemens S7-400/PCS 7 systems, select S7-400 AO modules.
2. Precautions:
   • Verify compatibility with Honeywell DCS firmware (minimum v4.0 for Experion® PKS, v3.0 for TPS) before installation—older firmware may cause configuration or communication errors.
   • Use shielded twisted-pair cables for analog output wiring to minimize EMI interference, especially in areas with high electrical noise (e.g., near motors or switchgear).
   • Calibrate each channel via Honeywell engineering software after installation to ensure accuracy (follow NIST-traceable calibration standards).
   • Follow Honeywell hot-swappable procedures (per module documentation) to avoid damaging the DCS chassis or other modules during replacement.
   • Ensure connected loads do not exceed the module’s load capacity (600Ω for 4-20mA) to prevent output distortion or module failure.
