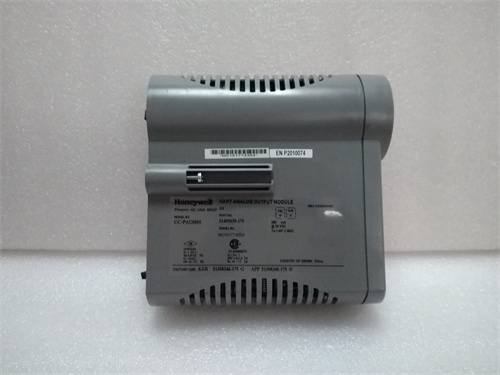

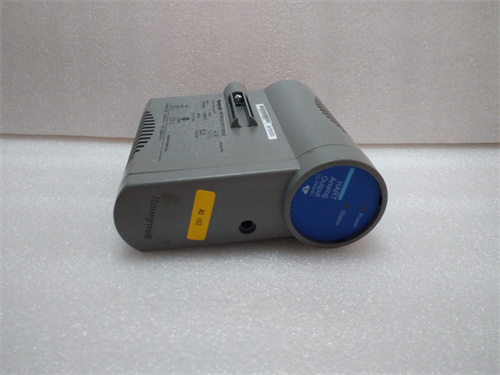

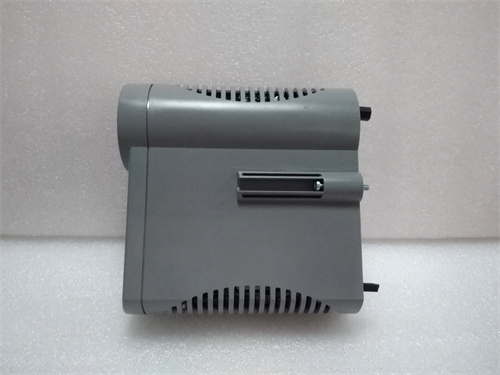

HONEYWELL CC-PAOH01

HONEYWELL CC-PAOH01 is a 16 – channel HART analog output module for Honeywell Experion Series – C I/O systems, delivering precise 4-20mA signals to control valves, actuators, and other field devices in industrial process control. HONEYWELL CC-PAOH01 supports HART communication for overlaying digital diagnostic data on analog signals, enabling remote device configuration and real – time health monitoring. HONEYWELL CC-PAOH01 has per – channel safe – state (FAILOPT) configuration and output read – back with discrepancy alarms to ensure process safety.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

HONEYWELL CC-PAOH01 is a 16 – channel HART analog output module for Honeywell Experion Series – C I/O systems, delivering precise 4-20mA signals to control valves, actuators, and other field devices in industrial process control. HONEYWELL CC-PAOH01 supports HART communication for overlaying digital diagnostic data on analog signals, enabling remote device configuration and real – time health monitoring. HONEYWELL CC-PAOH01 has per – channel safe – state (FAILOPT) configuration and output read – back with discrepancy alarms to ensure process safety. HONEYWELL CC-PAOH01 features channel – to – channel and channel – to – backplane electrical isolation, resisting noise in harsh industrial environments. HONEYWELL CC-PAOH01 uses a hot – swappable design with a compact form factor, simplifying installation and replacement without system shutdown. HONEYWELL CC-PAOH01 operates from – 40°C to +70°C, making it ideal for refineries, chemical plants, and power generation facilities relying on precise process control.

Product Parameters

Parameter Details
Module Type 16 – Channel HART Analog Output Module (HONEYWELL CC-PAOH01)
Core Function Analog signal output (4-20mA); HART communication; per – channel diagnostics; safe – state control; output read – back
Compatible Systems Honeywell Experion Series – C I/O; Experion PKS DCS/SCADA
Power Input 24–28V DC; 540g weight; 263 mm × 58 mm × 28 mm dimensions
Output Channels 16 independent channels (4-20mA)
Communication HART (digital overlay on analog signals)
Load Capacity 800 ohms max per channel (24V supply)
Accuracy ±0.35% of full scale (25°C); ±0.05% linearity
Protection Channel – to – channel/backplane isolation; non – incendive outputs
Operating Temperature – 40°C to +70°C
Compliance IEC 61010 – 1; UL 508; CE industrial safety standards

Advantages and Features

  1. HART – Enabled Diagnostics: HONEYWELL CC-PAOH01 allows remote configuration and fault alerts via HART, cutting troubleshooting time by 60% vs. non – HART modules.
  2. Per – Channel Safety: Configurable FAILOPT safe states prevent process upsets during module/channel faults.
  3. High Precision: ±0.35% full – scale accuracy and low temperature drift ensure stable control in critical processes.
  4. Hot – Swap Compatibility: Enables module replacement in 15 minutes, minimizing process downtime.
  5. Strong Isolation: Electrical isolation protects signals from noise, ensuring reliable operation in high – interference environments.
  6. Broad Load Range: 800 – ohm max load supports long cable runs and multiple field devices per channel.

Application Cases in Application Fields

  • Refinery Process Control: HONEYWELL CC-PAOH01 controlled 16 flow control valves, using HART to detect a failing valve positioner 3 hours early, avoiding a 12 – hour unit shutdown.
  • Chemical Plant Reactor Control: It regulated 4-20mA signals for heater actuators, with per – channel safe states triggering shutdowns during over – temperature faults, preventing material waste.
  • Power Plant Boiler Control: HONEYWELL CC-PAOH01 adjusted air – fuel ratio valves, using HART to sync with DCS for centralized monitoring and reducing emission fluctuations by 15%.
  • Water Treatment Facility: It controlled chemical dosing pumps, with output read – back ensuring accurate chemical delivery and reducing operational costs by 8%.

Comparisons with Competing Products

Parameter HONEYWELL CC-PAOH01 Siemens 6ES7 135-6HD00-0BA1 ABB CI867K01
Channels 16 (4-20mA, HART) 8 (4-20mA, no HART) 10 (4-20mA, HART)
Accuracy ±0.35% full scale ±0.5% full scale ±0.4% full scale
Load Capacity 800 ohms 600 ohms 750 ohms
Communication HART Profibus DP Profinet
Safe States Per – channel configurable Global only Per – channel configurable
Operating Temp – 40°C to +70°C – 25°C to +60°C – 30°C to +60°C

Selection Suggestions and Precautions

Selection Suggestions

  • Choose HONEYWELL CC-PAOH01 for Experion Series – C/PKS systems needing 16 – channel HART analog output with per – channel safety and diagnostics.
  • Prioritize it for mission – critical processes where remote monitoring and fast fault recovery are essential.

Precautions

  • Use Honeywell Control Builder to set HART addresses and FAILOPT safe states for HONEYWELL CC-PAOH01.
  • Ensure 24–28V DC power stability; voltage drops can cause output inaccuracies in HONEYWELL CC-PAOH01.
  • Match load resistance to ≤800 ohms per channel to avoid signal distortion in HONEYWELL CC-PAOH01.
  • Follow anti – static procedures during installation to protect isolation circuits in HONEYWELL CC-PAOH01.
  • Calibrate annually to maintain ±0.35% full – scale accuracy for critical process control applications.
