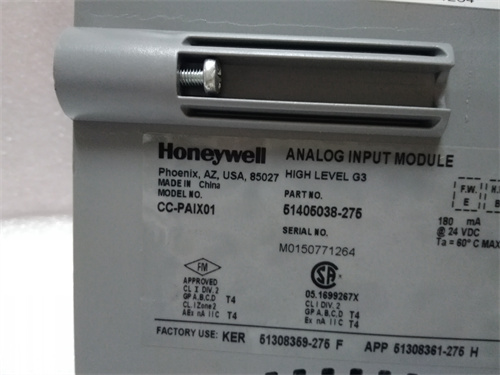

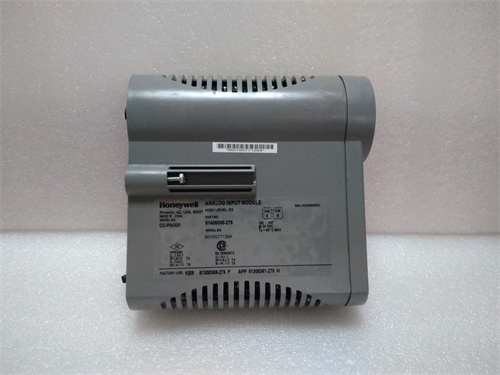

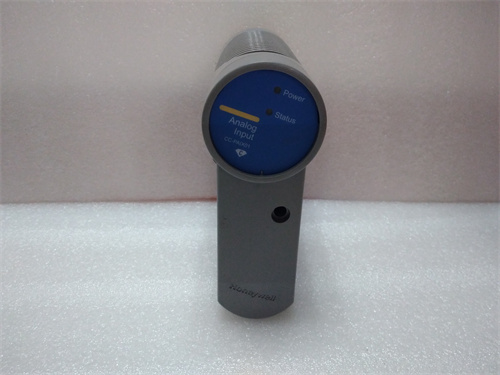

Product Analysis: HONEYWELL CC-PAIX01

Introduction and Product Description

The HONEYWELL CC-PAIX01 is a high-density analog input module from the highly regarded Experion Process Knowledge System (PKS) C Series I/O family. This module serves as a critical interface, connecting a wide array of analog field instruments—such as pressure transmitters, temperature sensors (RTDs, thermocouples), and level transmitters—to the Experion PKS controllers. Designed for maximum flexibility and reliability, the HONEYWELL CC-PAIX01 handles 16 single-ended or 8 differential analog input channels, converting real-world 4-20 mA, 0-10 VDC, or low-level mV signals into precise digital values for the control system. Its modular, hot-swappable design is fundamental to the C Series architecture, enabling high availability and easy maintenance in continuous process plants.

Product Parameters

• Manufacturer: Honeywell Process Solutions
• System: Experion PKS C Series I/O
• Module Type: High-Density Universal Analog Input
• Channels: 16 channels (configurable as single-ended) or 8 channels (differential).
• Signal Types: Accepts 4-20 mA (with 24V loop power), 0-10 VDC, ±100 mV, and thermocouple/mV signals. Specific types are configured per channel in software.
• Isolation: Channel-to-channel and channel-to-bus isolation for high noise immunity and fault containment.
• Accuracy: High precision, typically ±0.1% of span or better.
• Hot-Swappable: Yes, can be replaced online without shutting down the associated I/O module or controller.
• Connections: Made via a removable, pluggable field wiring terminal block (often ordered separately, e.g., HONEYWELL CC-PAIX01 may require a specific TMBx terminal block).

Advantages and Features

1. Universal Channel Configuration: Each channel on the HONEYWELL CC-PAIX01 is individually configurable via software for different signal types, providing immense flexibility and reducing the variety of spare modules required in inventory.
2. High Density and Space Efficiency: With support for up to 16 input points in a single module slot, it optimizes cabinet space and reduces system footprint compared to older, lower-density I/O systems.
3. Robust Diagnostics: Provides extensive onboard diagnostics for field wire conditions (open circuit, short circuit), signal out-of-range, and module health, enabling predictive maintenance and faster troubleshooting.
4. Hot-Swap Capability: The modular design allows for the safe replacement of the HONEYWELL CC-PAIX01 while the parent C Series I/O module remains powered and online, minimizing process disruption during maintenance.
5. Seamless Experion Integration: As a native C Series module, the HONEYWELL CC-PAIX01 is fully integrated with the Experion PKS engineering environment (Control Builder), allowing for easy configuration, documentation, and asset management.

Application Cases in Key Fields

• Oil & Gas Refining: Used extensively to monitor pressures, temperatures, and flows from thousands of field instruments across distillation columns, reactors, and furnace units.
• Chemical & Petrochemical Plants: Critical for batch and continuous processes, acquiring data from pH sensors, reactor temperatures, and tank levels to ensure precise recipe control and product quality.
• Pharmaceutical & Biotech: Employed in validated processes to monitor critical parameters like vessel temperature, pressure, and conductivity in fermenters and purification systems, with the diagnostic capabilities supporting compliance.
• Power Generation: Used in boiler and turbine control systems to interface with a vast array of temperature (thermocouples) and pressure transmitters for efficient and safe plant operation.

Comparison with Competing Products
Compared to analog input modules from competing DCS platforms like Emerson’s DeltaV CHARM I/O or Siemens’ ET 200SP HA, the HONEYWELL CC-PAIX01 offers a similar high-density, configurable approach. A key differentiator of the C Series I/O is its “pair and spare” redundancy model at the module level, which competitors often implement differently. Compared to traditional PLC analog cards (e.g., Allen-Bradley 1756), the HONEYWELL CC-PAIX01 typically offers superior channel-to-channel isolation, higher density, and deeper integration with advanced process control strategies native to the Experion DCS. Its design philosophy prioritizes process availability and lifecycle cost in large-scale installations.

Selection Suggestions and Precautions

• Selection:
  • Verify the exact part number matches your existing hardware. The HONEYWELL CC-PAIX01 is a specific universal analog input module type.
  • Ensure you have the correct mating field wiring terminal block (e.g., TMB1, TMB2) as these are often sold separately.
  • Confirm compatibility with your C Series I/O module (e.g., C300, C200, or C100 controller with I/O packs).
• Precautions:
  1. Configuration is Key: Before installation, the module must be correctly configured in the Experion Control Builder software. A new HONEYWELL CC-PAIX01 will not function until its channel types and scaling are defined and downloaded.
  2. Proper Handling for Hot-Swap: While hot-swappable, always follow the documented procedure: place the parent I/O module in a “safe” state if possible, use the ejector levers, and wait for status LEDs to indicate it is safe to remove.
  3. Field Wiring Safety: Ensure field power is isolated or loops are safe before connecting/disconnecting wires from the terminal block. Verify the signal type configuration matches the physical wiring (e.g., a 4-20 mA input should not be wired to a thermocouple).
  4. Static Discharge: Handle the HONEYWELL CC-PAIX01 module and its terminal block using ESD precautions to prevent damage to sensitive electronics.
