HONEYWELL CC-PAIX01

Description

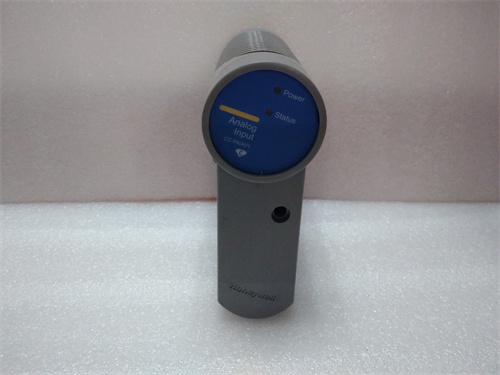

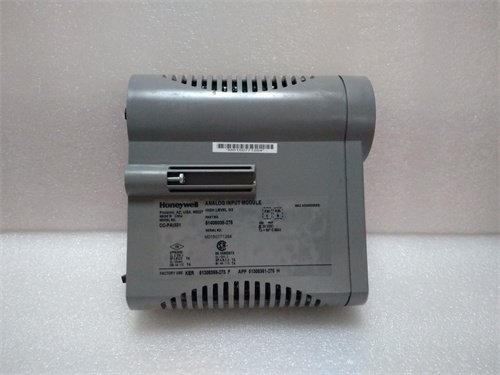

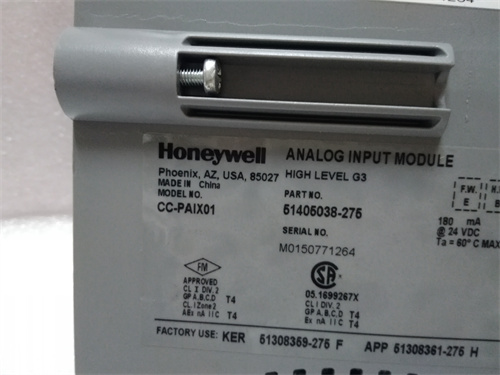

Product Description: I/O Module HONEYWELL CC-PAIX01

The HONEYWELL CC-PAIX01 is a high-performance analog input module integral to Honeywell’s Experion Process Knowledge System (PKS) and its legacy TDC 3000 platform. This module is specifically engineered to interface with isolated thermocouple inputs, providing precise temperature measurement for critical process control and monitoring. As a dedicated temperature input solution, the HONEYWELL CC-PAIX01 ensures accurate data acquisition from a wide array of thermocouple types commonly used in industrial processes. For comprehensive technical data, wiring diagrams, and compatibility lists, please visit the official resource: HONEYWELL CC-PAIX01. In high-temperature process environments, the reliability of the HONEYWELL CC-PAIX01 is paramount for both operational safety and product quality.

Key Parameters

• Signal Type: Analog Input (AI) for Thermocouples. It is designed to accept direct, millivolt-level signals from various standardized thermocouple types without requiring external transmitters.
• Supported Thermocouple Types: Configurable for multiple thermocouple types (e.g., J, K, T, E, R, S, B, N, C). The ‘X’ in the model number often denotes this extended or configurable type support.
• Channel Configuration: Typically provides 8 or 16 isolated input channels per module. Each channel is independently configurable for thermocouple type, temperature range, and cold junction compensation (CJC).
• Isolation and Accuracy: Features high channel-to-channel isolation and input-to-system isolation to prevent ground loops and noise. Delivers high accuracy (e.g., ±0.1°C or better) and includes built-in CJC sensors for precise reference junction compensation.
• Communication Interface: Installs into a C-series I/O module slot (e.g., within a C200 or C300 I/O rack) in the Honeywell DCS architecture. Communicates digitized temperature values to the controller via a high-speed backplane bus.
• Diagnostics: Includes advanced diagnostics for detecting open thermocouple wires, short circuits, out-of-range signals, and internal module faults, enabling proactive maintenance.

Advantages and Features
The primary advantage of the HONEYWELL CC-PAIX01 is its specialized, high-accuracy design for direct thermocouple interfacing within the Honeywell DCS. By eliminating the need for external signal transmitters or isolators, it simplifies system architecture, reduces potential points of failure, and lowers overall installation cost. Its high channel density and flexible configuration allow a single module type to serve multiple process areas with different thermocouple requirements. The module’s robust isolation and built-in diagnostics ensure reliable, maintenance-friendly operation in electrically noisy plant environments, making the HONEYWELL CC-PAIX01 a cornerstone for temperature-dependent control strategies.

Application Case Studies in Various Fields

• Refinery and Petrochemical Processes: Monitoring catalyst bed temperatures in reformers, furnace tube temperatures in cracking units, and distillation column tray temperatures.
• Chemical Reactor Control: Precisely measuring and controlling exothermic or endothermic reaction temperatures in batch and continuous reactors.
• Power Generation: Monitoring superheater and reheater steam temperatures, bearing temperatures on turbines, and stack gas temperatures.
• Metals and Glass Manufacturing: Measuring temperatures in furnaces, kilns, melters, and annealing lehrs.
• Pharmaceutical and Food Processing: Controlling sterilization temperatures, fermentation vessel temperatures, and cooking/drying process temperatures where direct sensor measurement is required.

Comparison with Competing Products
The HONEYWELL CC-PAIX01 competes with specialized thermocouple input modules from other DCS manufacturers like Emerson (DeltaV CHARMS T/C cards), Yokogawa (AIP5xx series for CENTUM), and Siemens (SM331 AI 8xTC for PCS 7). Its key differentiator is its native optimization for the Experion PKS environment, including seamless integration with Control Builder for configuration, unified alarm management, and direct data historization. Compared to using universal analog input modules with external transmitters, the HONEYWELL CC-PAIX01 offers superior accuracy for T/C signals, integrated diagnostics specific to thermocouples, and a more streamlined engineering workflow.

Selection Suggestions and Important Precautions

1. Verify Thermocouple Type Compatibility: Confirm that the specific thermocouple types (J, K, S, etc.) used in your process are supported and correctly configured in the HONEYWELL CC-PAIX01 module’s software settings.
2. Use Correct Thermocouple Extension Wire: Always use the proper, matched thermocouple extension wire (of the same type as the sensor) from the field junction box to the module terminals. Using incorrect wire (e.g., copper) will introduce measurement errors.
3. Ensure Proper Cold Junction Compensation: The module’s built-in CJC sensor must be in a stable thermal environment. Avoid mounting the I/O rack in locations with rapid temperature swings or direct airflow on the module terminals.
4. Implement Noise Mitigation: For thermocouple runs in areas of high electromagnetic interference, use shielded, twisted-pair thermocouple wire and ensure the shield is grounded at only one point, typically at the DCS cabinet.
5. Calibration and Loop Checking: Regularly calibrate the temperature loop using a precision thermocouple simulator. Perform open-circuit (broken wire) simulation tests to verify the HONEYWELL CC-PAIX01‘s diagnostics are functional. Always procure this critical component from authorized Honeywell distributors. During configuration, carefully set the temperature range and engineering units to match the process requirements and ensure correct alarm setpoints. Document all channel configurations thoroughly.
