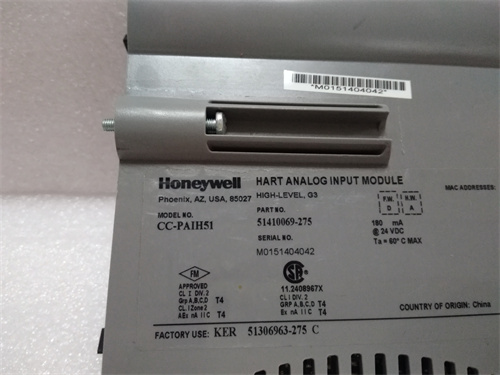

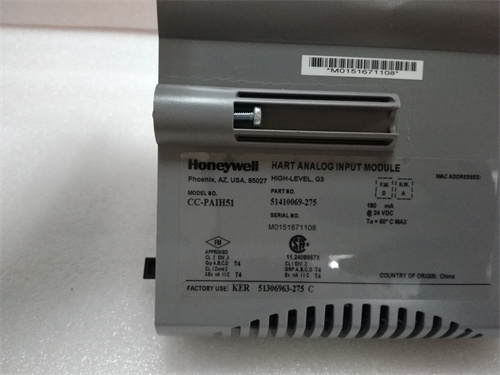

HONEYWELL CC-PAIH51

Description

1. Product Overview

2. Product Parameters

2.1 Core Input Specifications

• Input Channels: 16 isolated HART analog input channels (4-20mA DC current loop, HART 5/7 compliant)
• Input Range: 4-20mA DC (configurable for 0-20mA DC via software); HART communication over 4-20mA loop
• Resolution: 16-bit (ADC conversion, 0.00125% of full scale)
• Accuracy: ±0.025% of full scale (20mA) at 25°C; ±0.05% of full scale over operating temperature range (-40°C to +70°C)
• Isolation Rating: 1500V AC channel-to-channel, 3000V AC channel-to-ground (reinforced isolation per IEC 61010)
• Response Time: ≤50ms (90% step response for analog signal); HART communication baud rate 1200 bps
• Input Impedance: 250Ω (nominal, for 4-20mA loop completion + HART signal detection)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (from Honeywell DCS backplane), power consumption ≤15W
• Backplane Interface: Honeywell Experion PKS/TPS I/O bus (compatible with C200/C300 controllers, I/O Linking Modules)

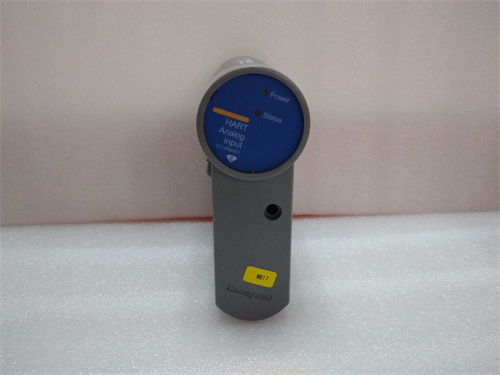

• Diagnostic Features: HART device health monitoring (fault codes, calibration status), open-loop detection, overrange/underrange alerts, channel-level fault indication, LED status indicators (power, OK, fault, HART activity)
• Configuration: Software-configurable via Honeywell Experion Engineering Environment (EE) or Control Builder; supports HART DD (Device Description) files and FDT/DTM integration
• Compatibility: Honeywell Experion PKS R400+/TPS V10+, HART 5/7 smart transmitters/sensors from major manufacturers (Rosemount, Endress+Hauser, Yokogawa, Honeywell STT850)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, X/Y/Z axes)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Mounting: Honeywell Experion PKS/TPS I/O chassis (HC900, I/O Rack 14-slot), hot-swappable (with chassis power on)
• Dimensions: 102mm (W) × 165mm (H) × 229mm (D), Honeywell DCS standard form factor

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL Class 1 Div 2 (Hazardous Locations, Class I, Div 2, Groups A/B/C/D), ATEX Zone 2, IEC 61508 SIL 2 (Safety Integrity Level), RoHS
• Compatibility: HART 5/7 protocol standards, Honeywell Experion PKS/TPS DCS, 4-20mA HART smart field devices
• MTBF: ≥1,200,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Bi-Directional HART Communication: HONEYWELL CC-PAIH51 enables remote configuration, calibration, and predictive diagnostics of HART smart devices, eliminating on-site maintenance visits and reducing operational costs by up to 35% compared to non-HART analog modules.
2. Industry-Leading Accuracy: ±0.025% full-scale accuracy and 16-bit resolution ensure HONEYWELL CC-PAIH51 delivers ultra-precise analog data for critical processes (e.g., LNG cryogenic temperature control), minimizing measurement error and improving process stability.
3. Enhanced Isolation & Immunity: 3000V AC channel-to-ground isolation and EMI/RFI filtering (per EN 61326) protect HONEYWELL CC-PAIH51 from electrical interference in harsh industrial environments (e.g., refineries with high-voltage equipment), ensuring signal integrity.
4. Hot-Swappable Design: HONEYWELL CC-PAIH51 can be replaced in a live Experion DCS chassis without system shutdown, reducing maintenance downtime for 24/7 operations like power generation plants or chemical refineries.
5. SIL 2 Compliance: Certified to IEC 61508 SIL 2, HONEYWELL CC-PAIH51 meets safety requirements for critical process control applications (e.g., emergency shutdown systems), enhancing plant safety and regulatory compliance.

4. Application Fields & Cases

4.1 Application Fields

• Oil & Gas: Refinery HART pressure/temperature transmitter monitoring, LNG plant cryogenic sensor input, pipeline HART flow meter diagnostics
• Chemical Manufacturing: Reactor HART pH/level transmitter input, batch process HART mass flow meter monitoring, polymer production temperature control
• Power Generation: Gas turbine HART vibration/fuel flow sensor input, boiler HART water level transmitter monitoring, nuclear power plant auxiliary system control
• Pulp & Paper: Paper machine HART moisture sensor input, digester HART pressure transmitter monitoring, wastewater treatment HART level control

4.2 Typical Cases

1. LNG Plant Cryogenic Monitoring: A Qatari LNG plant deployed HONEYWELL CC-PAIH51 modules in Experion PKS DCS to monitor 128 HART cryogenic temperature transmitters (-162°C) across liquefaction trains. The module’s ±0.025% accuracy ensured precise temperature control, reducing LNG loss by 1.5% and improving plant efficiency.
2. Chemical Plant Predictive Maintenance: A European petrochemical plant used HONEYWELL CC-PAIH51 to connect 256 HART pressure transmitters in reactor units. Bi-directional HART communication enabled remote diagnostics, detecting transmitter drift 2 weeks before failure and reducing unplanned downtime by 30%.
3. Gas Turbine Power Plant Control: A U.S. combined-cycle power plant integrated HONEYWELL CC-PAIH51 into Experion PKS to acquire HART fuel flow and exhaust temperature sensor inputs for 6 gas turbines. SIL 2 compliance met safety regulations, while hot-swappable design allowed module maintenance during peak power demand.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Smart HART Device Integration: Choose HONEYWELL CC-PAIH51 for applications with HART 5/7 smart transmitters/sensors—its bi-directional HART communication and DD file support enable full device management, unlike basic HART modules.
2. High-Precision Process Control: Opt for HONEYWELL CC-PAIH51 for critical applications (e.g., LNG, nuclear power) requiring ±0.025% accuracy and SIL 2 compliance—standard AI modules lack the precision and safety certification.
3. Honeywell Experion Compatibility: Select HONEYWELL CC-PAIH51 for Experion PKS/TPS DCS installations; third-party modules may require custom drivers and lack native diagnostic integration.

6.2 Precautions

1. Installation Guidelines:
   • Install HONEYWELL CC-PAIH51 in Honeywell Experion I/O chassis only (HC900/14-slot rack); ensure proper backplane termination and chassis grounding to maintain isolation and EMI immunity.
   • Use shielded twisted-pair cables for HART 4-20mA inputs (maximum distance 1000m) and ground the cable shield at the field device end (single-point grounding) to prevent ground loops and HART signal interference.
2. Configuration Notes:
   • Load HART DD files or DTMs for connected smart devices via Experion Engineering Environment—missing device descriptions will limit HART diagnostics and configuration capabilities.
   • Configure HART polling rates (1-10 seconds) based on process criticality; higher polling rates (1 second) are recommended for safety-related devices (e.g., emergency shutdown sensors).
3. Troubleshooting:
   • For missing HART data (analog signal present): Verify HART address configuration (1-15), check loop resistance (250-600Ω for HART communication), and ensure field devices are HART 5/7 compliant.
   • For inaccurate analog readings: Inspect for EMI/RFI sources (e.g., VFDs, high-voltage cables) near input wiring, check cable shielding integrity, and recalibrate the module via Experion EE if needed.
4. Maintenance:
   • Inspect module connectors quarterly (especially in vibration-prone areas) to prevent loose terminals and signal drift—critical for HART communication stability and accuracy.
   • Backup module configuration (including HART device settings) to Experion DCS database for rapid replacement in case of failure.
   • Stock spare HONEYWELL CC-PAIH51 modules—lead times for Honeywell DCS components may exceed 12 weeks for SIL 2/certified units.
