HONEYWELL CC-IP0101 51410056-175

Description

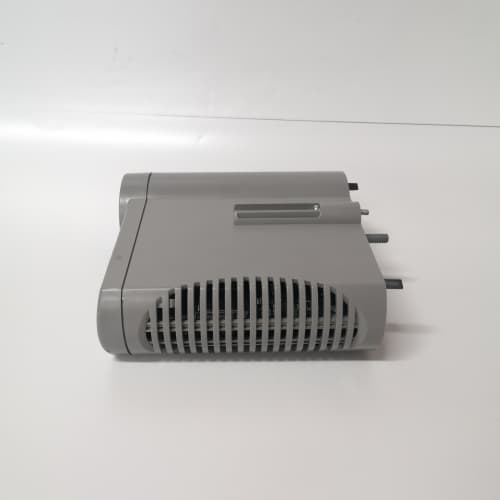

HONEYWELL CC-IP0101 51410056-175 is a communication or interface module, most likely an Ethernet IP communication card or network interface module for Honeywell’s control systems, such as the Experion Process Knowledge System (PKS) or older Honeywell PLC platforms. This module, CC-IP0101, with a specific assembly/part number 51410056-175, enables connectivity between the control system and plant networks using the Ethernet/IP or standard TCP/IP protocol. Detailed specifications can be found on the product page: HONEYWELL CC-IP0101 51410056-175. The HONEYWELL CC-IP0101 module is essential for network integration, remote access, and data exchange in modern industrial automation architectures.

Product Description

The HONEYWELL CC-IP0101 is a specialized hardware card designed to be installed in a designated slot within a Honeywell controller chassis, such as a C300 Process Controller or a specific I/O chassis in the Experion system. Its primary function is to provide a high-performance Ethernet interface, allowing the control system to participate in a plant’s local area network (LAN). The module facilitates critical functions such as communication with operator workstations (HMI), engineering stations, other controllers, and enterprise-level systems for data historian access. It handles the translation of control system data into standard Ethernet packets and vice-versa. The HONEYWELL CC-IP0101 51410056-175 is a key component for enabling the open, networked connectivity required for contemporary process control and Industry 4.0 applications.

Product Parameters

• Brand and Manufacturer: HONEYWELL.
• Product Type: Ethernet Communication Module / Network Interface Card (NIC).
• Compatible System: Designed for specific Honeywell controllers (e.g., Experion C300 Controller, or chassis for Series 9000 PLCs).
• Network Protocol: Supports standard IEEE 802.3 Ethernet (10/100/1000 Mbps) and likely implements the Ethernet/IP industrial protocol stack for device-level communication.
• Physical Interface: One or more RJ-45 ports for twisted-pair cable connection.
• Function: Enables FTP transfers, supports Control Data Access (CDA) for HMI communication, allows for controller redundancy synchronization over network, and facilitates communication with other network nodes.
• LED Indicators: Status LEDs for power, link/activity, network speed, and fault conditions.
• Power Consumption: Draws power from the controller chassis backplane.
• Certifications: May have industrial certifications for noise immunity and temperature range.

Advantages and Features

The primary advantage of the HONEYWELL CC-IP0101 is its native, high-performance integration with Honeywell’s control environment, ensuring reliable and deterministic communication that is fully supported and validated by the system software. It eliminates the need for external gateways or converters for basic network connectivity. Key features include support for high-speed data exchange, which is crucial for large systems with high I/O counts and fast control loops. The module’s design ensures robust operation in electrically noisy plant environments. It enables features like remote diagnostics, firmware updates over the network, and seamless integration with Honeywell’s Experion station software. Using the genuine HONEYWELL CC-IP0101 module guarantees communication stability and access to Honeywell’s technical support.

Application Cases in Various Fields

• Experion PKS Controller Connectivity: Providing the Ethernet link for a C300 controller in a refinery or chemical plant to communicate with Experion Operator Stations and Engineering Stations.
• PLC Network Integration: Enabling a Honeywell MasterLogic or Series 9000 PLC to communicate on a plant-wide EtherNet/IP network for data collection and supervisory control.
• Data Historian Interface: Allowing process data from controllers to be efficiently collected by a plant historian server (like Honeywell PHD) over the standard Ethernet backbone.
• Remote I/O Network Communication: Serving as the communication interface for a remote I/O chassis to connect back to a central controller over an Ethernet link.
• System Redundancy: Facilitating the high-speed synchronization of data between redundant controller pairs over a dedicated network link.

Comparison with Competing Products

The HONEYWELL CC-IP0101 does not have direct competitors in the open market, as it is a proprietary component for Honeywell systems. Its functional equivalents are the embedded Ethernet modules in other vendors’ controllers (e.g., Emerson’s DeltaV CHARMs, Siemens’ SIMATIC CP 443-1, or Rockwell’s 1756-ENBT/EN2T). The comparison is thus at the system architecture level. The CC-IP0101 is optimized for the Honeywell ecosystem, offering plug-and-play configuration within Experion and guaranteed performance. Choosing a third-party alternative is not an option; the selection is between using this module or selecting a different control system platform entirely.

Selection Suggestions and Precautions

1. Verify Controller Compatibility: This is the most critical step. Confirm that the CC-IP0101 module is listed as compatible with your specific Honeywell controller model, chassis type, and firmware version. The assembly number 51410056-175 must match the required part.
2. Understand Network Topology: Plan the network architecture (IP addressing, subnetting, switch requirements) before installation. The module will need a unique IP address configured.
3. Follow ESD and Installation Procedures: Handle the card as an ESD-sensitive device. Install it in the correct slot as specified in the controller’s hardware installation manual.
4. Configure Software Correctly: The module must be correctly configured within the Honeywell control system’s engineering software (e.g., Experion Engineering Studio) to define its IP address and communication parameters.
5. Use Industrial-Grade Network Infrastructure: Connect the module to managed industrial Ethernet switches designed for plant floor conditions, not commercial office-grade switches.
