HONEYWELL 8C-PCNT02 | Experion C300 I/O – Pulse Counter Module

Description

Product Introduction

The flow meter says 1,200 gallons. The DCS says 1,050. The batch recipe is wrong. The operator blames the meter. You know it’s the pulse counter.

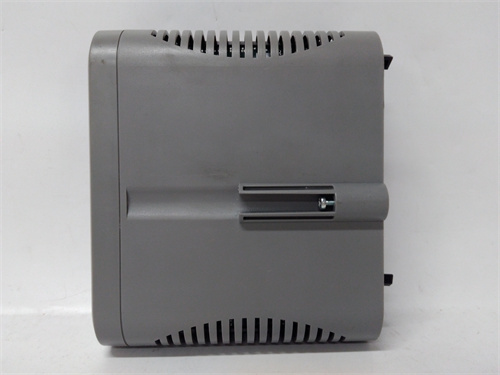

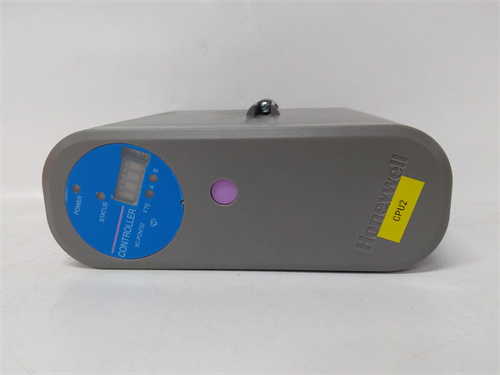

The HONEYWELL 8C-PCNT02 is the eight‑channel pulse input module for the Experion C Series I/O system. It takes 24 VDC pulses from turbine meters, encoder wheels, or frequency transmitters and turns them into engineering units the C300 controller can use. 10 kHz per channel. Programmable scaling. Built‑in diagnostics.

I’ve used these in custody transfer skids, flow totals in refineries, and speed feedback on conveyors. The module is accurate when it’s new. The drift is minimal. The failure mode is usually input channel death—lightning hit, miswired 120 VAC, or a sensor that shorted the input. The fix is a board swap. The terminal block stays. Five minutes, if the spare is on the shelf.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Pulse counters fail in two ways: missed counts or dead channels. We test for both.

1. Incoming Verification
   This batch came from a Honeywell authorized distributor’s final C Series stock. Sealed boxes. Serial numbers traceable to 2017–2019 production.
2. Visual Inspection

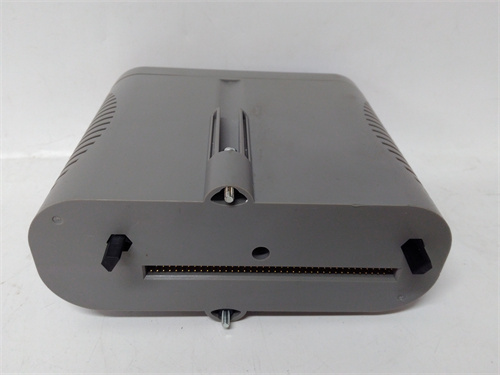

   First: terminal block pins. Any bent pins are a reject. Next: the bottom edge connector—gold fingers should be bright, no scoring. Also check the input side for any burn marks. That’s where lightning hits.
3. Live Functional Test
   We test the 8C-PCNT02 in a C Series test rack with a C300 controller and a precision pulse generator. Procedure:
   • Power‑up: verify module OK LED solid green
   • Channel 1: apply 100 Hz pulse, verify count matches generator
   • Channel 1: apply 10 kHz pulse, verify count matches
   • All 8 channels: apply 1 kHz simultaneously, verify counts match
   • Scaling test: set channel 1 to 100 pulses per gallon, verify engineering units
   • Soak test: run all 8 channels at 5 kHz for 1 hour, monitor for missed counts
4. Over‑range Test
   Apply 15 kHz to a channel. Verify the module flags an over‑range error. Counts should max at the 10 kHz limit.
5. Final QC & Packaging
   Passed modules go back in anti‑static bags, then bubble wrap, then a carton with QC sticker showing test date, frequency accuracy, and soak test results.

Field Replacement Pitfalls

Pulse inputs are sensitive. Here’s where field techs get burned.

1. Input type mismatch.
   The 8C-PCNT02 can take NPN or PNP inputs. The configuration is in software, not jumpers. If you plug it in and it doesn’t see the pulses, check the config. I’ve seen a plant swap three modules before they realized the sensor was PNP and the channel was set for NPN. Check the sensor type first.
2. ❌ Frequency too high.
   The module is rated for 10 kHz. That’s 10,000 pulses per second. If your flow meter puts out 15 kHz at full flow, the module will miss counts. The reading will be low. The operator will blame the meter. The meter is fine. Check the max frequency before you spec the module.
3. Noise on the input line.
   Pulse inputs are prone to noise. If the wire runs near a VFD or motor starter, you’ll get extra counts. The module has a configurable debounce filter, but it can only do so much. I’ve seen a plant with phantom counts that added 5% to the total every shift. The fix was shielded cable and a filter. The module was fine.
4. Field supply voltage drop.
   The inputs need 24 VDC. If the sensor is 500 feet away, voltage drop can drop the pulse amplitude below the threshold. The module will see some pulses and miss others. The reading will be erratic. I’ve seen this on a custody transfer skid. The fix was moving the module closer to the meter.
5. Terminal block pins.
   The removable terminal block is convenient. It’s also the weak point. I’ve seen a channel that worked fine for a year, then started missing counts. The pin had loosened. The fix was reseating the terminal block. The module was fine.

Get these five right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this HONEYWELL 8C-PCNT02 was built by Honeywell, never installed, and never repaired. The input circuits are fresh. The terminal block pins are straight. The internal oscillator hasn’t drifted.

Refurbished pulse counter modules are risky. The input conditioning circuits are sensitive. A refurb module might have been in a plant where it got hit by lightning—it still works, but the input threshold is off. I’ve seen a refurb module that passed a 1 kHz test but failed at 8 kHz. The internal comparator was marginal. The field team spent a week chasing the “intermittent meter” before they found the module.

What we provide:

• Traceable serial number (matches Honeywell production records)
• 8‑channel frequency test (100 Hz, 1 kHz, 5 kHz, 10 kHz)
• Simultaneous 1 kHz test on all channels
• 1‑hour soak test at 5 kHz
• Input threshold measurement (should be 12–15 V)
• Original anti‑static bag (if available) or fresh bag with QC seal
• 12‑month warranty

Pricing context:
Our price sits above the cheapest used listings. It’s also below what a new module would cost from Honeywell. You’re paying for the test, the warranty, and the certainty that the counter isn’t missing pulses.

Performance Benchmarks & Test Results

All tests performed on C Series test rack with C300 controller, 24 VDC field supply, 25 °C ambient.

Thermal performance note:
At 60 °C ambient, the input threshold drifts up to 15.5 V. That’s still within spec, but if your pulse amplitude is marginal (say, 14 V), the module may start missing counts. Keep your field supply clean and keep the cabinet cool. The module will be fine.

One more thing from the field:
The 8C-PCNT02 has a small test point on the front edge—TP1. It’s the 5 V reference for the input comparators. If you’re seeing missed counts and the input amplitude is good, probe TP1. Should be 5.0 ±0.1 V. If it’s low, the internal regulator is failing. Swap the module. I’ve seen that save a plant from buying a new flow meter they didn’t need.
